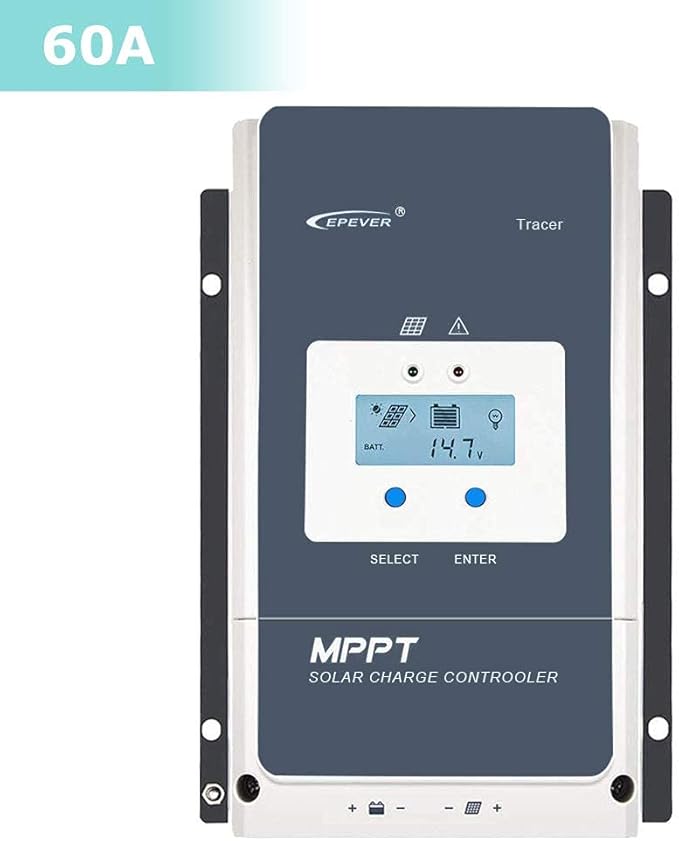

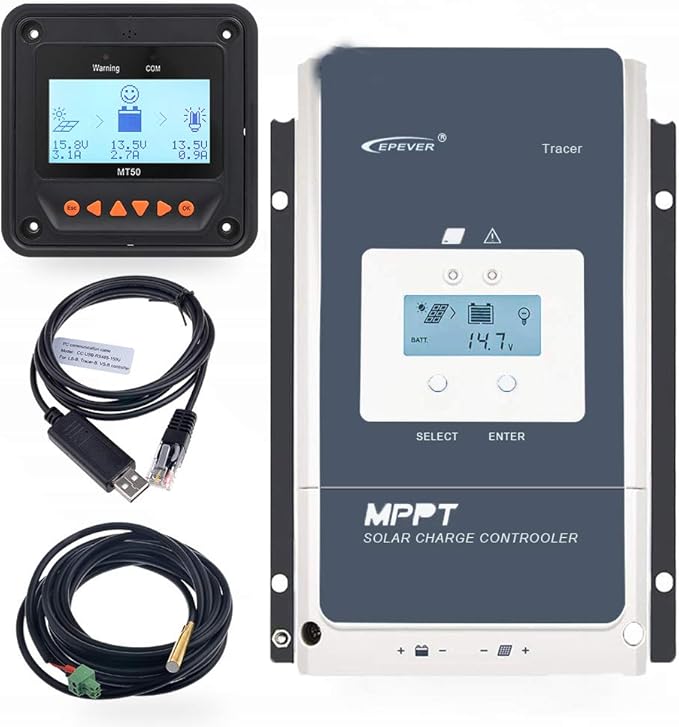

EPEVER 60A MPPT Solar Charge Controller 12/24/36/48VDC Automatically Identifying System Voltage with MT52 Remote Meter & Temperature Sensor RTS & Communication Cable RS485

- ?Tracer-AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability and high industrial standard. - ?Tracer6415AN MPPT charge controller automatically identifying 12/24/36/48VDC system voltage.Rated charging/discharging current 60A. Maximum PV input power 750W/12V 1500W/24V 2250W/36V 3000W/48V. Maximum PV open circuit voltage 150V. Common negative ground design. - ?The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customer to expand the application. - ?The remote temperature sensor RTS and the voltage sensor design will collect accurate data of battery temperature and voltage. - ?EPEVER Tracer-AN series support PC software, APP and MT-52 to monitor or set the parameters. Compatible with various battery options: Sealed, Gel, Flooded and Lithium.

Product description

Tracer AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability, and high industrial standard. MSRT can very high conversion efficiency in any charge power, which sharply improves the energy efficiency of solar system; Advanced MPPT control algorithm minimize the maximum power point loss rate and loss time, to ensure the tracking efficiency, corresponding speed as well as high conversion efficiency under high or low power, so that in any situation, Tracer AN products can rapidly track the maximum power point(MPP) of PV array to obtain the maximum energy of the panel. The limitation function of the charging power and current, and automatic power reduction function fully ensure the stability when works with oversize PV modules and operate under high temperature environment.

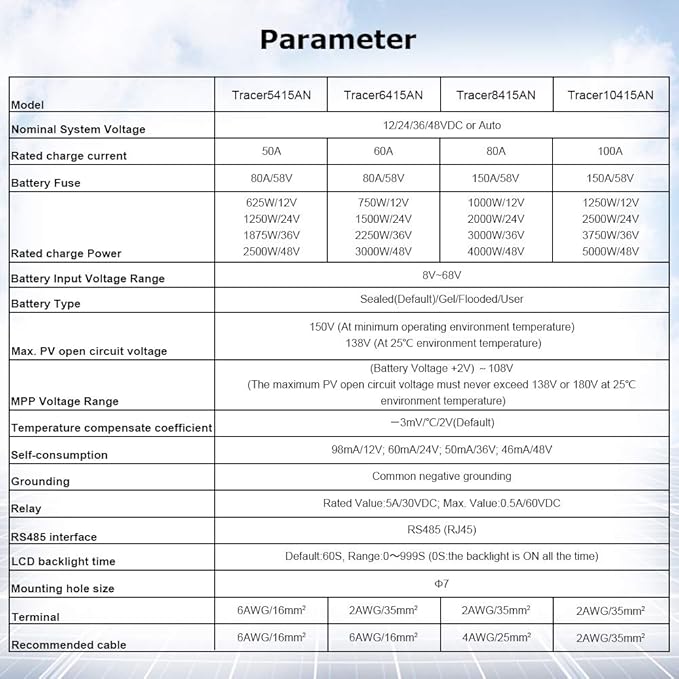

Rated charge current: 60A

Battery voltage range: 8V~64V

MPPT Technology High Tracking Efficiency > 99%

Battery temperature compensation function

Monitor and set the parameters via mobile phone APP or PC software

Compatible with lead-acid and lithium-ion batteries

Compatible with lead-acid and lithium-ion batteries

Automatic identify and display the type, model and relevant parameter data of controllers.

Direct, convenient and rapid operation of six navigation function keys, Real-time display of failure information of the connection devices.

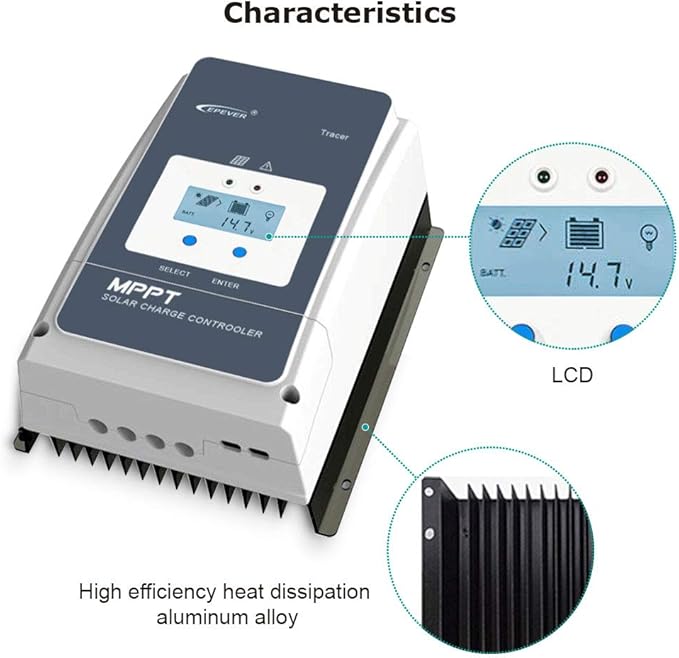

Real-time display the operational data and working status of the connection devices in digital, graphic and textual forms by a large-screen multifunction LCD.

The standard length of the cable is 3m.

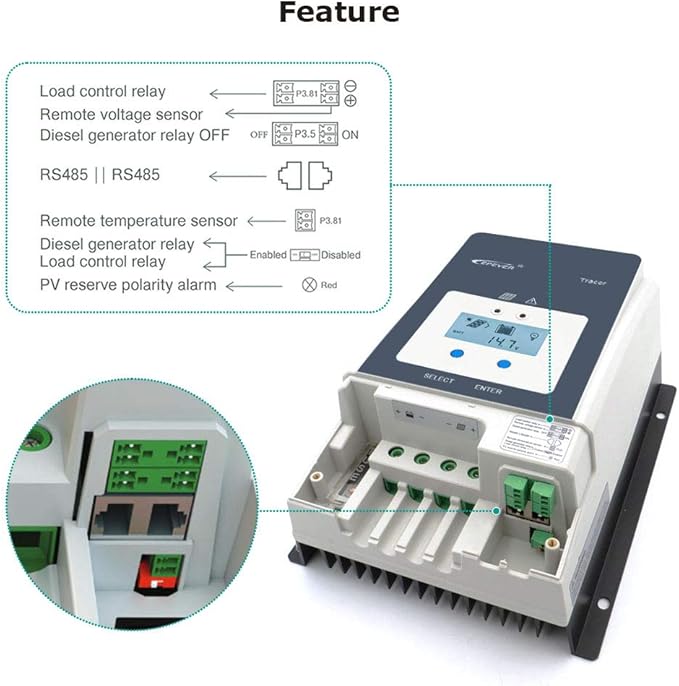

Acquisition of battery temperature for undertaking temperature compensation of control parameters,

NOTE: The temperature sensor short-circuited or damaged, the controller will be charging or discharging at the default temperature 25℃.

The standard length of the cable is 1.5M.

USB to RS-485 converter is used to monitor each controller on the network using Solar Station PC software.
