EPEVER 50A MPPT Solar Charge Controller 12V/24V/36V/48V DC Automatically Identifying System Voltage Max.PV 150V Solar Panel Regulator (Tracer 5415 an)

- MPPT solar charge controller advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%. High quality & low failure rate components of ST and Infineon to ensure the product's life. - With the adaptive three-stage charging mode based on digital control circuit, Tracer AN series controllers can effectively prolong the life-cycle of battery and significantly improve the system performance. The load, utility or generator auto-control relays make it easy to compose the hybrid power system. - All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection, effectively ensure the safer and more reliable operation of the solar system for a longer service time. It have battery temperature compensation function, real-time energy recording and statistical function, automatic over-temperature power reduction function. Hundred percent full load operation in working environment temperature range within charging & discharging. - Wide range of maximum power point operating voltage, improved photovoltaic module utilization, rated charging power & charging current double automatic limiting function. Support 4 charging options: Sealed, Gel, Flooded and User. - The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customer to expand the application, it support up to 8 charging in parallel to expand system and meet with different monitoring requirements, so that can be widely used for various applications, e.g. solar RV, household system and field monitoring etc.

Product description

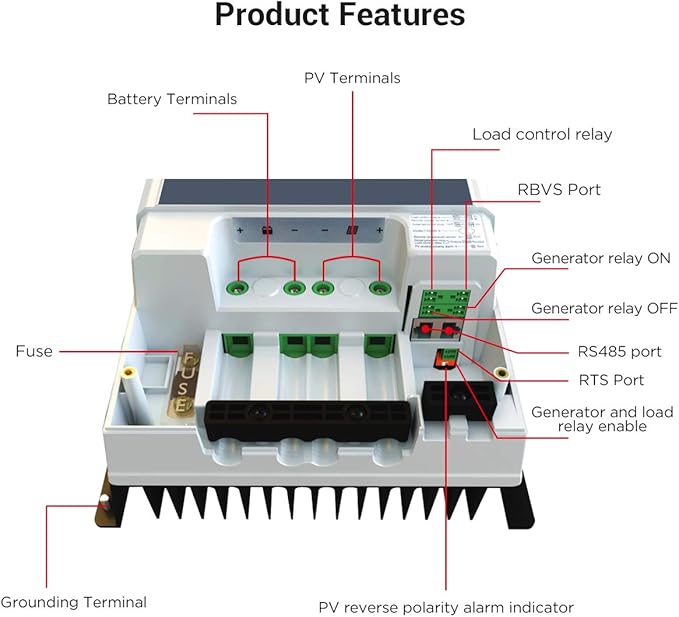

Features:

The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customer to expand the application

Ensure compatibility with any negative ground system, which is the standard and most conventional way of grounding

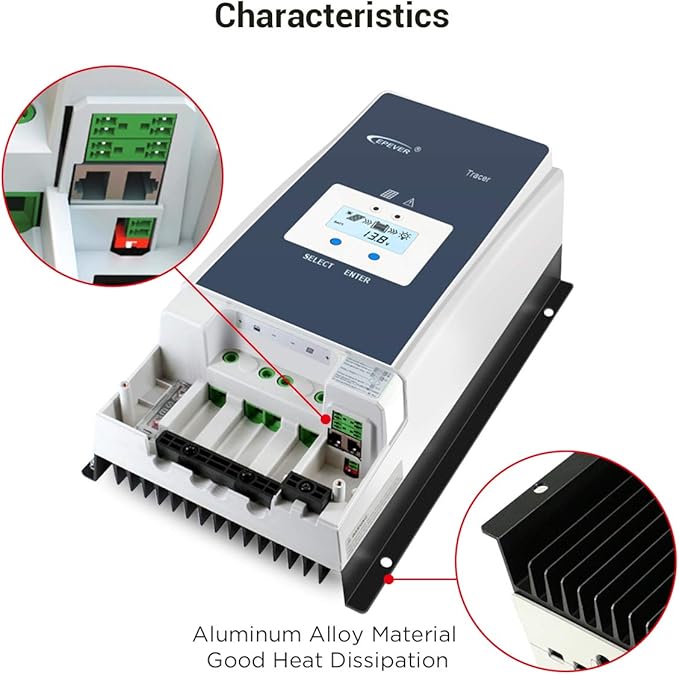

Made of aluminum alloy material good heat dissipation

Battery Type:

NOTICE

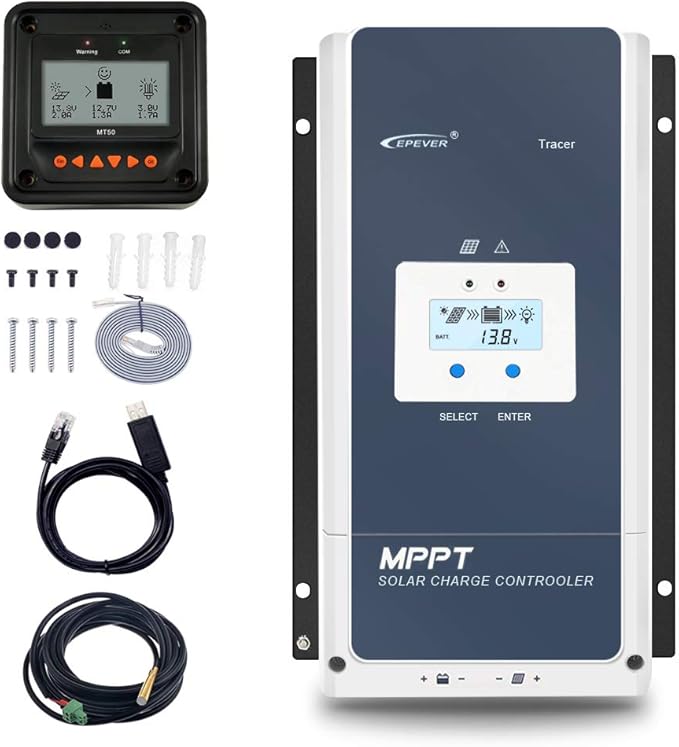

Package List:
