EPEVER 40A MPPT Solar Charge Controller 12V/24V Auto Working Max.PV 150V Solar Panel Charge Regulator Tracer BN Series Negative Ground Solar Controller

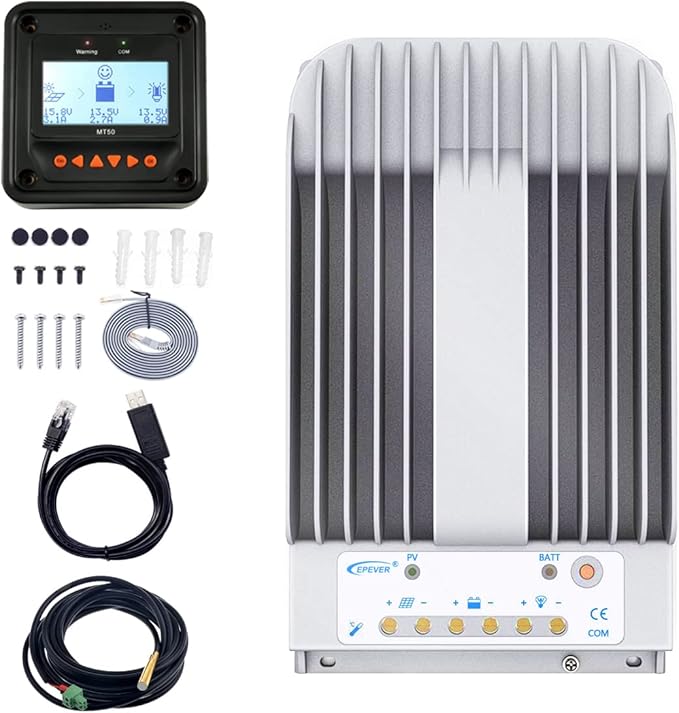

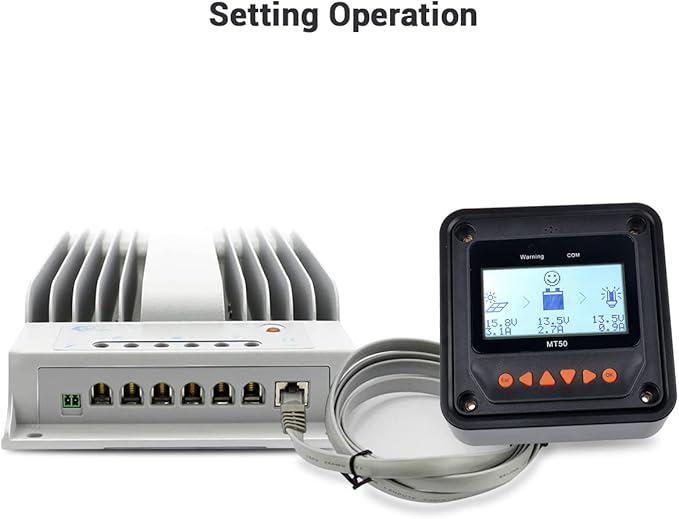

- 12/24VDC automatically identifying system voltage, 150V Max. PV Open Circuit Voltage. Die-cast aluminum design, ensuring excellent heat dissipation characteristic. - Advanced MPPT (maximum power point tracking) technology, tracking efficiency no less than 99.5%, maximum conversion efficiency of 98%. - Support 4 charging options: Sealed, Gel, Flooded and User. - Solar Panel Charge Regulator with RS485 interface , it can be monitored by cellphone APP(eBox required), PC Software and MT50 remote meter. available to meet various communication requirements in different situations. - MPPT Solar Regulator can be widely used for various applications, e.g. solar RV, household system and industrial field monitoring, etc.

Product description

1）Unplug the RTS, the temperature of battery will be set to a fixed value 25 ºC.

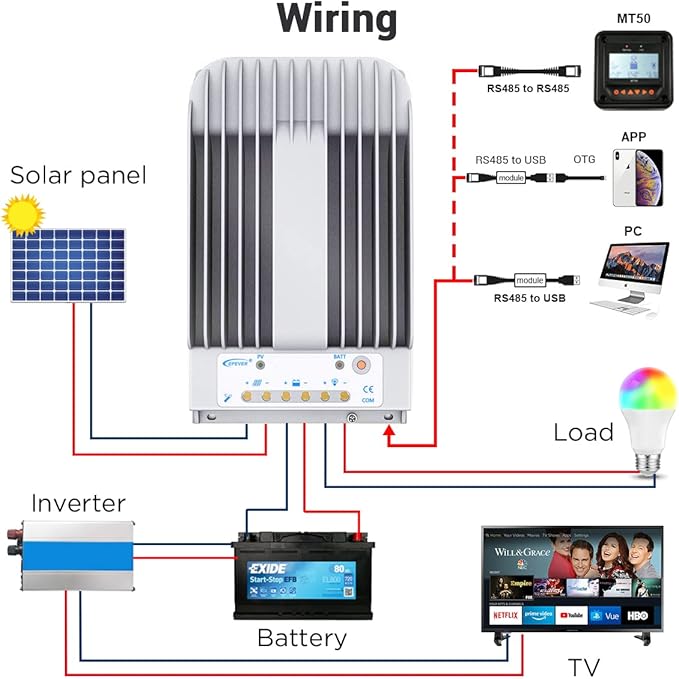

2）Please connect the inverter to the battery rather than to the controller, if the inverter is necessary.

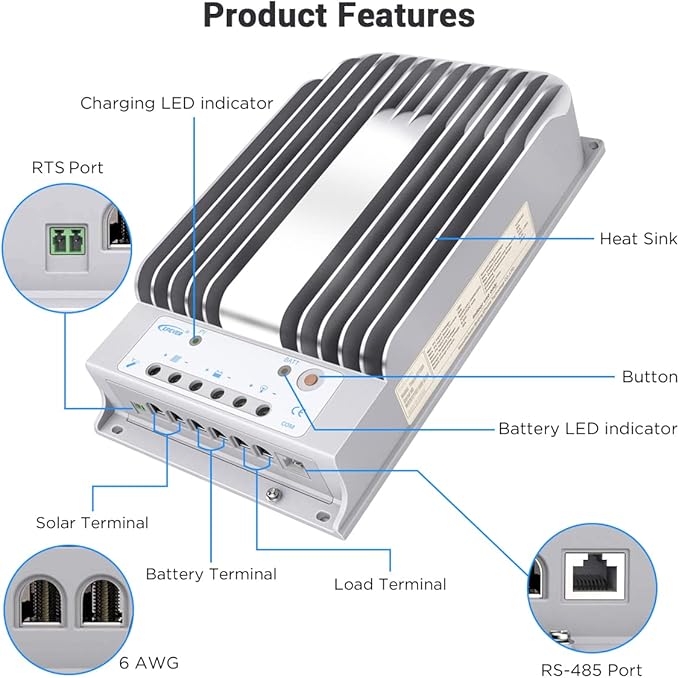

3）The RS-485 port and RTS port is not SELV circuit, it must have isolation between the port and the place where the end user can access directly.

Four methods to configure the controller:
