EPEVER 20A MPPT Solar Charge Controller 12/24VDC Automatically Identifying System Voltage with Backlight LCD Display Fit for Lead-Acid and Lithium Batteries

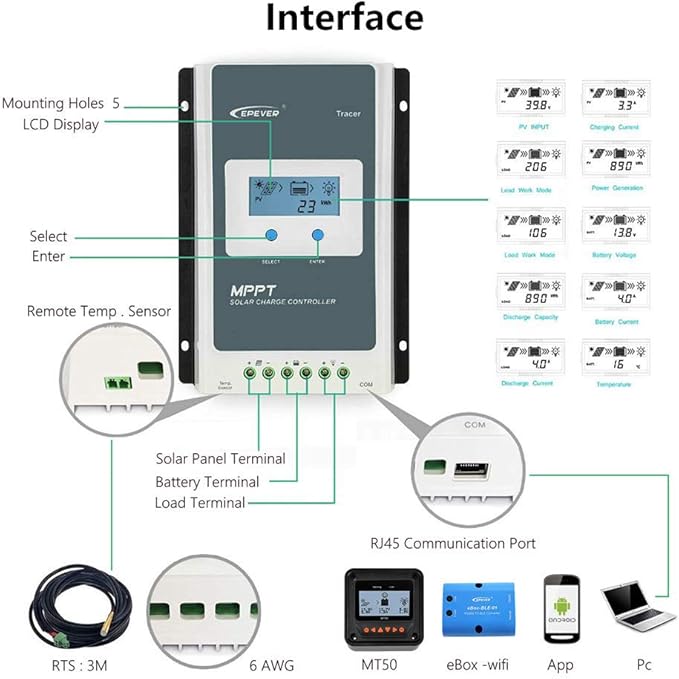

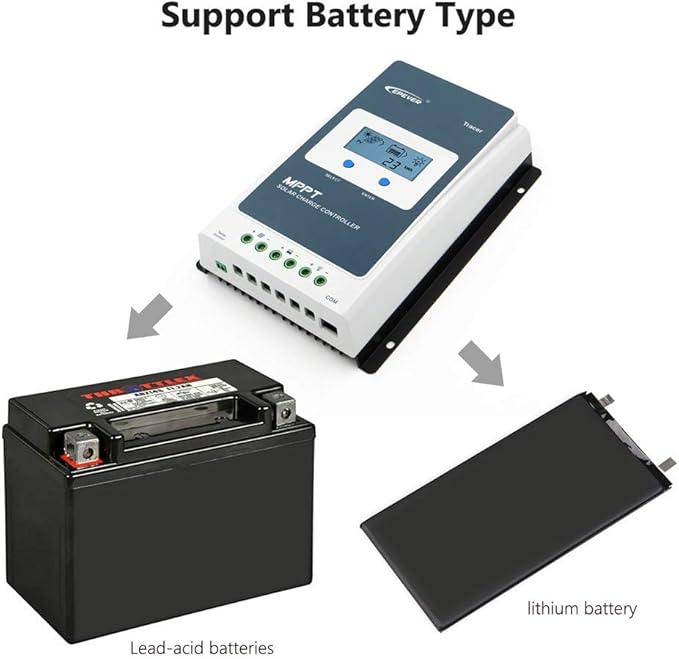

- ?EPever Tracer2210AN MPPT solar charge controller, rated charging and discharging current 20A, 12/24V DC automatically identifiying system voltage. Max PV open circuit voltage 100V, Max PV input power 260W/12V 520W/24V, common negative grounding. Compatible with Lead-acid and Lithium-ion Batteries. - ?Advanced MPPT technology, with efficiency no less than 99.5%. Ultra-fast tracking speed and high tracking efficiency, advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time; wide MPP operating voltage range. High quality components, perfect system performance, with maximum conversion efficiency of 98%. Accurate recognition and tracking of multiple-peaks maximum power point. - ?Standard Modbus communication protocol based on RS485 communication bus, extended communication distance. Monitor and set the parameters via mobile phone APP or PC software. The communication interface uses a dedicated power protection chip which can provide 5VDC 100mA power supply and has over-current short-circuit protection. - ?With the adaptive three-stage charging mode based on a digital control circuit, Tracer AN series controllers can effectively prolong the life-cycle of batteries, significantly improve the system performance. Backlight LCD screen display system information and working condition. - ?Support all-around electronic protection functions, including overcharging and over discharging protection to minimize damages to components of the system caused by incorrect installation or system failure at the utmost, and effectively ensure safer and more reliable operation of the solar power supply system for a longer service time.

Product description

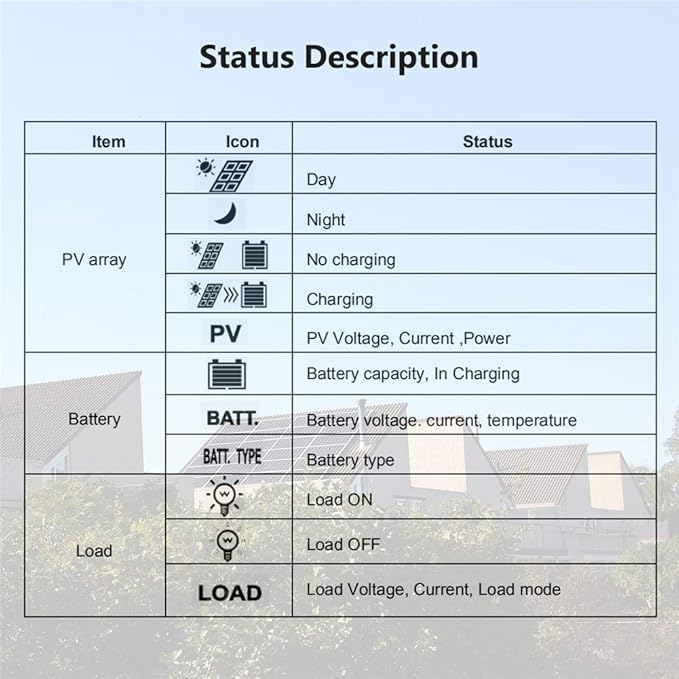

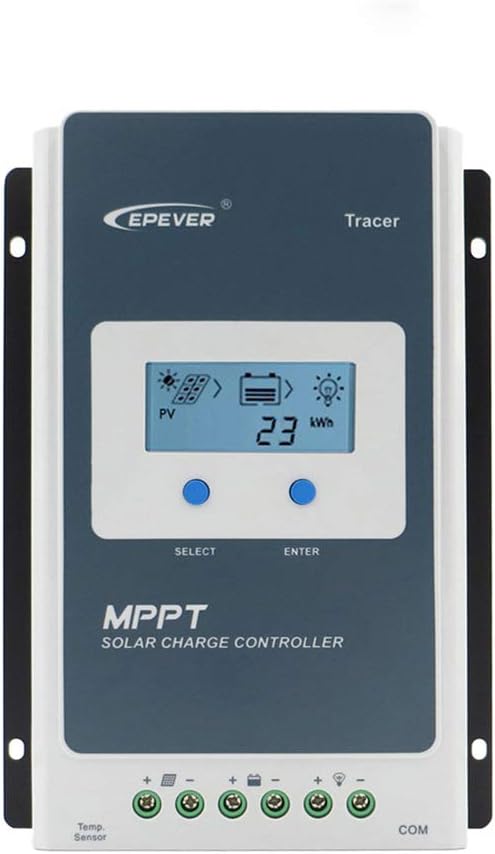

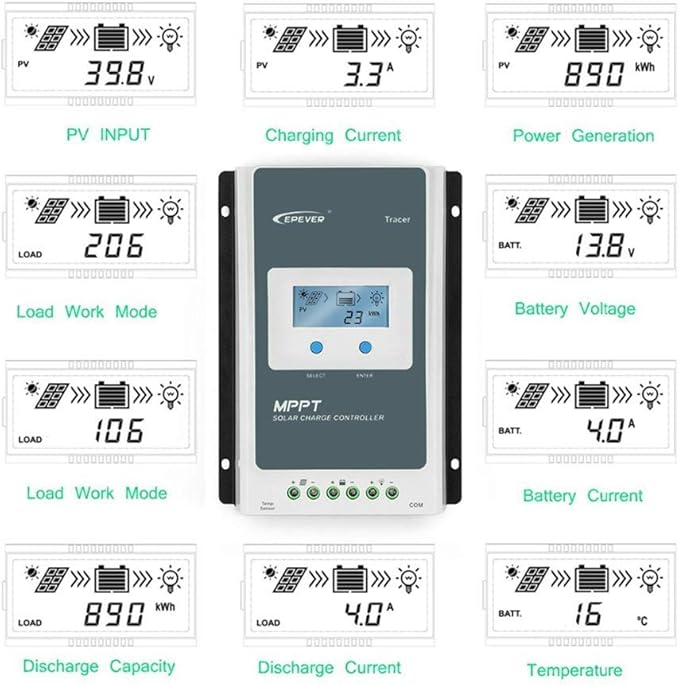

The Tracer AN series is based on common negative design and advanced MPPT control algorithm, with LCD displaying running status.

Improving the MPPT control algorithm further, Tracer AN series can minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by 10%-30% compared with a PWM charging method.

The limitation function of the charging power and current and reducing charging power function automatic improve the stability which works even connecting oversize PV modules and in high temperature, and increase the professional protection chip for the communication port, further improving the reliability and meeting the different application requirements.

With the adaptive three-stage charging mode based on a digital control circuit, Tracer AN series controllers can effectively prolong the life cycle of batteries, significantly improve the system performance and support all-around electronic protection functions, minimize damages to components of the system caused by incorrect installation or system failure at the utmost, and effectively ensure safer and more reliable operation of the solar power supply system for a longer service time.
