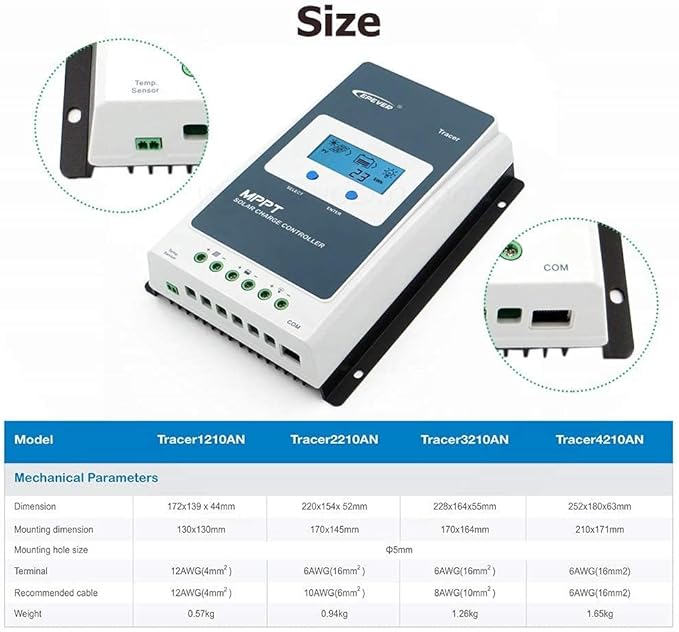

EPEVER 10A MPPT Solar Charge Controller 12/24V DC Tracer-an Series Charge Controller with MT52 Remote Meter &Temperature Sensor &RS485 fit for Lithium Sealed AGM Battery Charging Negative Gr

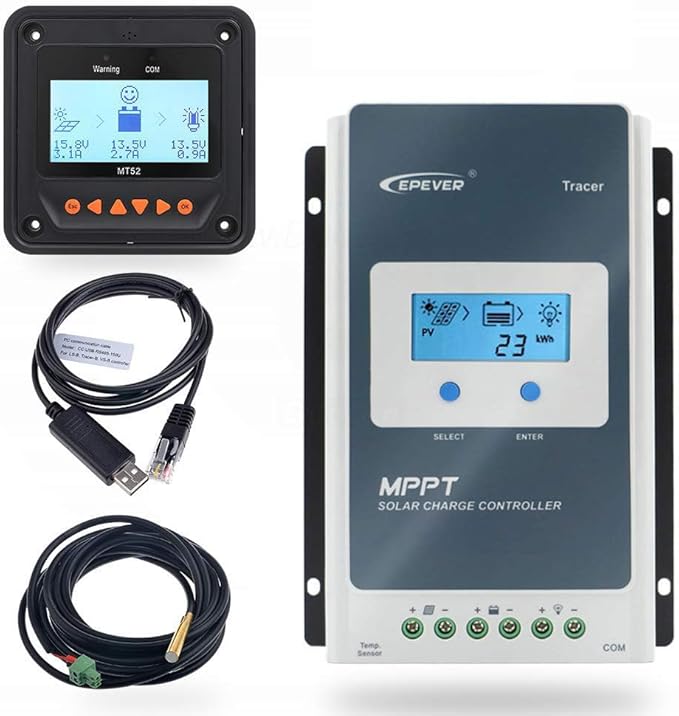

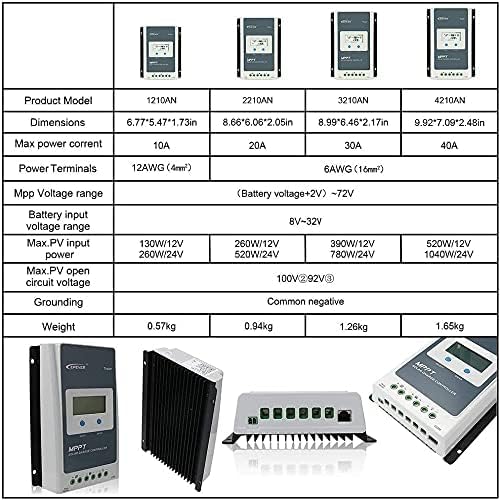

- ?Tracer1210AN solar charge controller automatically identifying 12/24VDC system voltage. Rated charge/discharge current: 10A. Maximum PV input power: 130W/12V; 260W/24V. Maximum PV open circuit voltage: 100V. Common negative ground design. - ?Advanced MPPT (Maximum Power Point Tracking) technology, with tracking efficiency no less than 99.5% and maximum conversion efficiency of 99%. Compatible with lead-acid and lithium-ion batteries. - ?MT52 realizes the real-time data monitoring, remote load switch, device parameters, charging control parameters, load control parameter data browsing and modification operations of the connected controller. - ?Through the RS485 cable, you can quickly connect monitoring equipment such as PC and MT52 to the controller to monitor the data and setting parameters of the solar charging system in real time. - ?Temperature Sensor RTS acquisition of battery temperature for undertaking temperature compensation of control parameters, the standard length of the cable is 3m.

Product description

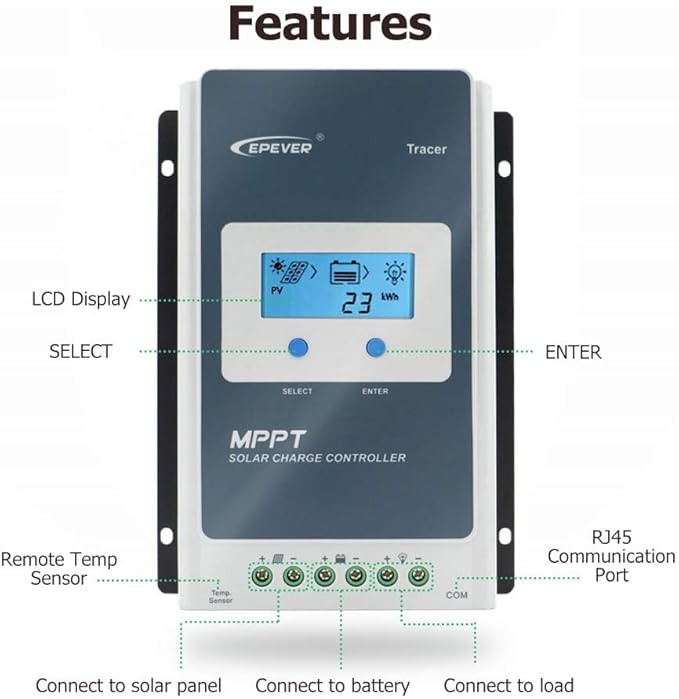

The Tracer AN series is based on common negative design and advanced MPPT control algorithm, with LCD displaying running status.

Improving the MPPT control algorithm further, Tracer AN series can minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by 10%-30% compared with a PWM charging method.

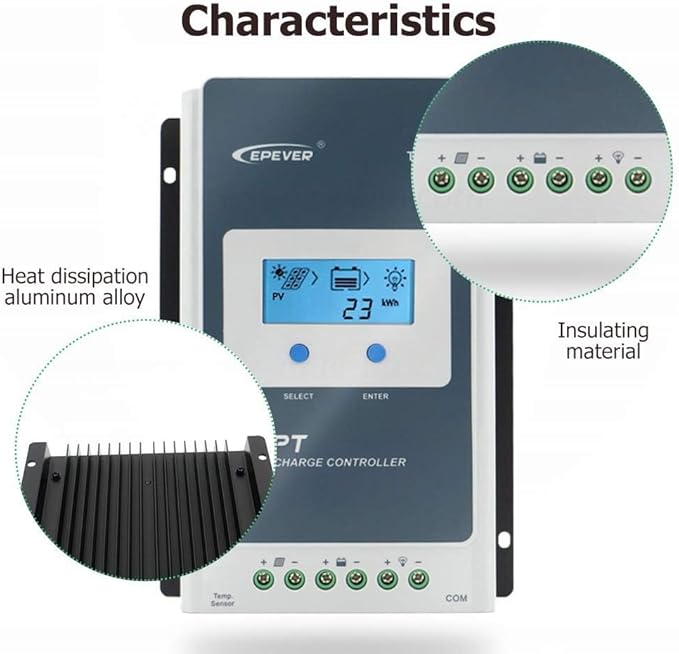

The limitation function of the charging power and current and reducing charging power function automatic improve the stability which works even connecting oversize PV modules and in high temperature, and increase the professional protection chip for the communication port, further improving the reliability and meeting the different application requirements.

With the adaptive three-stage charging mode based on a digital control circuit, Tracer AN series controllers can effectively prolong the life cycle of batteries, significantly improve the system performance and support all-around electronic protection functions, minimize damages to components of the system caused by incorrect installation or system failure at the utmost, and effectively ensure safer and more reliable operation of the solar power supply system for a longer service time.

Rated charge current:10A

Battery voltage range: 8V~32V

MPPT Technology High Tracking Efficiency > 99%

Battery temperature compensation functio

Monitor and set the parameters via mobile phone APP or PC software

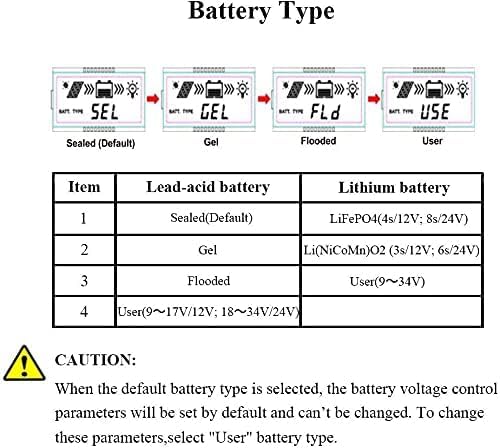

Compatible with lead-acid and lithium-ion batteries

Automatic identify and display the type, model and relevant parameter data of controllers.

Direct, convenient and rapid operation of six navigation function keys, Real-time display of failure information of the connection devices.

Real-time display the operational data and working status of the connection devices in digital, graphic and textual forms by a large-screen multifunction LCD.

The standard length of the cable is 3m.

Acquisition of battery temperature for undertaking temperature compensation of control parameters,

NOTE: The temperature sensor short-circuited or damaged, the controller will be charging or discharging at the default temperature 25℃.

The standard length of the cable is 1.5M.

USB to RS-485 converter is used to monitor each controller on the network using Solar Station PC software.
