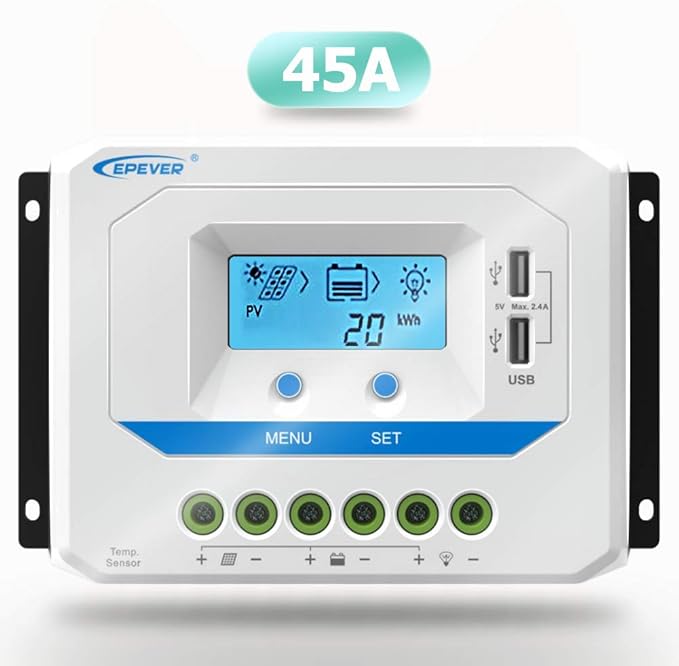

EPEVER® 45A Solar Charge Controller 12V/24V/36V/48V Auto Working PWM Solar Panel Charge Regulator with LCD Display and Powerful Dual USB Output

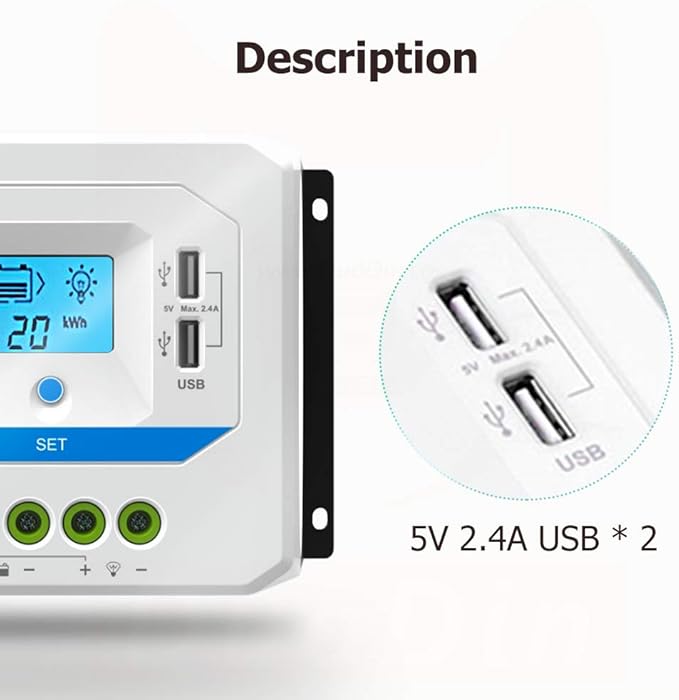

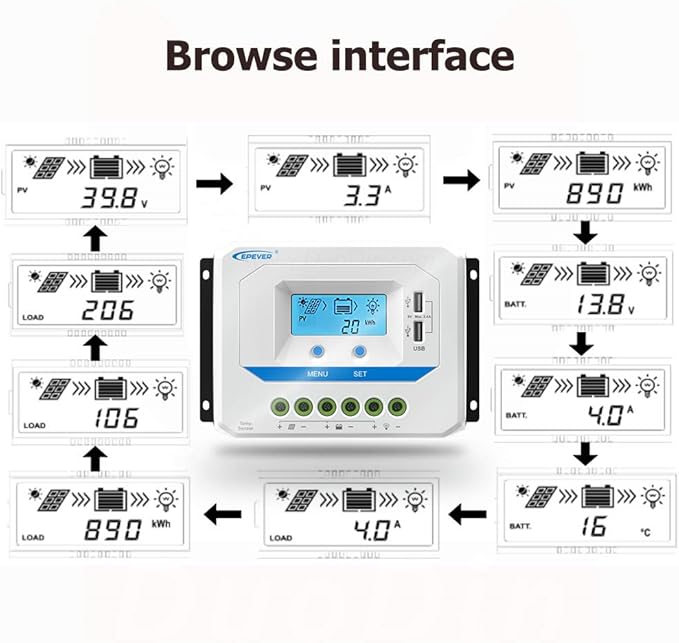

- 【High quality & Safety】Adopt high quality components of ST, IR and Infineon, terminals have UL and VDE certification, make sure product using lifespan, the product is more safer and more reliable. - 【LCD display】LCD display shows real time solar panel and battery performance, as well as an energy statistics counter, humanized button for more comfortable and convenient operation. - 【Double USB】Dual USB charging output offers fast and powerful charging of USB compatible devices such as mobile phones, tablets, mp3 players etc. - 【3-Stage】Support 3 charging options: Sealed, Gel, and Flooded; 3-Stage intelligent PWM charging: Bulk, Boost / Equalize, Float; Multiple Load mode: Light control, Light Time control, Dual Time control. - 【Multiple Protection】 PV Reverse Polarity, Battery Reverse Polarity, Battery Over Voltage, Battery Over Discharge, Battery Overheating, Load Short Circuit, Load Overload, Controller Overheating etc (Controller can work continuously at full load within the environment temperature range from -25 to 55 ℃).

Product description

The ViewStar AU series common positive solar charge controller with built in LCD display that adopts the most advanced digital technique.

The multiple load control modes enable it can be widely used on solar home system, traffic signal, solar street light, solar garden lamp, etc.

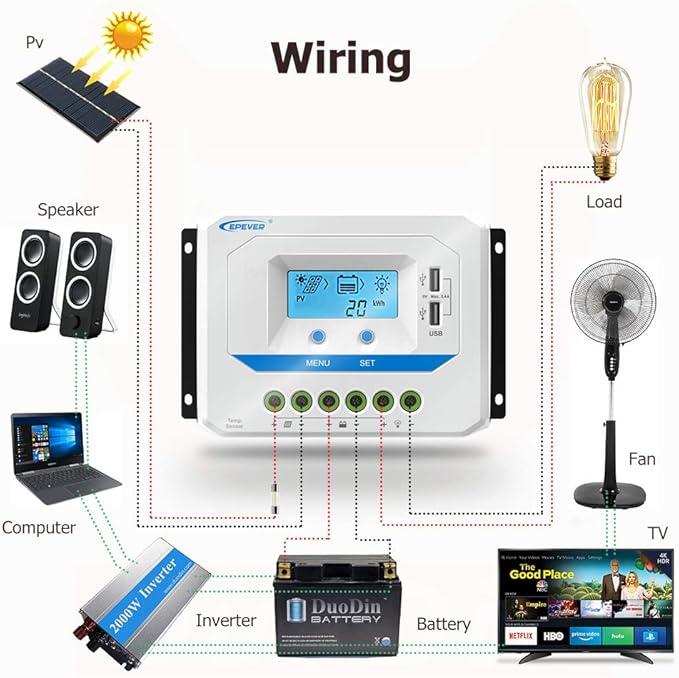

(1) Connect components to the charge controller in the sequence as shown above and pay much attention to the “+” and “-”. Please don’t insert the fuse or turn on the breaker during the installation. When disconnecting the system, the order will be reserved.

(2) After power on the controller, check the LCD on. Always connect the battery first, in order to allow the controller to recognize the system voltage.

(3) The battery fuse should be installed as close to battery as possible. The suggested distance is within 150mm.

(4) The VS AU series is a positive ground controller. Any positive connection of solar, load or battery can be earth grounded as required.

NOTE:

Please connect the inverter or other load that it has the large start current to the battery rather than to the controller, if the inverter or other load is necessary.

Package list：

1 x Solar Charge Controller

1 x User Manual
