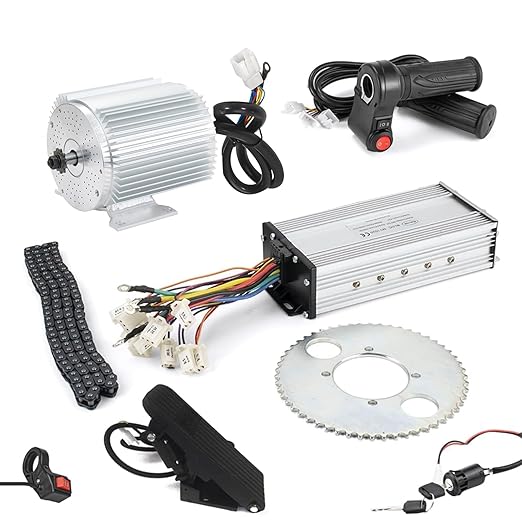

Electric Motor 1600W 48V Go Kart Electric Motor Kit with Throttle 33A Speed Controller BLDC ATV Kits Scooter Motorcycle Engine Scooter Chain T8F

- 【HIGH-SPEED POWERFUL MID MOTOR】- High Speed Brushless DC Motor Kits 1600W48V, Rated Speed No-load 3900rpm, Max can be 4500rpm, Motor Rated current 33A, The scooter motor is Smaller and Lighter Compared body Make More Power efficient, High Quality Aluminum Shell to be Sturdy and Reliable, Easy to Install for Go kart E-bike E-Scooter mini Motorcycle Quad atv and more. - 【Electric Gokart Motor HIGH EFFICIENCY】- Small Size, With high Torque High speed, BLDC Mid Drive Motor, and the Scooter Motor with Mounting Bracket is more easy to Install and Enough Carry, with wind cold hole, Motor Wiring length about 150cm(59inch)，Motor Weight about 3.3kg (7.3lb). - 【DC MOTOR KITS POSITIVE & NEGATIVE ROTATION】- BLDC Go kart Motor Can Through the Motor Reversing Wire or Handlebar reverse Switch To Let The Motor Go Clockwise or Counterclockwise, And with 3 Speed Function, Low speed 50%, Mid speed 70-80%,High Speed 100% Efficiency, But Don’t let the Motor Run Reverse Long Time, is Not safe for Motor Life. - ?【15Mosfet 33A Brushless Motor Controller】- The Motor Kit include 15MOS 33A±1A Speed Controller, BLDC Motor Controller with high Quality Material, is enough for the Motor, with Hall 3-Speed Reverse Throttle Charging e-Braking Power lock Light Functions etc. - 【E-scooter Motor Kit List and Useful】- 1600W BLDC Motor, Speed Controller, Handlebar Twist Grip Throttle, Foot Throttle, Power lock key, T8F Tooth, T8F Chain, 3 speed Switch, is Good for Electric Scooter, Mini Motorcycle, Dirt bike, Electric Go karts, Quad carOther DIY project and more.

Product description

1600W Brushless Motor Kit

48V 1600W Electric Go Kart Motor

Electric Brushless Controller

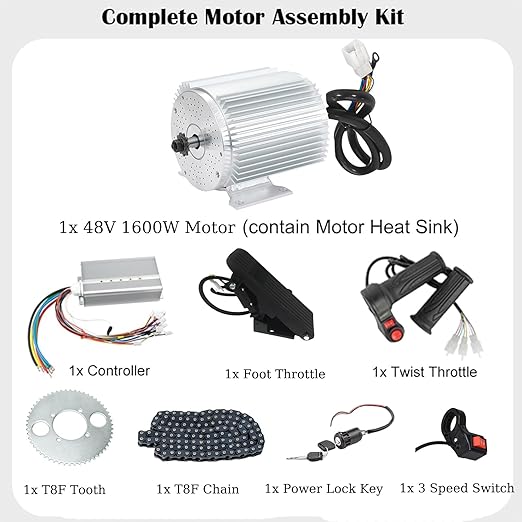

Accessories of Brushless Motor Kit

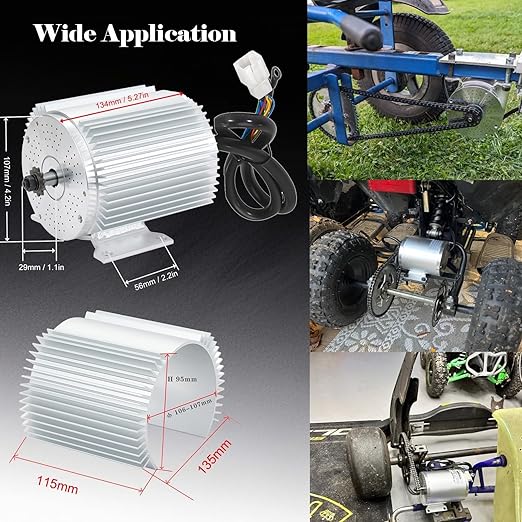

Mid Drive Motor Applications Wide

QA

Brushless DC motor with low noise, smooth operation, long service life and low maintenance cost.

Step 1: 3 thick yellow, green and blue wires (phase wires) : Controller to the motor - yellow to yellow, blue to green, green to blue;

Step 2: 6 Hall Wires: Controller to the motor - blue to yellow, other unchanged.

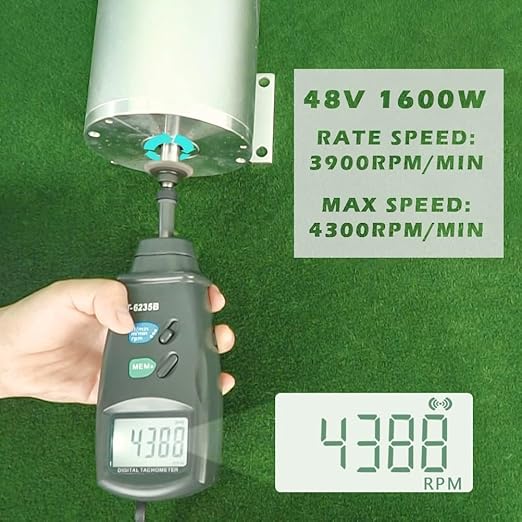

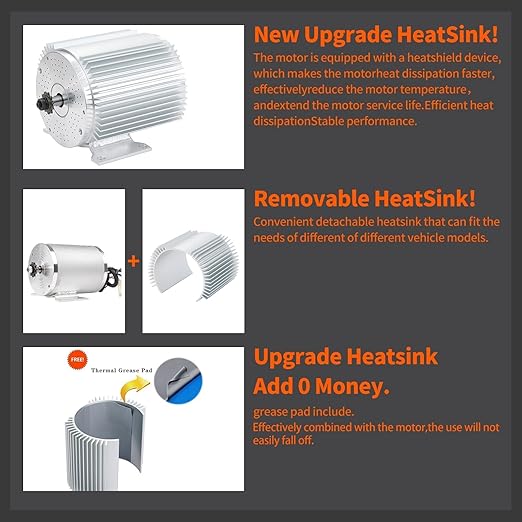

1600 watt rated power, 3900rpm/min rated speed, max speed is about 4300rpm/min. High-speed operation, and has 214 cooling holes for fast heat dissipation.

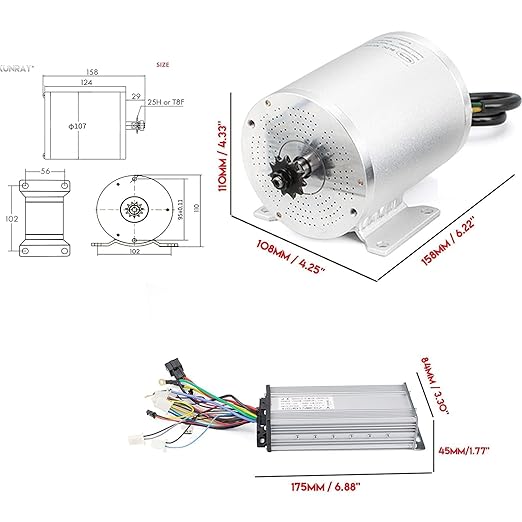

All aluminum body, comes with two mounting brackets for more models, with 8/10 mm axle and the bolts used are M6.

The sprocket is T8F 11T, and the matching chain is also T8F; 25H chain can also be used, but the sprocket must be replaced with 25H.

All copper movement, High quality motor with long service life.

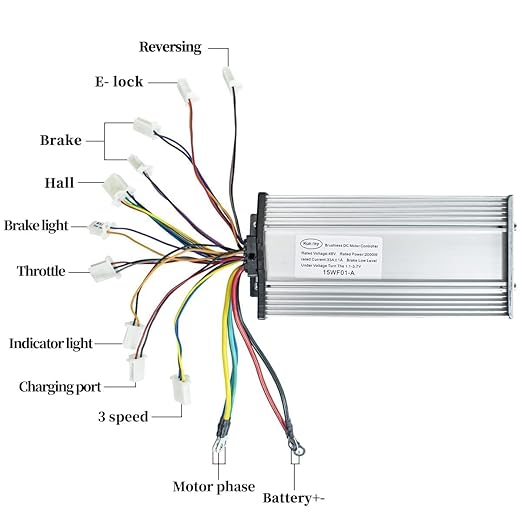

The controller has multi-function, 3-speed, reverse, indicator light, brake light and charging port.

KRBC-15MOS, the controller adopts high quality motherboard and chip.

Suitable for go kart, cable length is about 150cm/59 inches

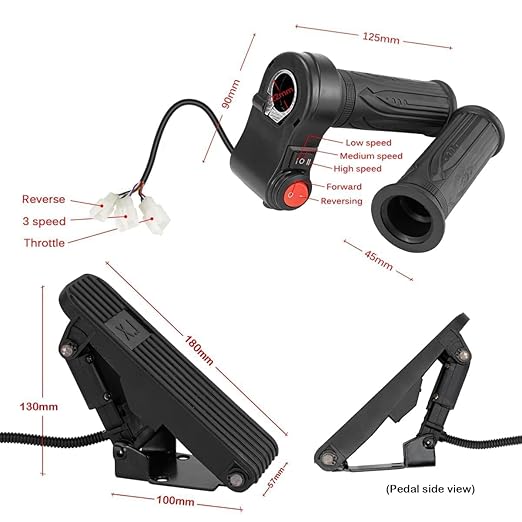

3 Speed Switch: low speed, medium speed, high speed (use with pedal)

About after-sales service

PHASE WIRE: yellow to yellow, blue to green, green to blue

HALL WIRE: red - red, black - black, green - green, yellow - blue, blue - yellow

Our BLDC motor is Aluminum and brushless , this type motor heat up is normal,temperature under 100°. is normal, if more than,STOP USE. and check wire connect ifcorrect. and contact with us for help.

In our listing we write the speed is motor RPM ,and it is max RPM, IS NOT LOADSPEED.(km/h is according many conditions). motor controller 3-speed: LOW SPEED 50%,MID SPEED: 75%,HIGH SPEED: 100%.REVERSE: 50%
