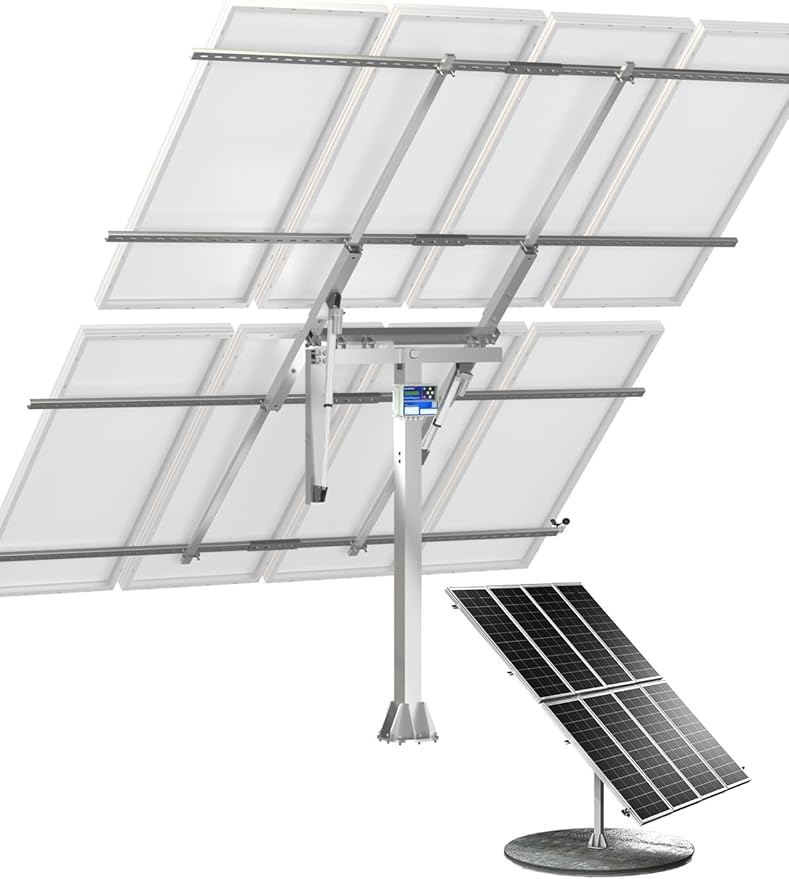

ECO-WORTHY Solar Panel Dual Axis Tracking System (Expanded Version Increase 40% Power) with Tracker Controllerfor 10PCS 100W/8PCS 200W/4PCS 400WHigh Stability Multi-Angle Adjustment for Yard/Farm

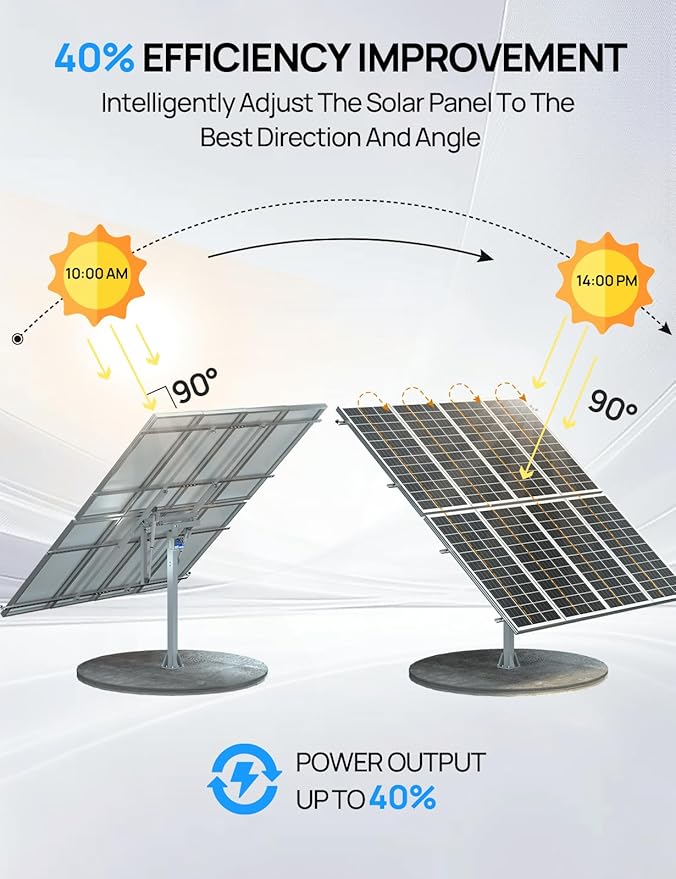

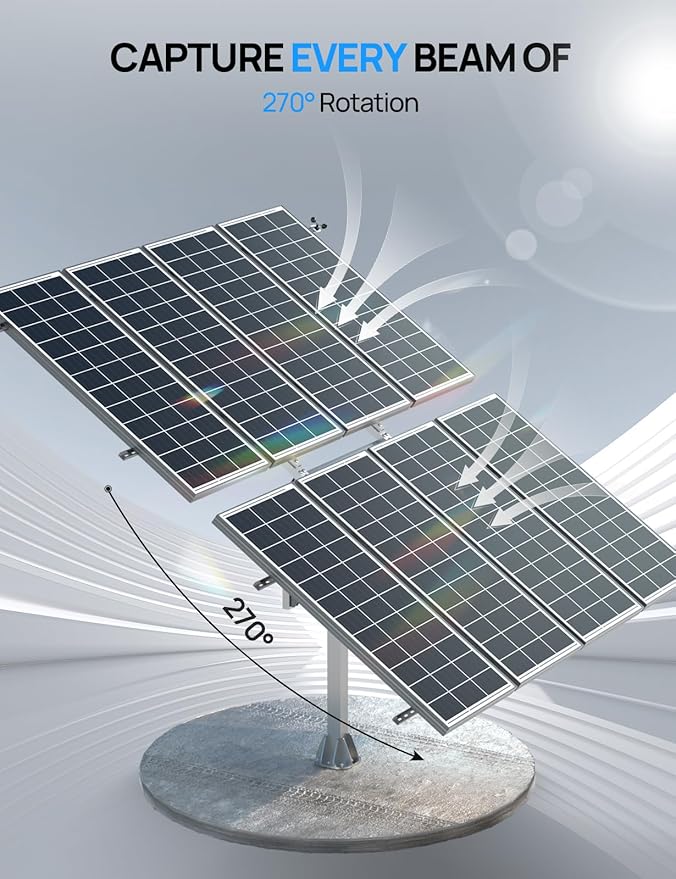

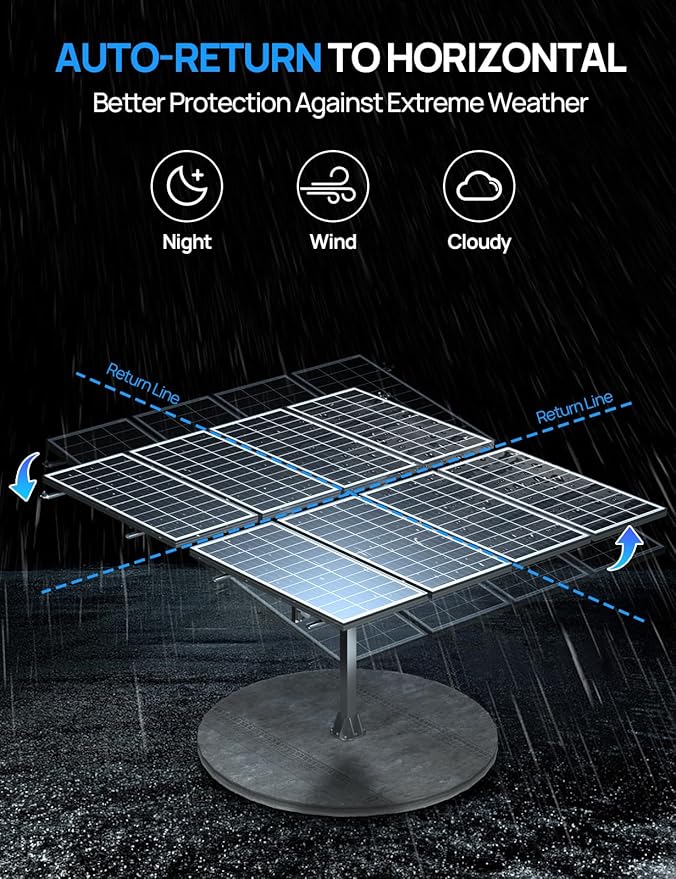

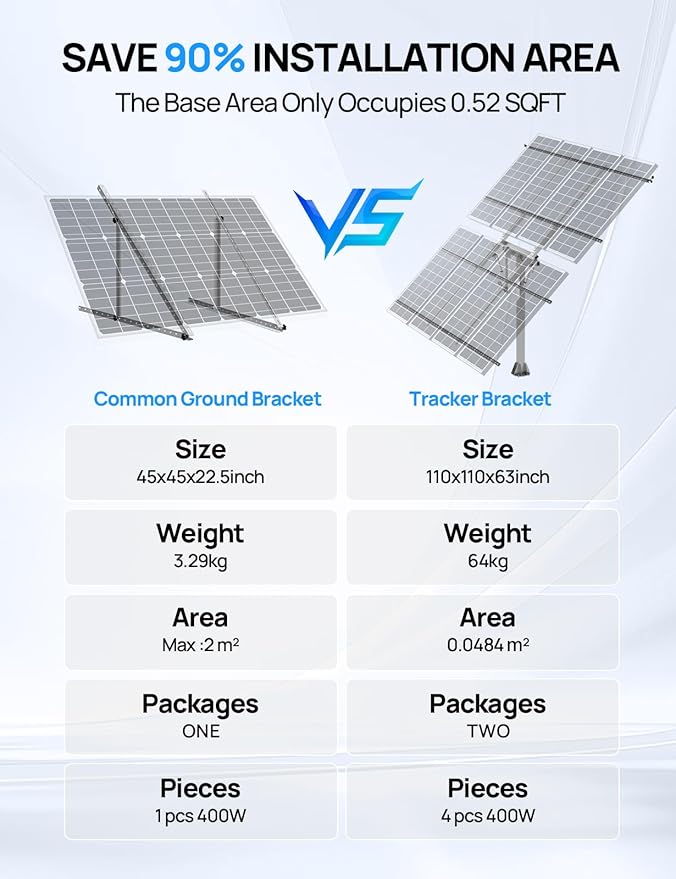

- Intelligent detection of strong light by high-precision light sensor, power generation efficiency increased by 40%: The tracker equipped with light sensor can accurately monitor changes in the intensity of sunlight in real time, and intelligently adjust the solar panels to the optimal orientation and angle, which can increase the power generation efficiency of the bracket by 40% compared with the ordinary bracket. - Capture every beam of light and increase effective light time: The solar tracker combines dual-axis drive and sensitive sensors to realize 270° accurate tracking of the sun, capturing every beam of light and extending the effective light time, bringing efficient energy conversion experience. - Automatic leveling in high winds to withstand extreme weather: When the wind speed exceeds 17.2m/s (0.0107mile/s), it can be automatically leveled (adjustable), and at the same time, the direction of the bracket can be manually adjusted by the controller to intelligently remove the surface snow of the panel in snowy days. - Installation only occupies 0.0484m² area, saving 90% installation space: tracker installation only occupies 0.0484m² area, comparing with the traditional bracket to save 90% installation space, very suitable for small yard / farm installation - RELIABLE SERVICE: ECO-WORTHY is committed to providing one-on-one dedicated customer service and lifelong worry-free technical support. Whenever and wherever you have any questions or need help, you are welcome to contact us at any time, and we will be happy to serve you.

Product description

How to fix the base of main pole? (foundation length, width and depth)

Distance between multiple sets of solar tracker?

Light sensor installation position and direction?

Installation position of "East-West"linear actuator?

What should I do if I encounter problems with the installation?

How to fix the base of main pole? (foundation length, width and depth)

The main pole must be installed on solid concrete ground or pier with the expansion bolts.The solid ground base must be larger or equal to 600*600*700mm cube.Recommend concrete material (kg/m³):Cement(450kg)+Water(183kg)+Sand(600kg)+Gravel (1,192kg)

Distance between multiple sets of solar tracker?

4.5m(14.8FT) or more

Light sensor installation position and direction?

The outlet of the light sensor should always face south, and it is recommended to install it at the end of the first C-shaped steel on the east side

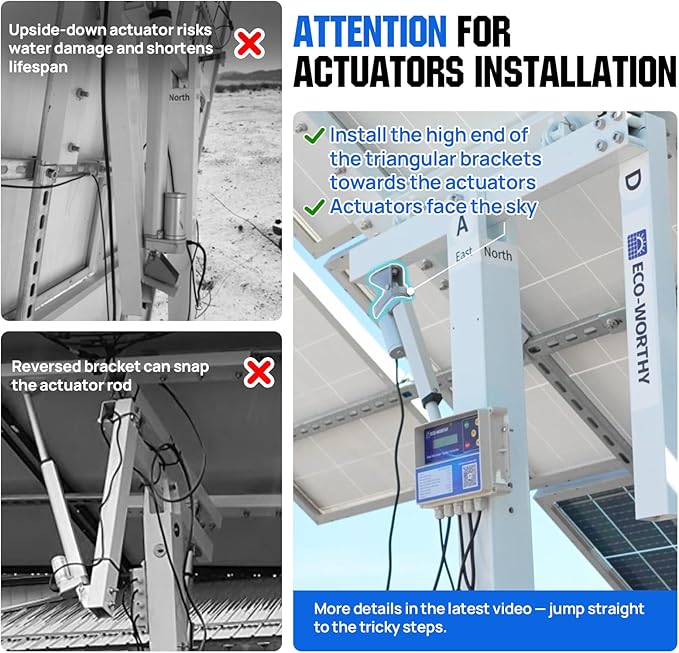

Installation position of "East-West"linear actuator?

Towards the west side

What should I do if I encounter problems with the installation?

Please let us know ,we will reply your email in 12h on weekdays
