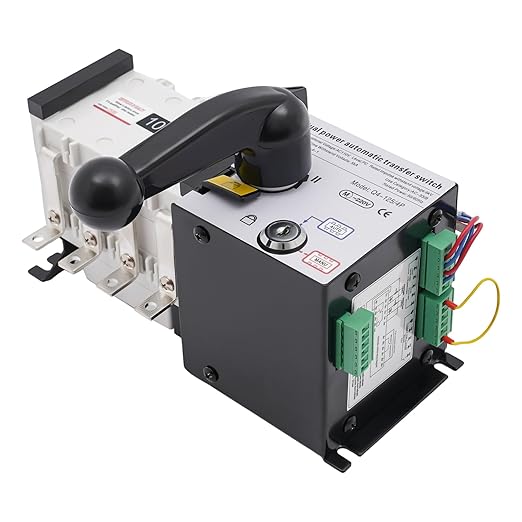

Dual Power Automatic Transfer Switch 4P 100A ATS Dual Power Generator Changeover Switch 110V Mini Electrical Selector Switches 3C Rated Voltage Range: 37V-440V

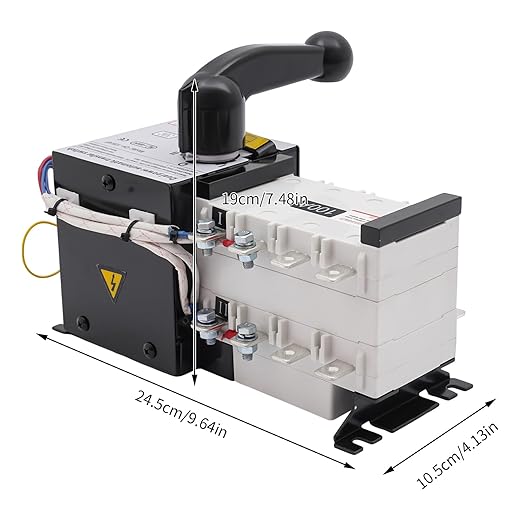

- ?【Powerful Function】In a voltage environment of 110V, this switch can switch the circuit load between the main power supply and the backup power supply at a speed of about ≤ 50ms, maintaining uninterrupted power and protecting the safety of the circuit load. The standard 1.38-inch rail installation is very convenient for connecting with air circuit breakers, further enhancing the safety of the circuit. - ?【Thoughtful Design】This dual power transfer switch combines self-activation and self-recovery mode and manual operation mode, which can automatically switch from the main power supply to the backup power supply, as well as manually. It is convenient for automated management and regular maintenance and repair. - ?【Economical and Practical】 Installing this transfer switch on the circuit can help your circuit achieve safer and more automated operation, thereby avoiding damage caused by power outages, which is very practical and economical to use. - ?【Space-saving】This dual power switch's compact dimensions (9.64*4.13*7.48 inches) and wall-mounting features make it very space-saving when installed. Equipped with two keys, it can facilitate you to switch between manual and automatic modes to avoid accidental touch. - ?【Wide Application】This dual power generator changeover switch can be applied to various scenarios such as elevators, surveillance, fire fighting, office buildings, etc. It is suitable for household electricity and various large places such as ports and terminals, banks and mechanical plants.

Product description

Rated Operational Voltage: AC110V

Our dual power automatic transfer switch is a device that can automatically switch between the main power supply and the backup power supply. It can ensure timely switching to the backup power source in case of main power failure, thereby ensuring the continuity and stability of the power supply. It not only improves the reliability and safety of the power mechanism but also simplifies maintenance work, making it an indispensable component of modern power mechanisms.

Material: ABS

Conversion Time: ≤50ms

Use Category: AC-33iB

Switching Mode: Self-activation and Self-recovery

Number of Poles: 4P

Rated Impulse Withstand Voltage: 6KV

Rated Short Time Withstand Voltage: 5KV

Insulation Voltage: 500V

3C Rated Voltage Range: 37V-440V

Level: PC

Notes

1. Please strictly follow the instructions and pay attention to the safety precautions inside.

2. This product belongs to electrical maintenance and installation, so it is important to ensure that the operator holds electrician qualification and takes necessary power off and insulation protection measures.

3. Please note that the switch cannot turn the generator on or off.

4. When the normal power supply and standby power supply are powered, the switch will give priority to using the normal power supply.

5. The normal/standby power supply should be an AC 110V power supply. If it is a DC or low-voltage power supply, you need to use an inverter to convert it into an AC 110V power supply

6. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

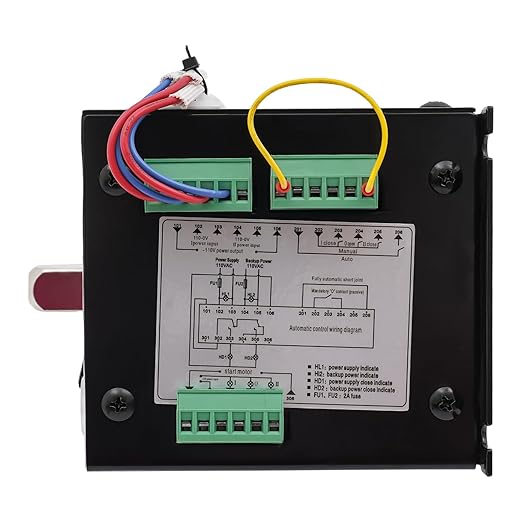

7. Please note that the neutral wire of this product is connected to the top of the green terminal, the green terminal position 3 connects to the common neutral wire, and the green terminal position 6 connects to the standby neutral wire! Number "1, 3, 5" is the firewire connection! "N" is the neutral connection! 1+3=220V, 1+N=110V.
