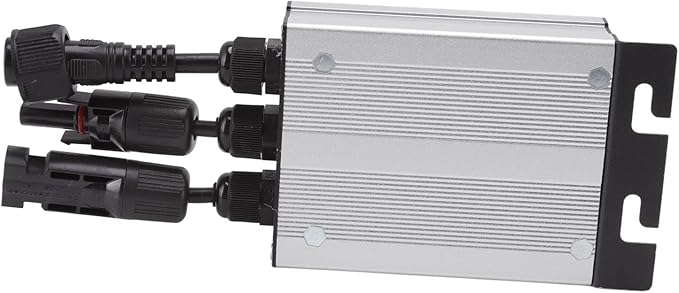

Diydeg 180W MPPT Grid Tie Micro Inverter for 12V Solar Panel Home Use System DC to AC Micro Inverter Solar Micro Inversor (GMI-120L-AC110V)

- Installation Notes: Install away from direct sunlight and direct rain exposure. Please keep it in a ventilated, dry and cool place. The voltage of the PV panel should not exceed the maximum input voltage of the solar grid tie inverter. (Voc<50V) - Safrty Use: The and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable, you need to be careful about this problem. - High Performance: Our solar inverter provides sustainable energy and brings excellent environmental efficiency. It offers you efficient power rate. - Main Function: Solar micro inverter is a device that converts solar panels from DC to AC, with a small size and capacity, and is often used in small solar systems. - Grid Tie: This device is a grid tie micro inverter. To make it work properly, it must be connected to the grid properly, and the grid works properly, and when the grid stops working, it will also stop generating electricity.

Product description

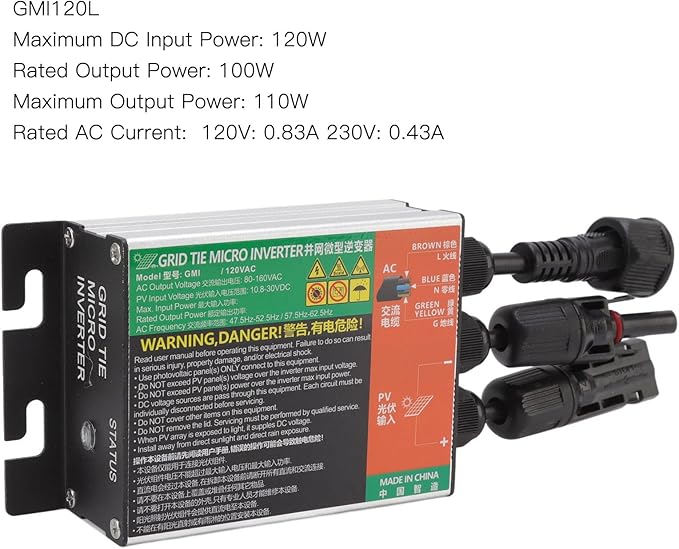

180W MPPT Grid Tie Micro Inverter for 12V Solar Panel, Home Use System DC to AC Micro Inverter Solar Micro Inversor (GMI-120L-AC110V)

High Performance: Our solar inverter provides sustainable energy and brings excellent environmental efficiency. It offers you efficient power rate.

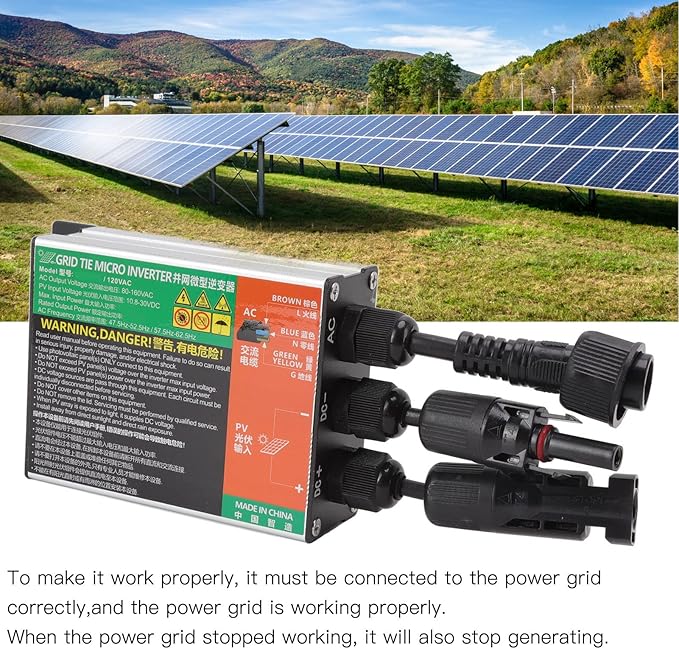

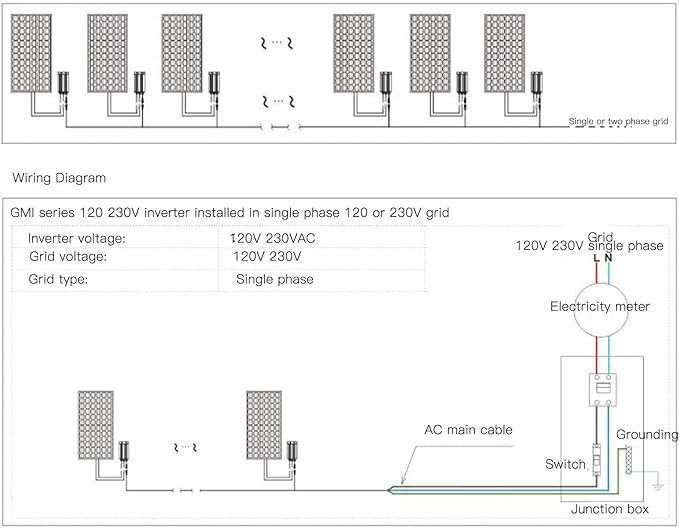

Grid Tie: This device is a grid tie micro inverter. To make it work properly, it must be connected to the grid properly, and the grid works properly, and when the grid stops working, it will also stop generating electricity.

Safrty Use: The positive and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable, you need to be careful about this problem.

Specification:

Item Type: Grid Tie Micro Inverter

Material: Aluminum alloy

Weight: Approx. 427g/15.06oz

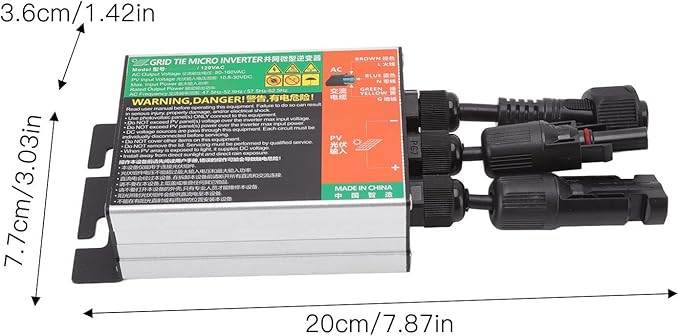

Size: 20x7.7x3.6cm/7.87x3.03x1.42in

Solar PV:

Number of Connectors at Input: 1 set (group)

Maximum Power Point Tracking Range: 12.5V-25V

Operating Voltage Range: 10.8V-30V

Maximum DC Input Voltage: 30V

Starting Voltage: 10.8V

Maximum DC Input Current: 7.5A, 9.37A, 11.25A

AC Output (AC):

Single Phase Grid Type: 120V 230V

Rated AC Voltage: 120VAC 230VAC

Output Voltage Range: 120VAC: 80V-160V at230VAC: 180V-280V

Rated AC Frequency: 50Hz 60Hz

Output Frequency Range: 50Hz: 47.5Hz-52.5Hz at60Hz: 57.5Hz-62.5Hz

Output Power Factor: >0.99

Efficiency:

Maximum Conversion Efficiency: 92.5%

CEC Weighted Efficiency: at120VAC: 90.5% at230VAC: 91.5%

Tracking Efficiency: 99.9%

Nighttime Loss: Mechanical Data:

Operating Ambient Temperature: -40? to +65?

Level: IP55

Cooling Method: cooling without fan

Other Features:

Isolation Characteristics: High frequency transformer isolation

Comprehensive Grounding: PE end in AC cable line is the grounding wire of the equipment, no other grounding port.

Mode: Islanding , voltage , frequency , temperature , current , etc.

PackageList:

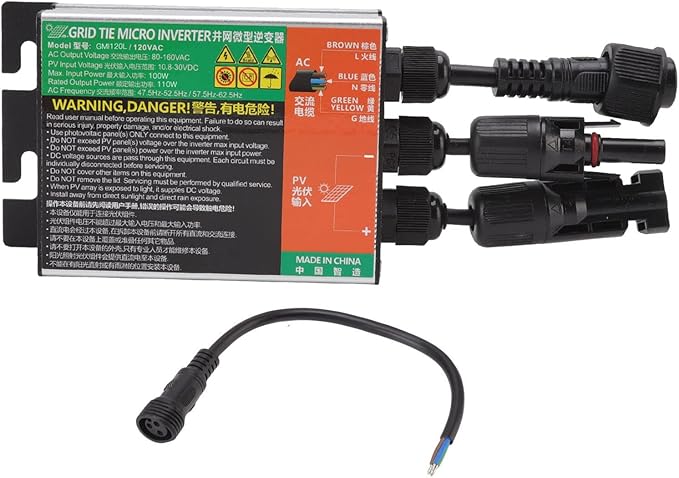

1 x Micro Inverter

1 x Manual

1 x AC Cable
