Battery Equalizer HA02 48V Batteries Voltage 4 x 12V DC Inverter Balancer Lead Acid Battery Charger Regulators Connected Series (4 X 12V)

Product description

Professional production of 2.5-240V lithium &lead acid battery equalizers, supporting customization !

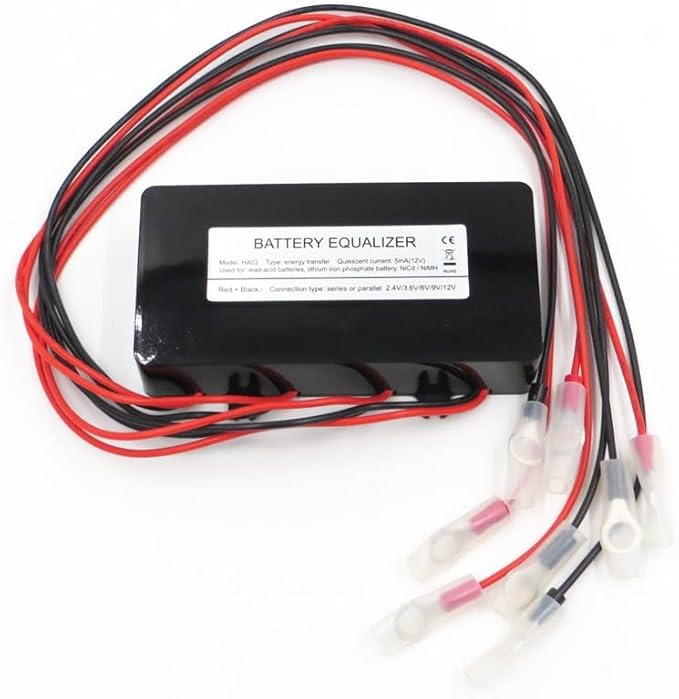

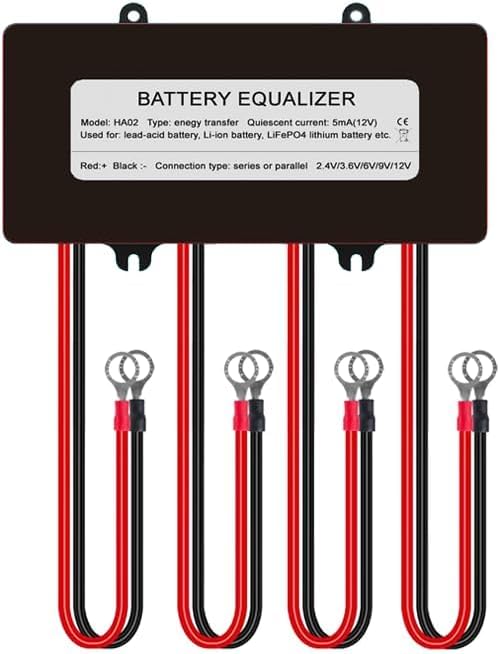

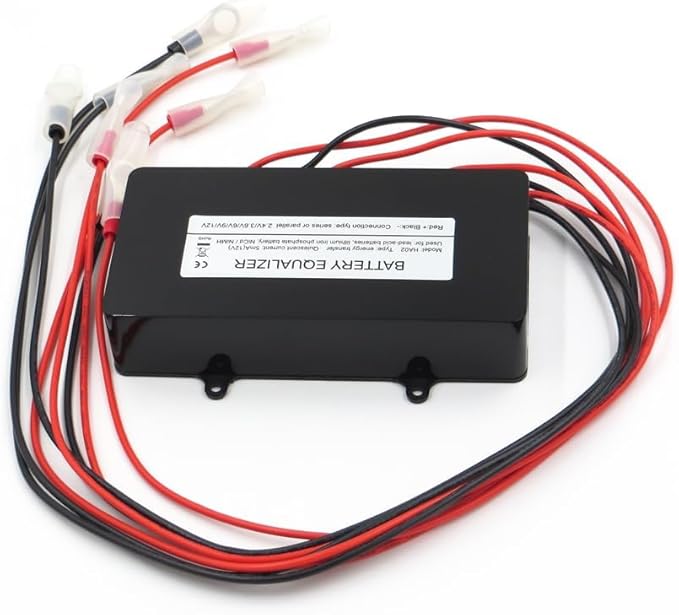

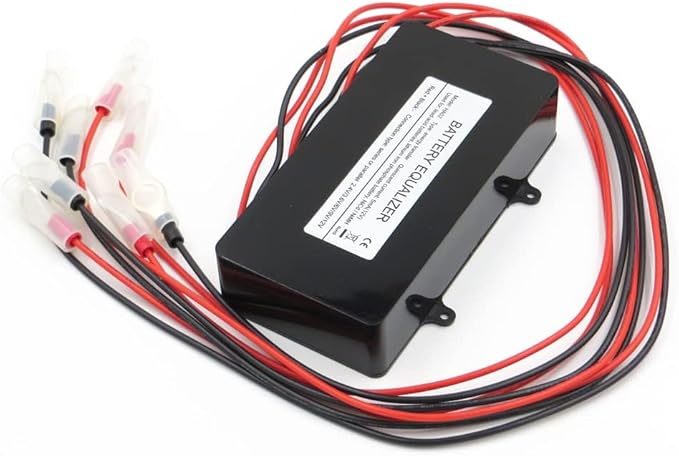

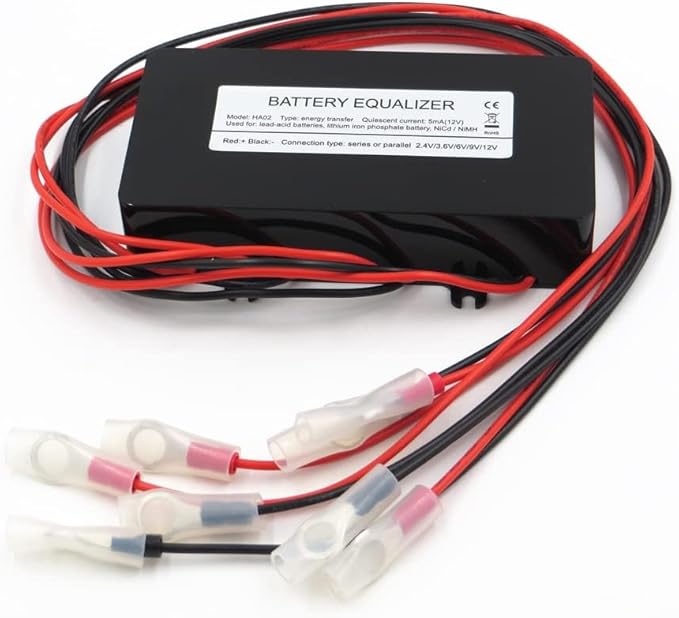

HA02 4X12V 48V Series Battery Equalizer

HA02 48V Battery Equalizer Feature

----------------------------------------------------------------------------------------------------------------------------------------------------

HA02 battery balancer is a device used in a battery system where multiple batteries are connected in series. Its main purpose is to equalize or balance the voltage or state of charge (SOC) across each individual battery within the series to ensure they all discharge and recharge evenly. This is crucial because if one battery discharges faster than the others, it could potentially be damaged, or it could limit the capacity of the entire system. Balancing can be either passive, where excess energy in high-voltage cells is dissipated as heat, or active, where that energy is transferred to lower voltage cells.

Adopting advanced product design concepts to minimize power self loss of the product. The self loss of HA02 battery equalizer in a 48V system is only 5mA.

HA02 apply for 48v 4 x 12V lead acid battery, 12v lithium battery pack(NCM/LFP/LTO).Can quickly balance the voltage of four batteries.Your batteries mate.

HA02 battery balancer offers advantages such as improved battery performance, increased efficiency, enhanced safety, extended lifespan, compatibility with different cell characteristics, and flexibility in cell replacement.
