Automatic Transfer Switch 100A AC 220V Dual Power ATS 2P Automatic/Manual Transfer Switch din Rail mounting for Home Generator RVPublic/Backup Power Supply

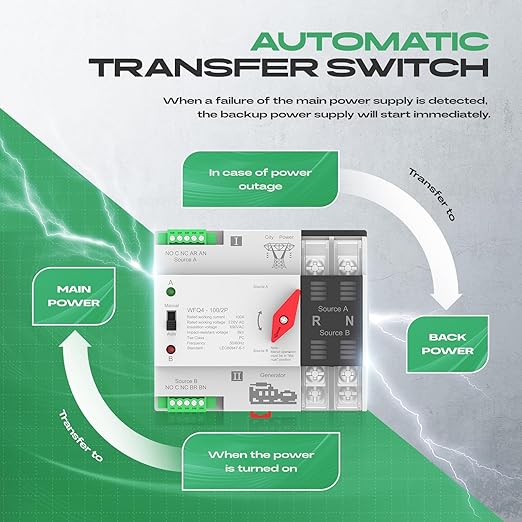

- 【Product Specifications】：This automatic transfer switch is rated for 100A current, 220V voltage, and 50/60Hz frequency, with an insulation voltage rating of 690V. Featuring a 2-pole design and PC fire rating, it supports automatic or manual mode switching. it employs a standard 35mm DIN rail mounting structure that is compact and sturdy, ensuring easy installation and maintenance. - 【 Comprehensive Protection】：Built-in multiple electrical protections: short-circuit protection, overload protection, phase loss protection, under-voltage/over-voltage protection, etc. ensuring safe operation even under abnormal voltage or current conditions. Automatically detects main power status; when main power fails, the backup power source switches on within 0.05 seconds to guarantee continuous and stable power supply. - 【 Dual-mode】：Supports both automatic and manual operating modes: Automatic Mode: Automatically switches back to the main power source upon restoration, ensuring uninterrupted power supply; Manual Mode: Allows free switching between power sources via the panel switch. LED indicators display the current status, offering simple and intuitive operation for convenient maintenance and testing. - 【 High-quality materials】：Features a high-strength flame-retardant PC material housing, offering excellent insulation, high-temperature resistance, and anti-aging properties. The silver alloy contact design significantly enhances conductivity and service life, effectively preventing arc interference to ensure long-term stable operation. - 【 Wide Application】：Suitable for homes, factories, laboratories, hospitals, and other locations requiring continuous power supply. Whether the primary or backup power source malfunctions, it automatically detects and rapidly switches, ensuring the continuity, reliability, and safety of the power system.

Product description

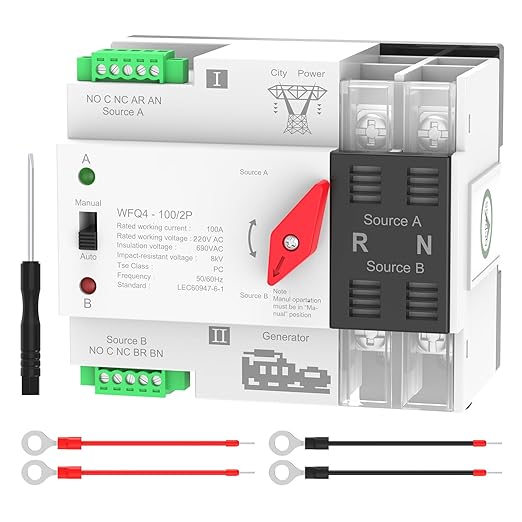

Automatic Transfer Switch 100A AC 220V

Automatic Transfer Switch 100A AC220V

Widely application

1. This switch is manufactured from high-quality flame-retardant materials, offering excellent insulation properties for safe and reliable operation.

2. The dual-power automatic transfer switch can be operated automatically or manually to ensure the continuity and reliability of power supply.

3. Silver contacts enhance the product's electrical conductivity and service life.

4. Specifically designed for home track-mounted installations, it offers exceptional ease of installation and maintenance.

5. The dual-power automatic transfer switch ensures uninterrupted power supply and is widely applicable in hospitals, data centers, and similar facilities.

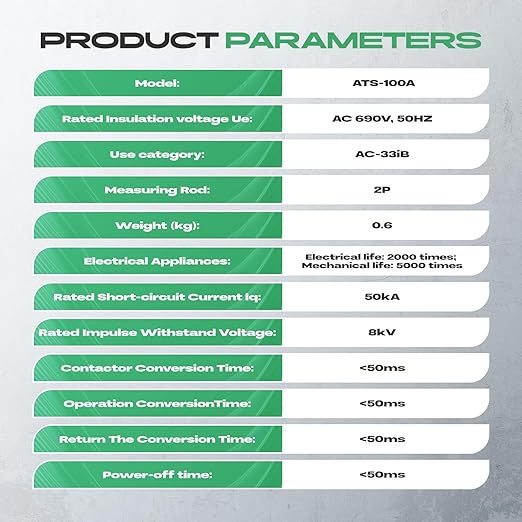

Rated Insulation voltage Ue: AC 690V, 50HZ

Use category: AC-33iB

Measuring Rod: 2P

Electrical Appliances: Electrical life: 2000 times; Mechanical life: 5000 times

Rated Short-circuit Current lq: 50kA

Rated Impulse Withstand Voltage：8kV

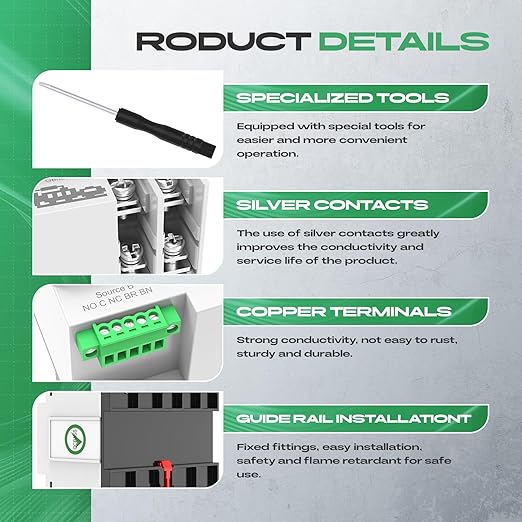

Silver contacts greatly improves the conductivity and service life of the product.

Strong conductivity, not easy to rust, sturdy and durable.

Fixed fittings, easy installation, safety and flame retardant for safe use.

Widely applicable in hospitals, data centers, and similar facilities.
