Ampinvt 6000W Solar Inverter 48V DC to 120V/240V AC Split Phase Output Built-in 100A MPPT Solar Controller Off Grid Low Frequency Pure sine Wave Inverter Charger for Lead Acid Lithium Gel Battery

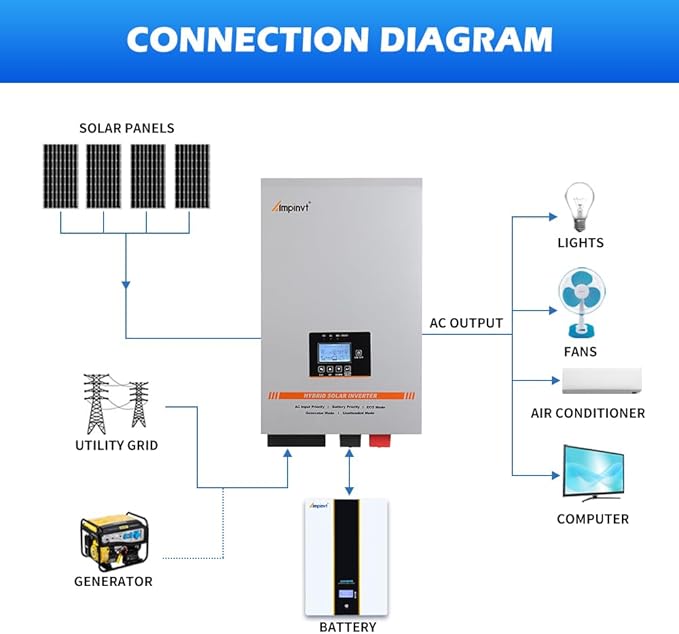

- This Pure Sine Wave Solar Inverter is a combination of an inverter, ac battery charger , MPPT solar charge controller and AC auto-transfer switch. High transfer efficiency is above 85%, built-in AVR stabilizer, complete isolate surge interference of input & output's voltage and current, Impact resistance super load capacity, continuous stable pure sine wave output. Available at 240Vac (HOT1+HOT2) and 120/240Vac output at the same time. - The max charge current can be adjusted from 0-35A, Setting the value to 0A will turn off the charging function. - Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection. 110%-120% of the output was maintained for 30s, then the output turned to bypass, more than 160% maintained the 300ms - MPPT controller with high tracking efficiency of up to 98% can charge 48V lead-acid batteries (Seal, AGM, Gel, Flooded), LiFePO4 batteries and lithium batteries(User Mode) from solar panels, the grid, or a generator. PV Array Power is 5600W and the MAX PV input voltage is 150V DC - Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection. 110%-120% of the output was maintained for 30s, then the output turned to bypass, more than 160% maintained the 300ms.

Product description

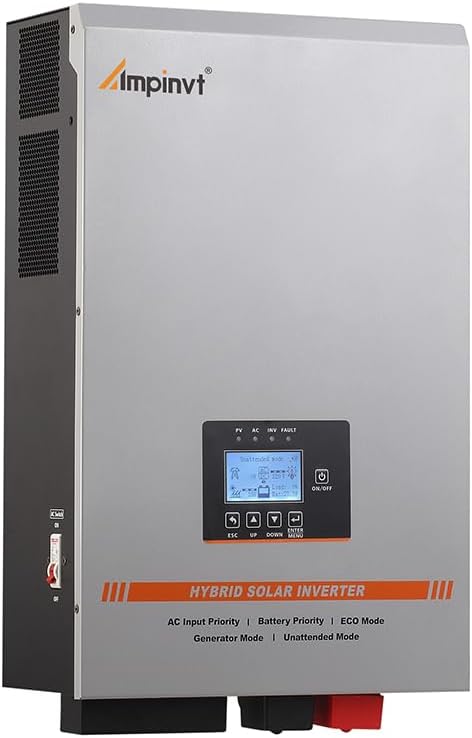

Ampinvt 6000W Low Frequency Solar Inverter 48VDC TO 120V/240VAC

ATTENTION:

Note: Different types of loads have different starting impulse currents. Customers need to select the appropriate inverter model according to the actual equipment power, current, and load characteristics.

-

Five Woking Model:

1. AC/Line priority mode -- always use ac power as priority input, provide ac output, and automatically charge the battery.

2. Battery priority mode -- Priority should be given to battery power supply. After low voltage protection, the battery will be transferred to market power supply. When the battery is full, the battery will be transferred back to battery power.

3. ECO Mode---Load < 10% automatic sleep and stop output, load > 10% automatic boot back to normal inversion.

4. Generator mode -- use unstable generator 240V to generate power, access the inverter AC input, through the inverter AVR regulator, automatic matching 60HZ municipal frequency, output voltage regulator in the normal operating range.

5. Unattended Mode---When the battery is low voltage, the inverter goes into standby state(Power saving state). When the battery restores the voltage value set by yourself (such as solar charging), the inverter will restore the normal output of the inverter, and realize unattended full automatic operation!
