Ampinvt 5000W Solar Inverter 48Vdc to 120V Pure Sine Wave Inverter 5000 Watts Built-in 100A MPPT Solar Charge Controller Max PV Input 5500W Support up to 6 in Parallel Lead Acid Lithium Battery

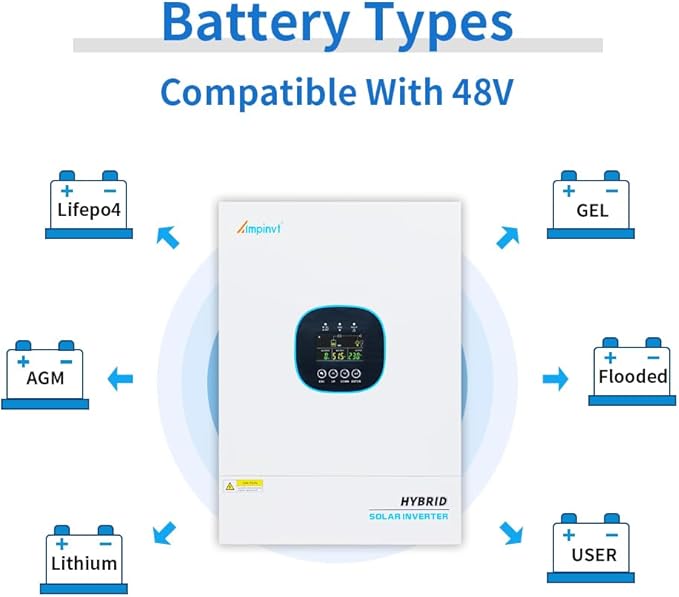

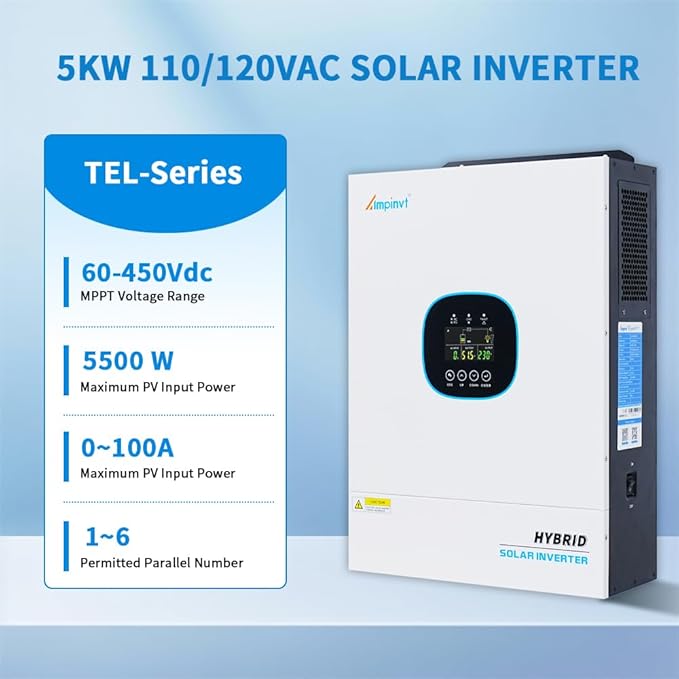

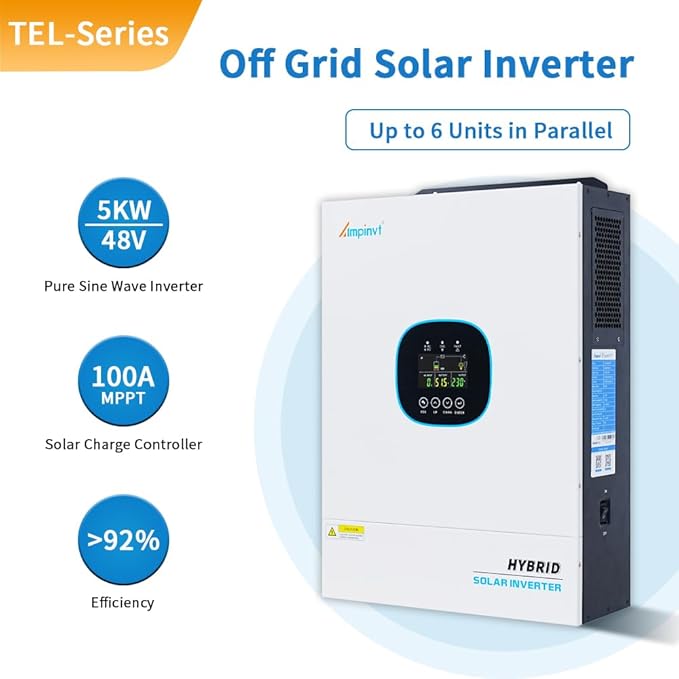

- This Pure Sine Wave Solar Inverter is a combination of an inverter, ac battery charger , MPPT solar charge controller and AC auto-transfer switch. Support Single-phase,Split Phase and Three-phase 120/208V/240Vac Output, High transfer efficiency is above 92%. - 100A MPPT controller delivers up to 98% tracking efficiency and supports charging for 48V lead-acid (Seal, AGM, Gel, Flooded), lithium (LiFePO4) batteries. Max.PV Power：5500W, PV Input Voc:60-500V, Max PV Charging Current: 100A - 3 Work Modes: PV load priority mode / Inverter priority mode / PV priority mode. 4 Charging Modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging. - Communication Ports (RS485/WIFI & USB): RS485/WIFI: Enables communication with monitoring hosts, lithium BMS, or mobile apps via optional modules for real-time data and parameter adjustment. USB: Connects to PC software for configuration; requires CH340T driver installation. - Dry Contact Control: Automatically starts/stops the diesel generator based on battery voltage. Normally closed (NC-N) and normally open (NO-N) contacts change state when voltage is low, supporting resistive loads up to 125VAC/1A, 230VAC/1A, or 30VDC/1A. - Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection.

Product description

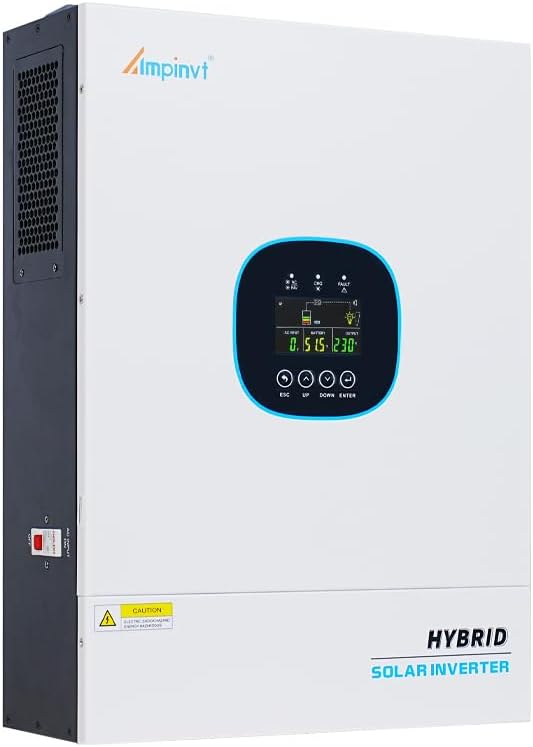

Ampinvt 5000W High Frequency Solar Inverter 48Vdc to 110V/120Vac

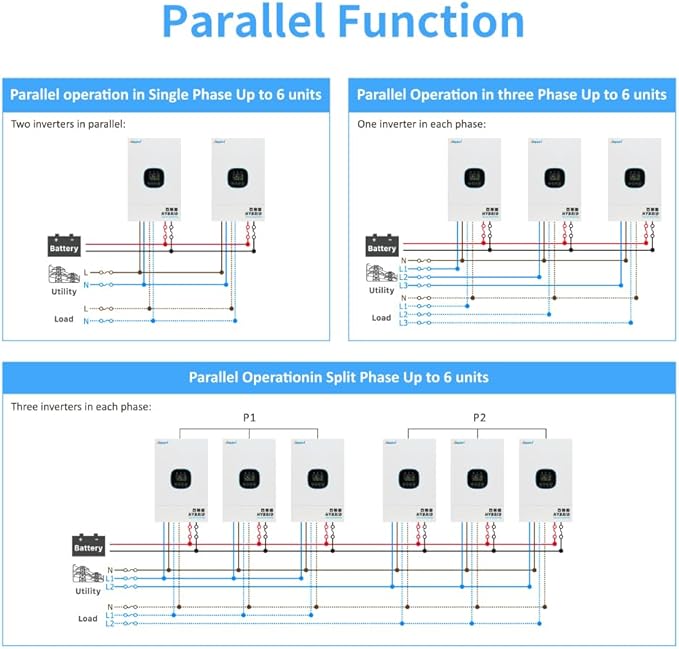

Parallel Connection Capacity Up to 6 Units

Flexible 120/240/208V Voltage Output

The system supports parallel expansion of up to six units, enabling single-phase, split-phase, or three-phase configurations. Except for single-phase mode, parallel connection supports both 120V/240V split-phase and 208V three-phase output. This versatility ensures reliable power delivery for residential, commercial, or industrial applications, offering efficient distribution, balanced loads, and broad compatibility with diverse electrical requirements.

ATTENTION:

Note: Different types of loads have different starting impulse currents. Customers need to select the appropriate inverter model according to the actual equipment power, current, and load characteristics.

-

Four Charging Modes:

1. Hybrid Charging: The solar energy will charge the battery preferentially, the utility will charge the battery at the same time when the solar energy is insufficient.

2. Only Solar Charging: The solar will be the only charger source not matter the utility is available or not.

3. PV Priority: Solar energy will charge battery as first priority. The utility will charge the batterywhen solar energy is not available.

4. Utility Priority: The utility will charge the battery preferentially, and the battery will be charged by solar only when the utility is invalid.
