ACOPOWER 12V 20W 5A Solar Charge Kit20W Monocrystalline Solar Panel & 5A Charge Controller for RV Boats Camping w USB 5V Output as Phone Charger

- Comes with a 20W 12V Mono solar panel, a 5A PWM Charge Controller with SAE Connectors and Alligator Clamps . 20ft cable from charge controller to battery; SAE connector for pre-wired 2 Pin socket in sidewall of RV；Alligator clamps- to clip to your battery in 10 seconds with protection. The alligator clamps won't have voltage and current until a proper battery is connected, avoid any touching accidents. - 20W Mono Solar Panel Kit: Each Solar Panel Comes With Long 90cm 12AWG Cable.Easy and convenient to install with pre-drilled holes on panels. The kit charges 12 Volts lead acid batteries including Sealed, Flooded, GEL and AGM, which mostly serve in boats, cars, RV and campers; - 5A PWM Charge Controller: The charge controller with 5V USB output for phones/USB devices . You Can Expand Your System Up to a Maximum of 2. Positive Grounding Controller Ensures the Broader Off Grid Applications and Safety. Regulator for a protection of your battery and devices, stop charging after battery's full charge, automatically start when voltage drops. - Basic Component for Off-Grid Solar Panel 12V/24V/36V/48V System, Caravan, RVS, Cars, Boats, Green House Solar Systems. Withstand High Wind (2400Pa) and Snow Loads (5400Pa); Lightweight Anodized Aluminum Frame and Reinforced Safety and anti-Reflection Coated Glass 3.2mm Thick and Waterproof IP-65 Rated Junction Box which Allows The Panel Lasts for a Long Time. - Aplications & Warranty: Connect the charge controller to battery firstly, then connect solar panel. Great for Off-grid applications, Such as RVs, Trailers, Boats, Sheds, and Cabins. Panels, 5 years material and workmanship warranty and 25 years power output warranty; Accessories, 1 year material & workmanship warranty.

Product description

ACOPOWER 20W Mono Solar Charger | 5A PWM Charge Controller with SAE Connectors and Alligator Clamps

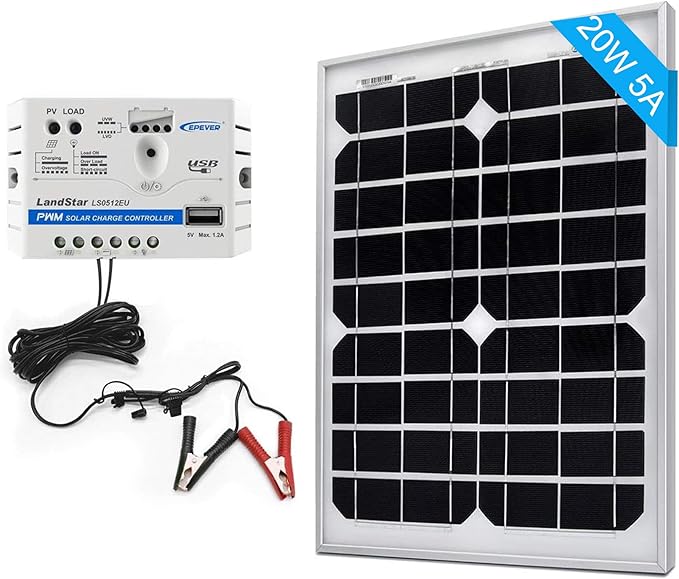

Packing List

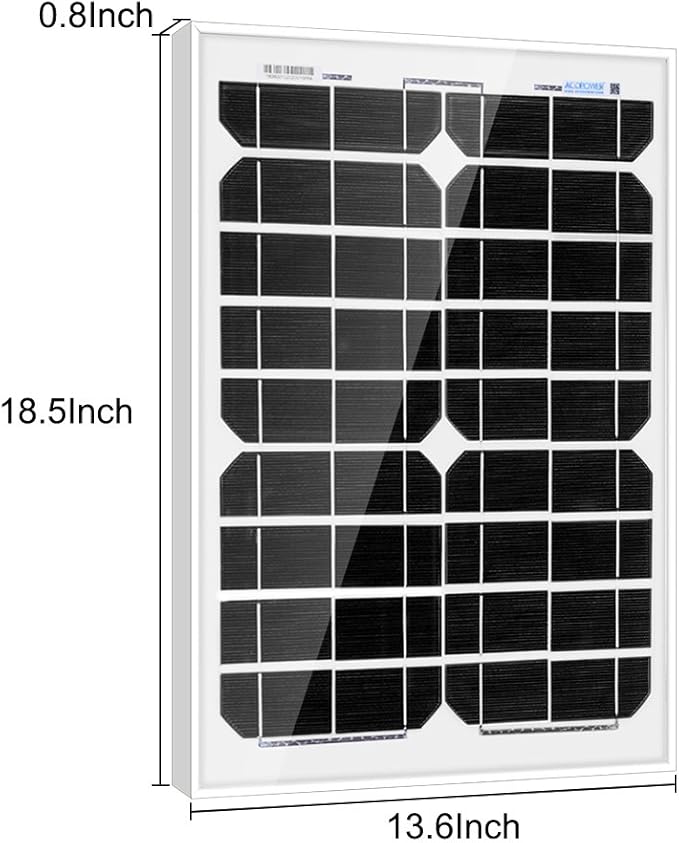

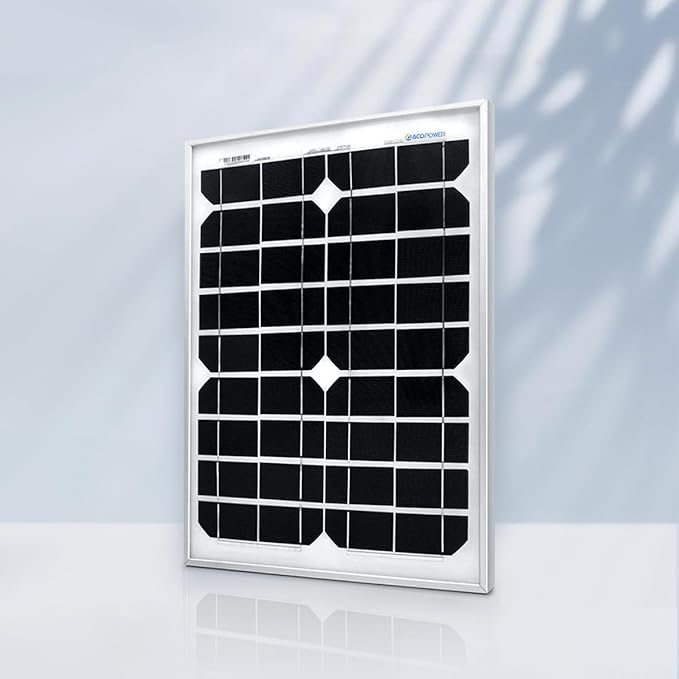

ACOPOWE Monocrystalline Solar Panel

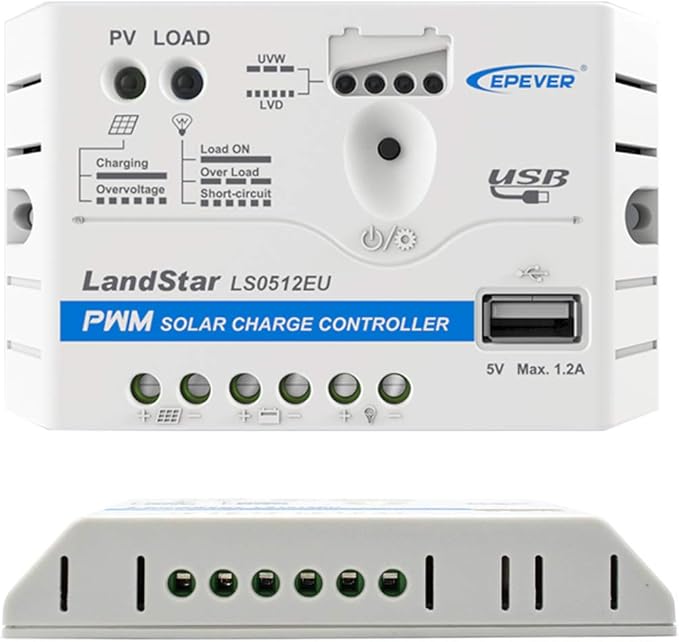

5A PWM Charge Controller Kit (Positive Grounded)

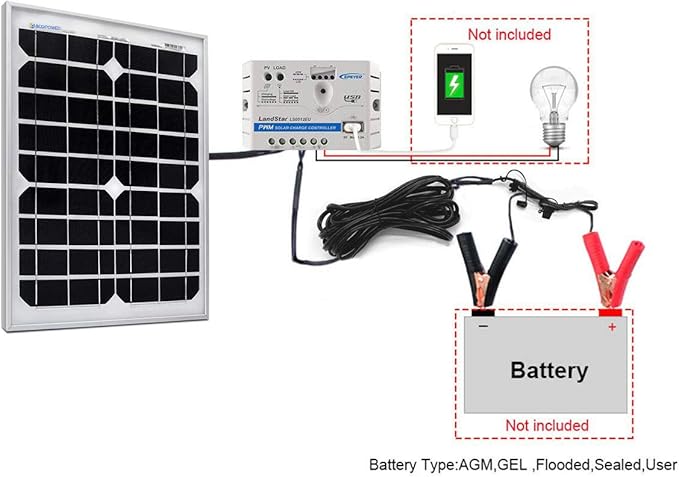

How to properly set up a basic system

Application

Monocrystalline Technology

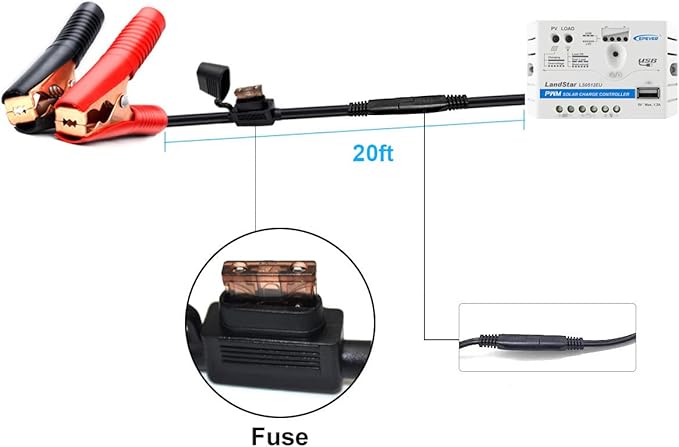

It comes with SAE Connectors and Alligator Clamps.

20ft cable from charge controller to battery;

SAE connector for pre-wired 2 Pin socket in sidewall of RV.

Alligator clamps- to clip to your battery in 10 seconds with protection.

The alligator clamps won't have voltage and current until a proper battery is connected, avoid any touching accidents.

First, the battery should be hooked up to the charge controller. You could use our tray cable or any general stranded copper core wire to connect the two. Make sure that you lead the wire into the battery terminal of the charge controller and match the + and ? to the battery + and -. Make sure to screw in the exposed wire tightly inside the controller terminal. Then screw on the battery rings to the battery. .

Second, then connect your solar panel to your charge controller. We recommend that you connect the adapter kit to your panel first, then follow the + or ? sign coming off of the leads of the panels and match it with the + and ? sign on the charge controller. Be careful at this step, because if the panel is inserted incorrectly, you can have reverse polarity and short the system causing damage to the panels or controllers

Lastly, you can hook up your inverter to your battery by using battery ring cables and by matching the + to + and ? to -.
