AC120V 15Amp Automatic Transfer Switch ATS Auto Transfer Switch (Core Wires + NEMA 5-15P)

AC120V 15Amp Automatic Transfer Switch ATS Auto Transfer Switch (Core Wires + NEMA 5-15P)

$107.80
$107.80
Skip to product information
AC120V 15Amp Automatic Transfer Switch ATS Auto Transfer Switch (Core Wires + NEMA 5-15P)
  • AC120V 15Amp Automatic Transfer Switch ATS Auto Transfer Switch (Core Wires + NEMA 5-15P)
  • AC120V 15Amp Automatic Transfer Switch ATS Auto Transfer Switch (Core Wires + NEMA 5-15P)
  • AC120V 15Amp Automatic Transfer Switch ATS Auto Transfer Switch (Core Wires + NEMA 5-15P)
  • AC120V 15Amp Automatic Transfer Switch ATS Auto Transfer Switch (Core Wires + NEMA 5-15P)
  • AC120V 15Amp Automatic Transfer Switch ATS Auto Transfer Switch (Core Wires + NEMA 5-15P)
  • AC120V 15Amp Automatic Transfer Switch ATS Auto Transfer Switch (Core Wires + NEMA 5-15P)
  • AC120V 15Amp Automatic Transfer Switch ATS Auto Transfer Switch (Core Wires + NEMA 5-15P)
  • AC120V 15Amp Automatic Transfer Switch ATS Auto Transfer Switch (Core Wires + NEMA 5-15P)
  • AC120V 15Amp Automatic Transfer Switch ATS Auto Transfer Switch (Core Wires + NEMA 5-15P)
  • AC120V 15Amp Automatic Transfer Switch ATS Auto Transfer Switch (Core Wires + NEMA 5-15P)
AC120V 15Amp Automatic Transfer Switch ATS Auto Transfer Switch (Core Wires + NEMA 5-15P)

AC120V 15Amp Automatic Transfer Switch ATS Auto Transfer Switch (Core Wires + NEMA 5-15P)

$107.80
$107.80

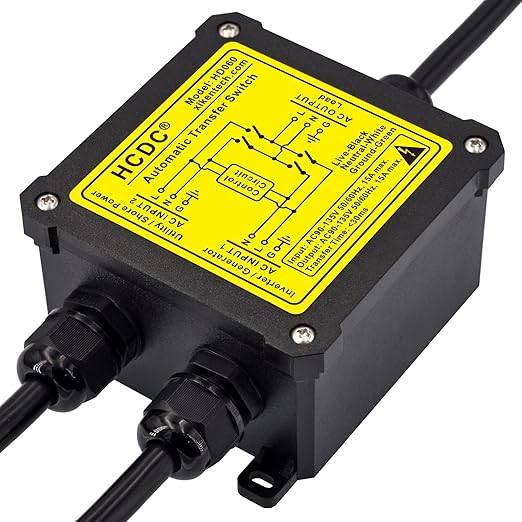

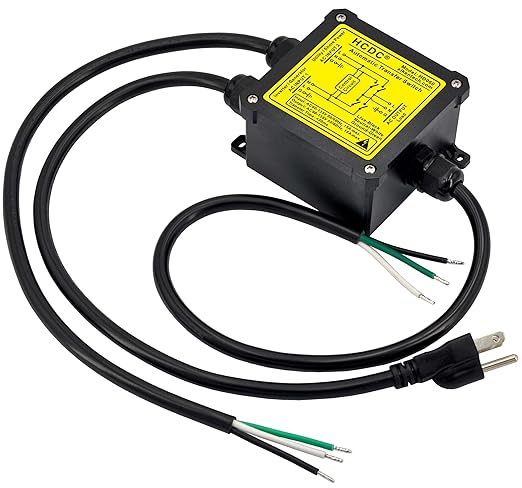

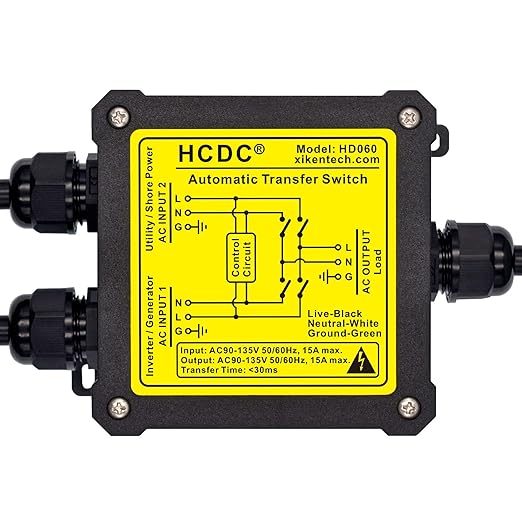

- HCDC HD060 Automatic transfer switch, an easy to mount 15Amp inline transfer relay provides switching between AC INPUT 2 (Utility or Shore Power) and AC INPUT 1 (Inverter or Generator) AC source. When AC INPUT 2 is powered, the load power will be switched to AC INPUT 2. When AC INPUT 2 is powered off, the load power will be switched to AC INPUT 1. - Operating voltage AC 90 to 135V 50/60Hz. Maximum current 15 Amp. Transfer time less than 30mS (0.03 second). For most smart devices or computers, the switching action of 30mS time will not affect their normal operation. - Internal four high power SPST relays switch design, effectively avoid the problem of DPDT relay high inductive load arcing. Live and Neutral wire are switched at the same time. The Ground wires of the two inputs and output are connected together internally and will not follow the switch on and off. - IP68 Waterproof high level enclosure, suitable for indoor or outdoor use. Flame retardant rating V1. Case material: PC (Polycarbonate). Seal material: Silicone rubber. External screw: 304 stainless steel. - AC INPUT 1 cable: Length 19 inch (0.5 meter), US standard NEMA 5-15P 3 prong plug. AC INPUT 2 and AC OUTPUT cables: Length 19 inch (0.5 meter), 14AWG (2.08 square millimeter) x 3 cores.

Product description

AC120V 15Amp Automatic Transfer Switch, ATS Auto Transfer Switch, HD060

SPECIFICATIONS:

Warm Reminder: This product is being imitated and copied. The copycats don't even know or care about the working principle of the internal circuit. They use low-quality and inferior components. For example, the electrolytic capacitors they use have a service life of less than 2,000 hours. They don't even dare to put their own brand and logo on the product. You buy ATS for your expensive system and for a pleasant experience on your camping vacation. You don't want the product to fail at a critical moment, which will ruin your mood and damage your expensive system equipment.

Specially optimized design will not cause your GFCI outlets to trip falsely, and it will not cause arc creepage between the two input sources and the output.
