96V 55A MPPT Solar Charger Light Grey 3.3 kg Iron LCD Off-grid Solar Systems RVs Boats Solar Ebike Home Backup Power Systems

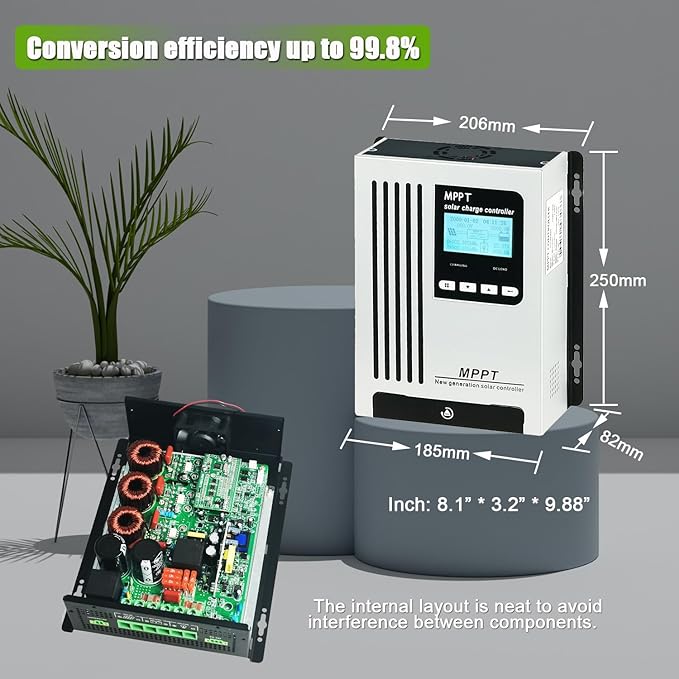

- New function updated: battery re-activation. It can auto wake up the dead batteries through the controller when the sun comes out. - Certification: CE, PSE, SGS and METI Registration; Iron shell and aluminum cooling plate can help the dissipate heat effectively; The internal layout is neat to avoid interference between components. - Batteries support: lead acid, sealed, Gel, AGM, lithium battery etc; 48V 96V Auto / 60V 72V 84V manual set. Max solar panel input working voltage range DC180V, MAX input PV panel power 5500W. - It can keep the maximum power charge, the conversion efficient rate up to 98.1%, power consumption lower than 0.7W; PV modules utilization rate ≤99.9%; Static power is ≤2W; Noise is ≤50dB. - The charging models are MPPT, equalizing charge ( (lead acid / GEL/ Liquid)), floating charge; Protection: over charge, over discharge,reverse connection, over voltage, short circuit, high temperature, low or over voltage input recovery etc. - Easy installation; LCD display: PV input voltage, battery type, battery voltage, charge current, daily generation, total generation, language and date, charge status, fault record query, and power curve etc. - Wide Application: This solar charge controller is suitable for various applications, including off-grid solar systems, RVs, boats, solar ebike, home backup power systems, and more.

Product description

Tracking per second MPPT solar charge controller

55A MPPT solar charger with lithium battery reactivation

65A MPPT solar controller

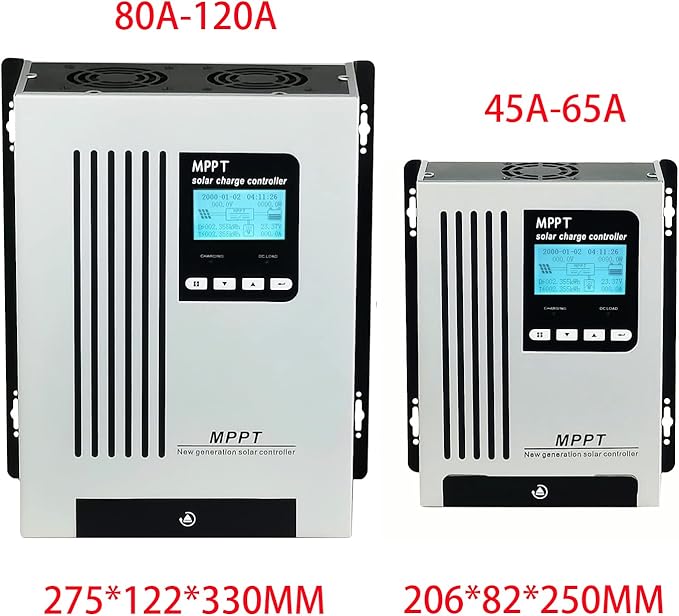

45A-65A MPPT solar charger

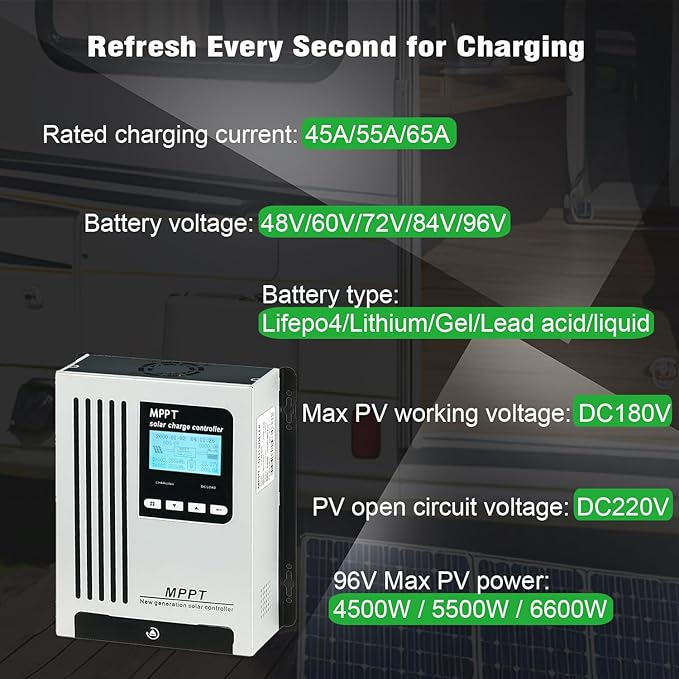

48V-96V system voltage supports Lithium, Gel, Liquid, Lead acid battery

Technical Parameter

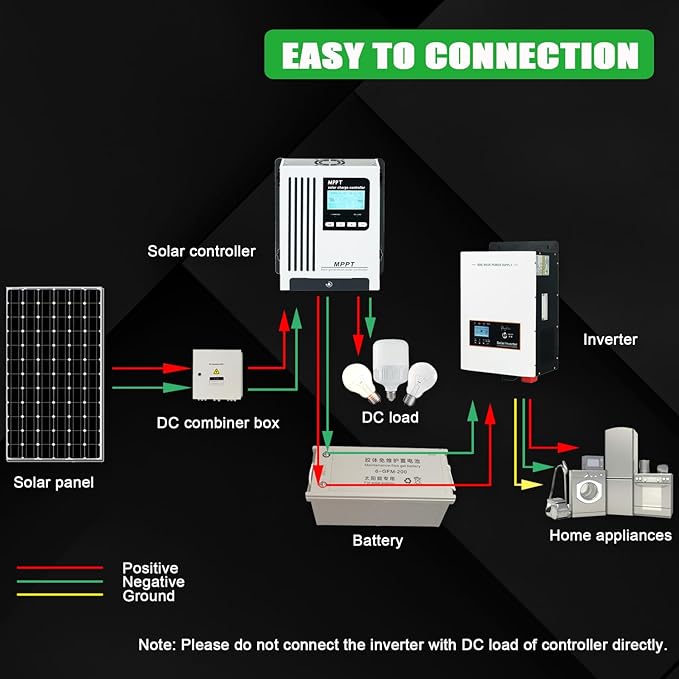

How to connect the MPPT solar controller?

Complete production process

100 % fully load burn-in testing

PV input voltage range

? Auto wake up lithium battery and Easy installation

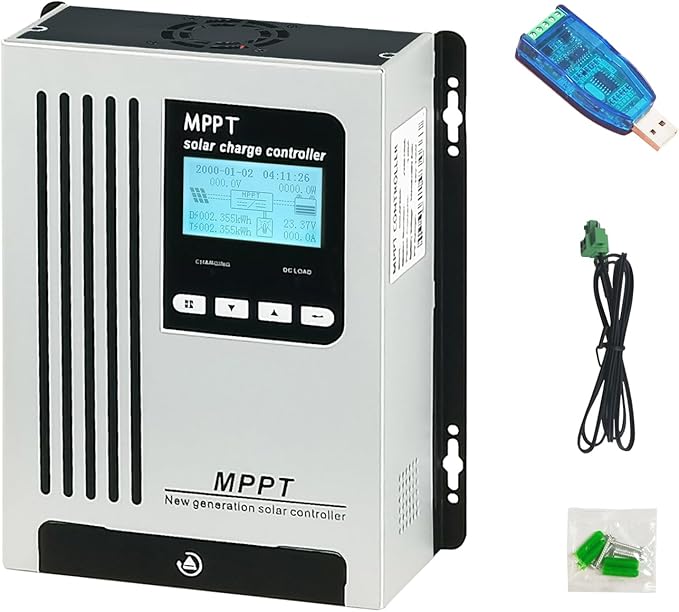

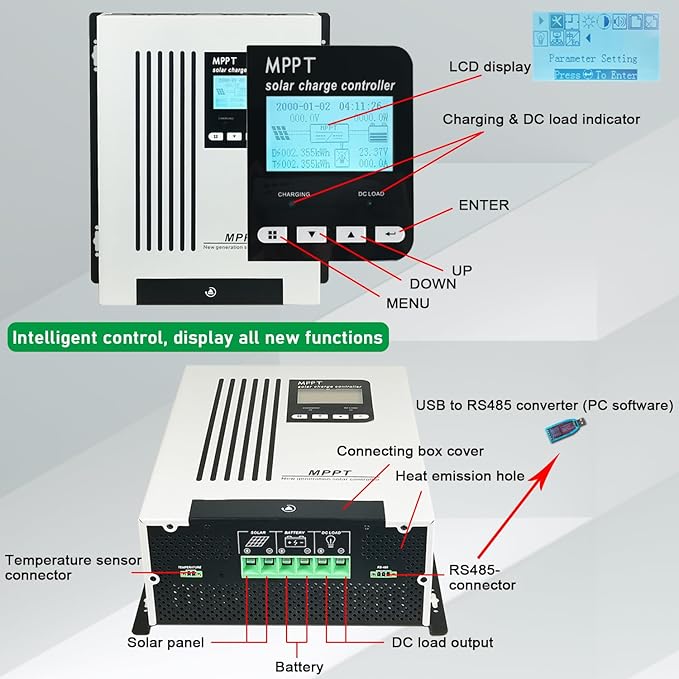

? All-round protection and USB to RS485 converter for PC software

? Certification: CE, PSE and METI Registration

? The conversion efficient rate up to 99% and The max solar panel input working voltage up to DC180V, open circuit voltage up to DC220V.

This SF9655A supports 48V / 60V / 72V / 84V / 96V battery votlage, 60V / 72V / 84V need manual setting, it does not support 12V / 24V /36V.

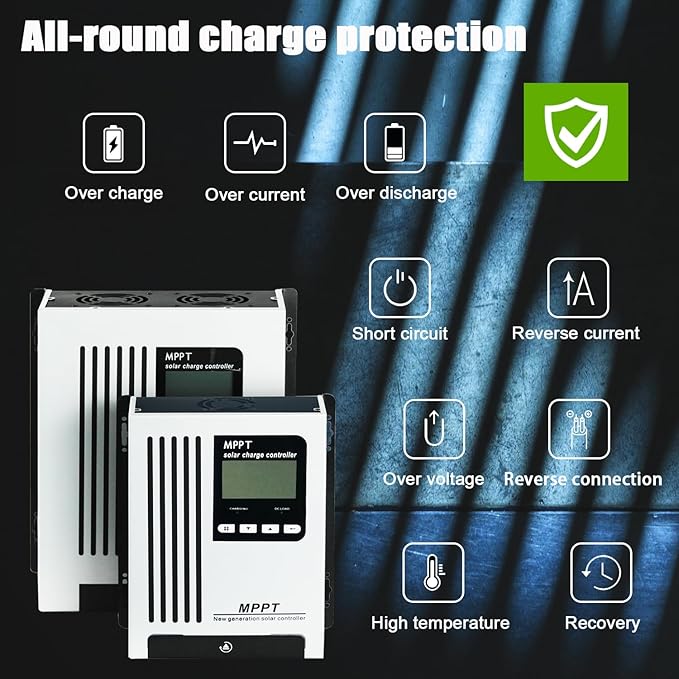

Protections: over charge, over discharge,reverse connection, over voltage, short circuit, reverse current, high temperature, low or over voltage input recovery etc.

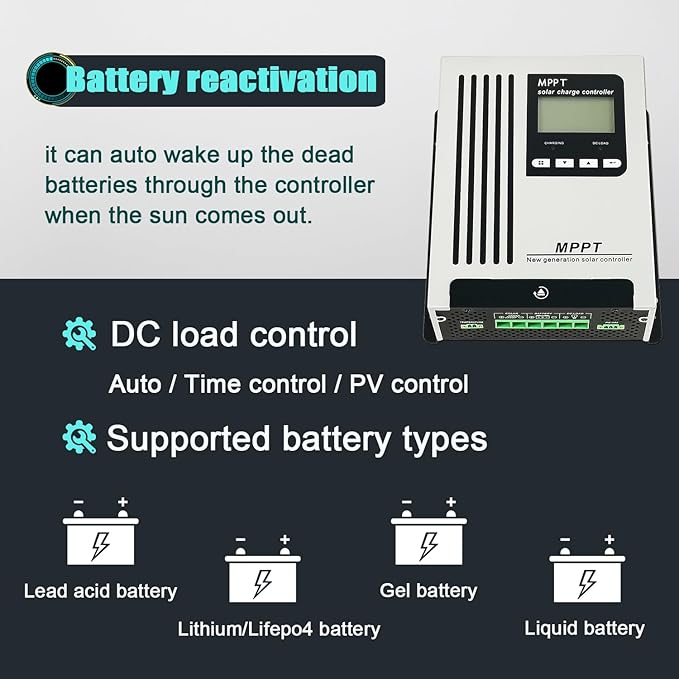

When the sun comes out, it can automatically "wake up" or "reboot" over-discharged lithium battery, enabling the lithium battery to be recharged.

Please connect the battery with controller first, then connect the solar panels with controller. About disconnection, please disconnect solar panel first, then disconnect the battery.

Please do not connect the inverter / battery / generator... directly with the DC load of controller. Household appliances with motors need to take into account that their instant start power is 3-5 times. The DC load has PV control, time control and auto control.

MPPT controllers and inverters have many intelligent protection functions and new working modes. These products are 100 % fully load burn-in testing before shipping to make sure the quality.
