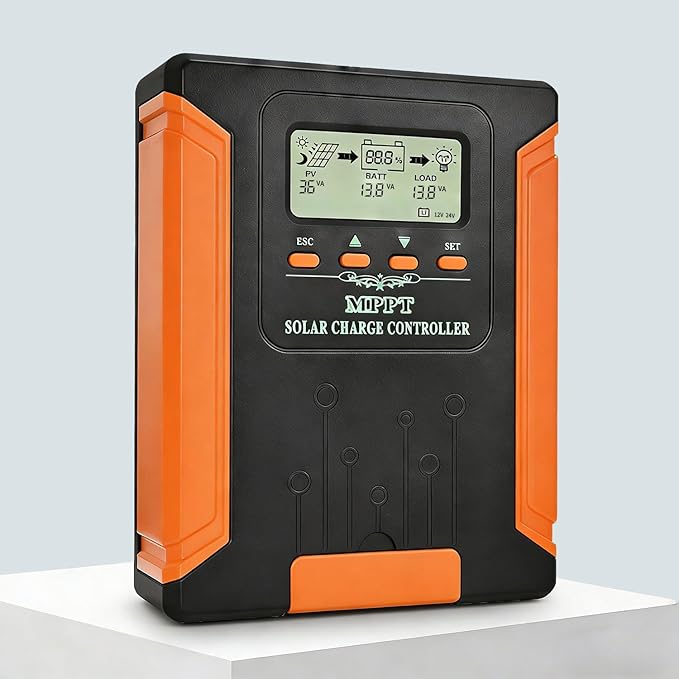

80A MPPT Solar Charge Controller 12V/24V/36V/48V DC Output for LiFePO4 AGM Sealed Gel Flooded Lithium Battery MPPT Controller with LCD Display for 18/160V Solar Panels (APP Control)

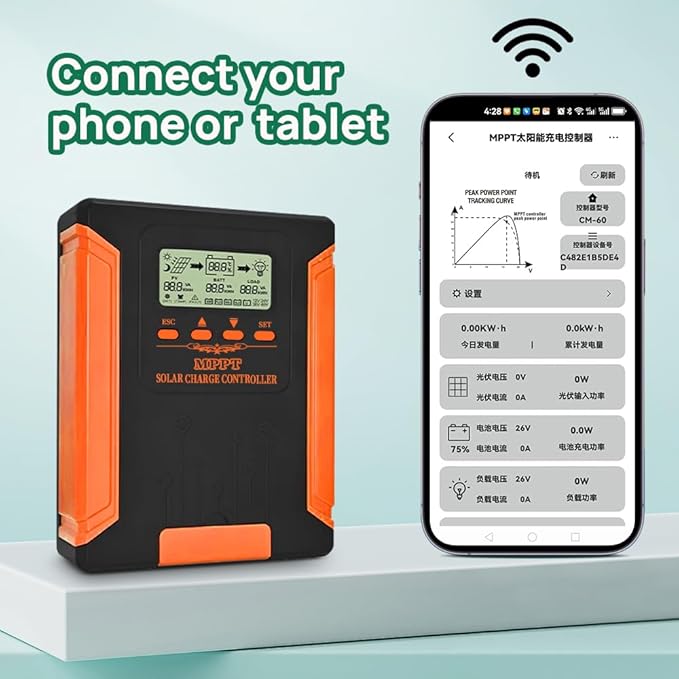

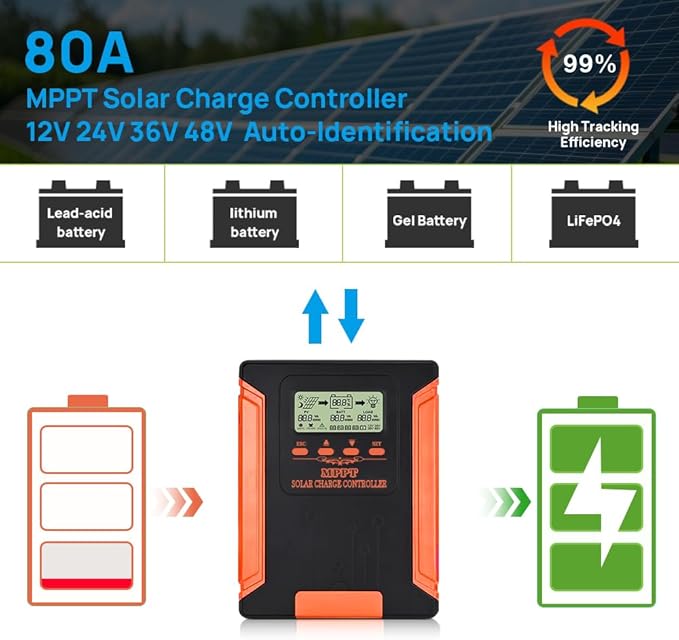

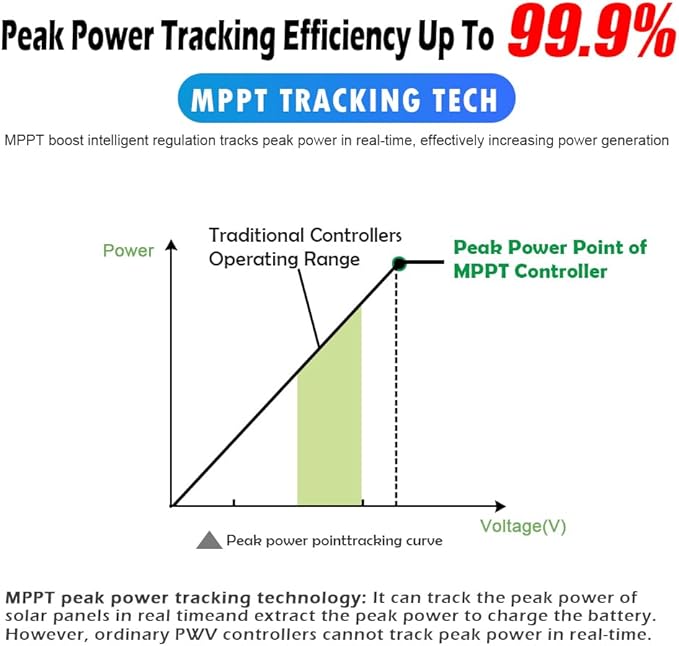

- ??【80A MPPT Solar Charge Controller】 Our MPPT controller features a high - ampere capacity of 80A and automatically recognizes system voltages of 12V/24V/34V/48V, and is compatible with solar panels within the 18 - 160V range. Ideal for both residential and industrial solar setups, it powers any device stably. - ??【Advanced/efficient tracking technology】Built-in maximum power point tracking algorithm that can track the peak power of solar panels in real time and extract it to charge the battery. Compared to traditional PWM controllers, this MPPT solar charge controller increases efficiency by over 30%, with a conversion efficiency of 99.9%, improving charging efficiency and extending battery life. - ??【Battery Versatility】 Our Solar Charge Controller is compatible with LiFePO4, AGM sealed gel, and flooded lithium batteries. You can freely select the most suitable battery for your requirements without any compatibility concerns, ensuring efficient energy storage and a reliable solar power system.? - ??【Smart Solar Control】 Remotely manage your solar system via WiFi/Bluetooth on our intuitive app, tracking charge status and total energy production. Ideal for home use, providing efficient energy management and reliable power solutions. - ??【Safety features】 This solar panel controller has a current limiting charging mode that ensures the charging current reaches the rated level when the panel power exceeds a certain level and the charging current is delayed. It also has comprehensive protections including overvoltage, short circuit, reverse connection, reverse charging, over temperature, and TVS lightning protection.

Product description

Solar Controller Quick Setup

1. Connect Battery

Only connect wires to BAT+ and BAT- terminals. Screen should light up, showing battery voltage.

2. Set Battery Type (Do this now)

Press SET to enter menu.- Select battery type (USE/FLD/GEL/SLD/LI). Use “UP/DOWN” to choose, press “SET” to save.

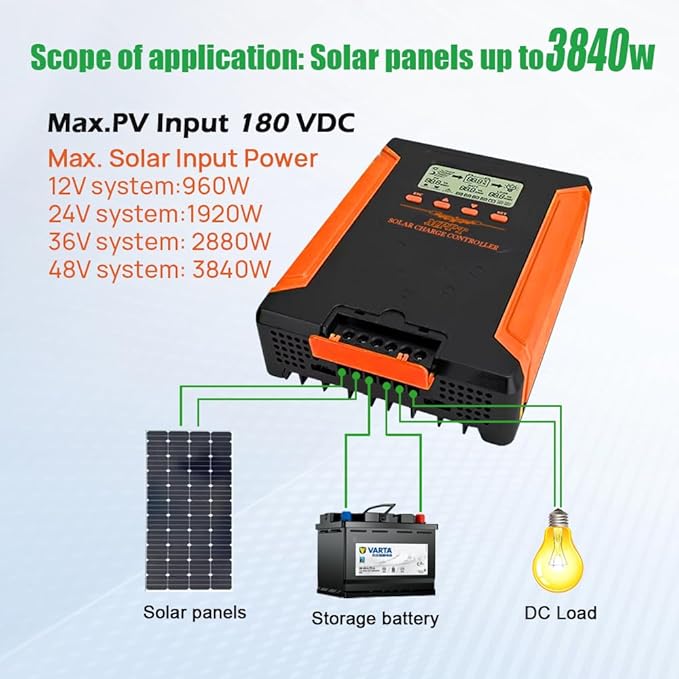

3. Connect Solar Panel

Connect wires to PV+ and PV- terminals.

Controller will detect voltage and start charging.

4. Connect Load (If needed)

After setup, connect devices to LOAD+ and LOAD-.

5.Final Check: Display should show solar charging in progress!
