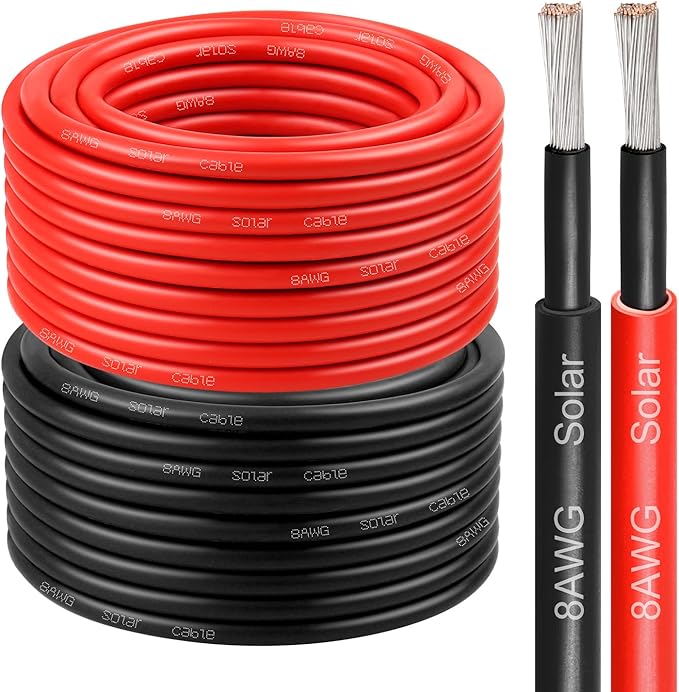

8 AWG Solar Cable 50FT Red + 50FT Black Tinned Copper Wire 8 Gauge Solar Panel Wire for RV Automotive Trailer Marine Outdoors
8 AWG Solar Cable 50FT Red + 50FT Black Tinned Copper Wire 8 Gauge Solar Panel Wire for RV Automotive Trailer Marine Outdoors
- [8 AWG TINNED COPPER WIRE]: The solar panel cable is made of 140 strands 0.295 mm tinned copper, which has better conductivity, thermal conductivity, and corrosion resistance than other common materials, extra-thick insulation can withstand extreme heat and cold. - [DUAL XLPE INSULATION]: Built with XLPE material sheath and insulation , withstand extreme heat and cold, working temperatures up to -40℉ to 248℉ (-40℃ to 120℃), anti-UV, anti-corrosion and Oxidation, longer service time. - [PROFESSIONAL SOLAR EXTENSION CABLE]: Temperature range: -40℉ to 248℉ (-40℃ to 120℃), rated voltage: DC 1800V, conductor resistance: (20°C) ≤2.06Ω/KM, weather resistance: UV, rated current: 60A. - [DURABLE AND SAFE]: This 8 AWG solar copper wire is IP68 Waterproof. And it has a UL94 V-0 flame retardant rating, which increases the feasibility of using the cable in severe weather such as rain, snow, and wind, and is suitable for outdoor solar panels, Roofs, boats, RVs, or cars powered by solar panels. - Excellent Solderability: Tin-plated surface enables smooth, fast, and reliable soldering, forming strong solder joints that reduce the risk of cold solder joints, thereby improving installation efficiency and lowering connection failure rates.
Product description
Ultra Solar Panel Wire
Tinned Copper Wire
Custom XLPE Sheath
Kimbluth Solar Panel Cable
Due to the multi-stranded wire, the conductivity is excellent and less resistance.

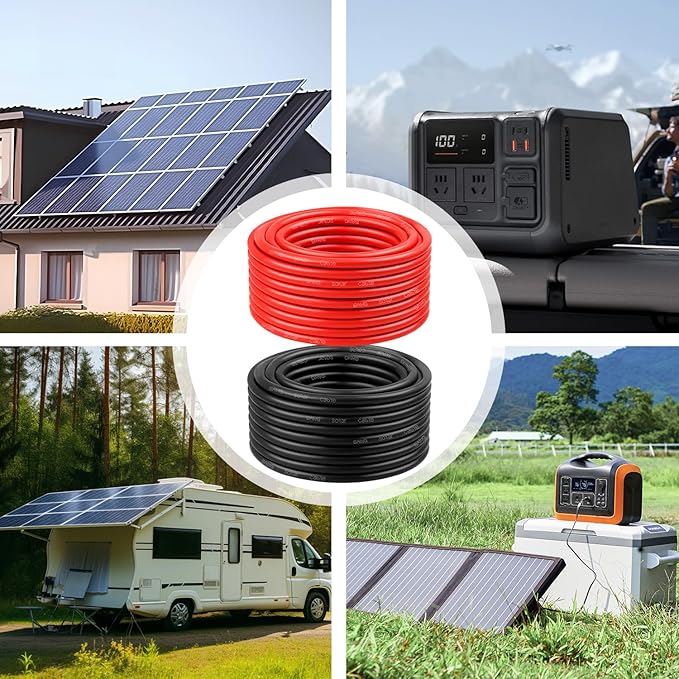

Solar extension cable is suitable for outdoor solar panels roofs, boats, cars, RVs, inverter wiring, etc.

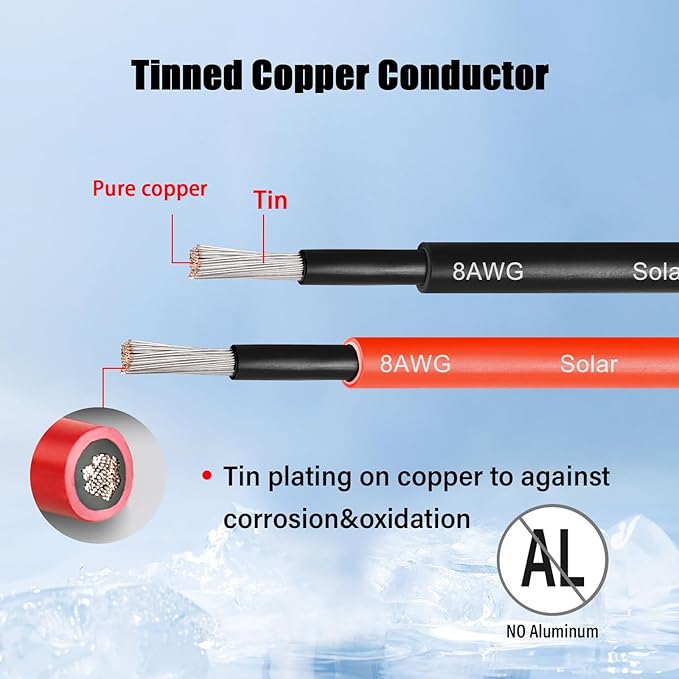

We make the wire by electroplating a layer of tin on the copper core. Tinned copper is mainly used to prevent OFC from oxidizing, effectively improving conductivity and extending the service life of the wire.

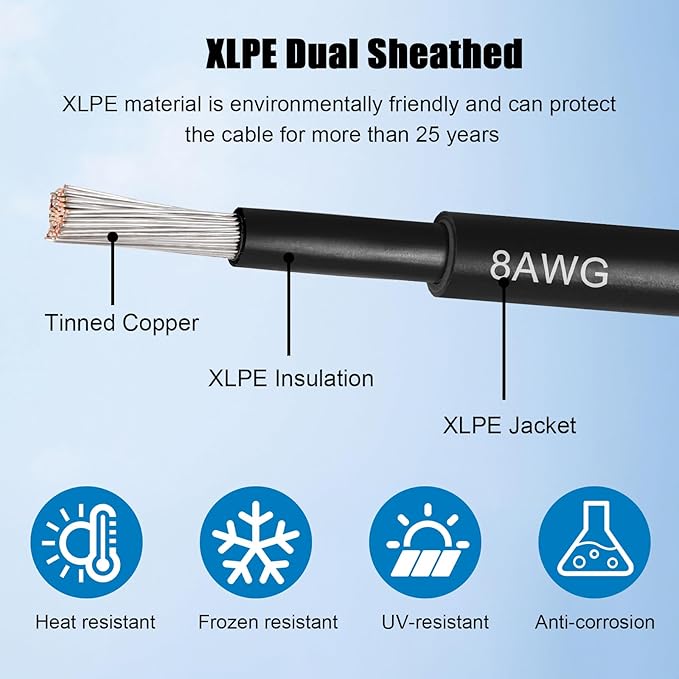

We use a double-layer XLPE that can effectively protect the inner conductor and strengthen the anti-oxidation ability to increase the service time.
Solar extension cable
Parallel solar extension cable
Solar wire
Cable core
single copper core
Cable core
2 copper core
Cable core
single copper core
Insulator
XLPE
Insulator
PVC
Insulator
XLPE
Connector
Both end with male to female
Connector
Both end with male to female
Connector
Non
Service Time
25+ Years
Service Time
20+ Years
Service Time
25+ Years
