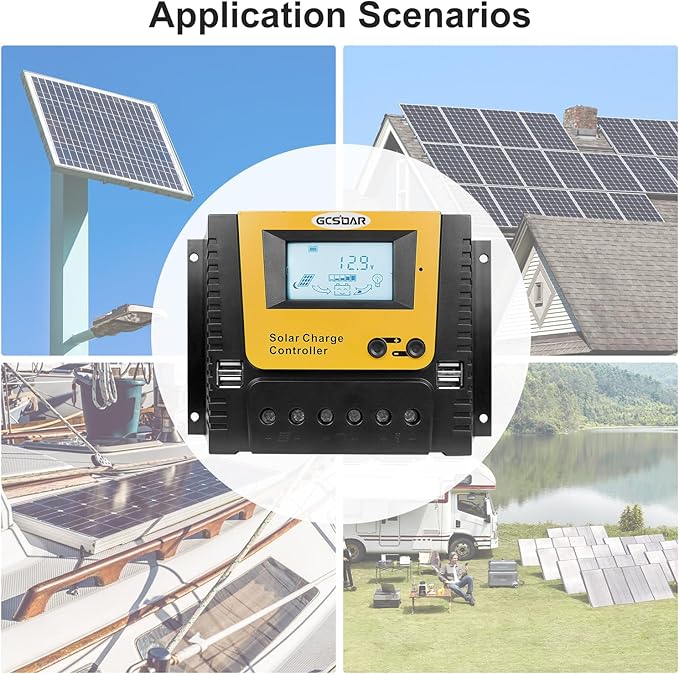

60A Solar Charge Controller 12V 24V 36V 48V Max PV 100VDC Backlit Display Solar Panels Off-Gird Quattro USB Intelligent PWM Regulator for LFP AGM SLD FLA BAT (60A)

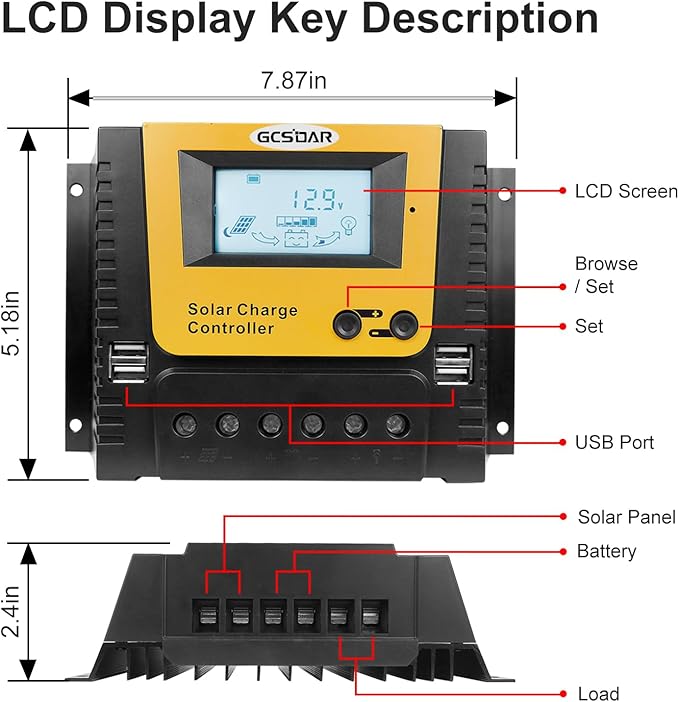

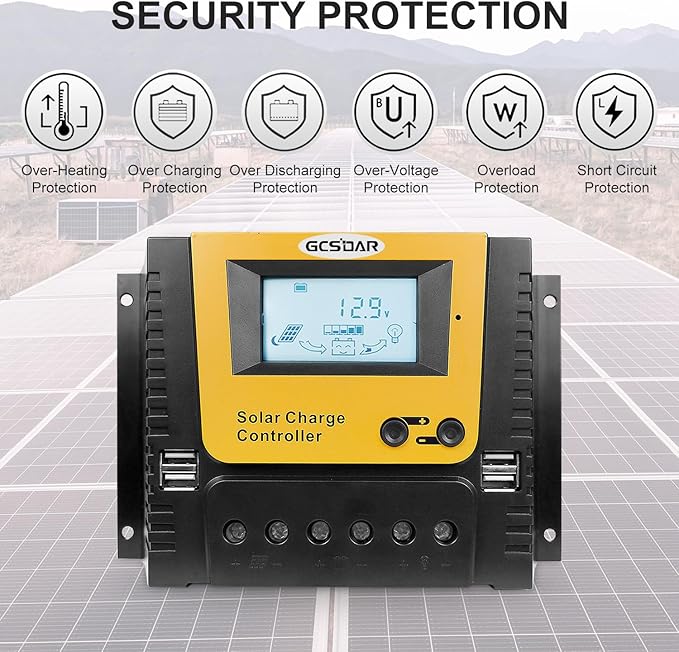

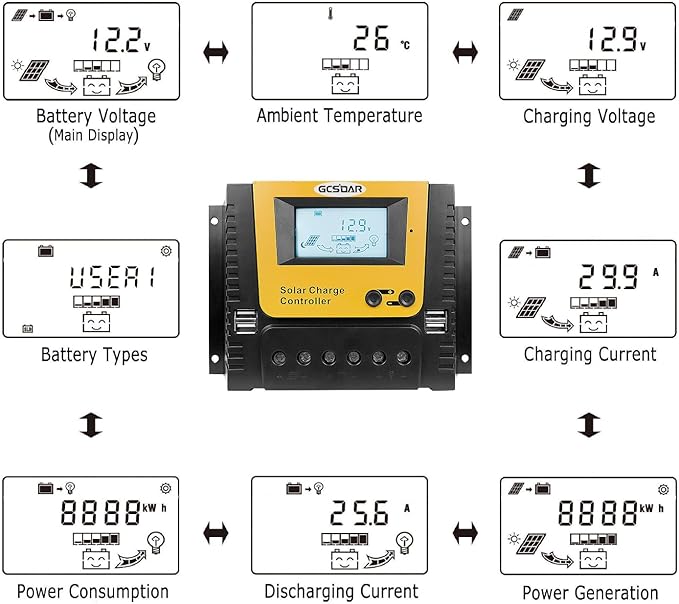

- 60Amp PWM Solar Charge Controller, 12V 24V 36V 48V Auto detect, Max PV Open Circuit 100 volts, Max. Input Power: 750W charge for 12V BAT; 1500W @24V BAT; 2250W @36V BAT; 3000W @48V BAT. Compatible with lithium-ion and lead-acid battery, support user-defined batteries, Built-in Quattro USB output 5V/2A (max), charging for your mobile phone, tablet, DC loads. - PWM 3 Stages Charging Technology: Controller equipped with advanced smart PWM technology with high charging efficiency by three stages charge modes(Bulk, boost, float), efficient and safe charge, effectively extend the battery life; combination of solar light control and time control, freely adjust the load enable duration. - Compatible with various 12V 24V 36V or 48v batteries, such as SEL, FLD, GEL, USE, LiFePO4 and ternary lithium types; with clear and special icons for various Lithium batteries on the LCD screen, easy select battery type; support user-defined batteries and calibrate battery voltage. - Built-in Backlight LCD Screen, real-time monitor: charging current, generated energy, temperature, battery voltage, and error codes, fast and easy set and commiss parameter. - Multiple Protections: Solar panel reverse-polarity; Battery reverse-polarity; Battery reverse-discharge; Over-Heating protection; Battery over-current; Load over-load; Load short-Circuit; Battery low-voltage.

Product description

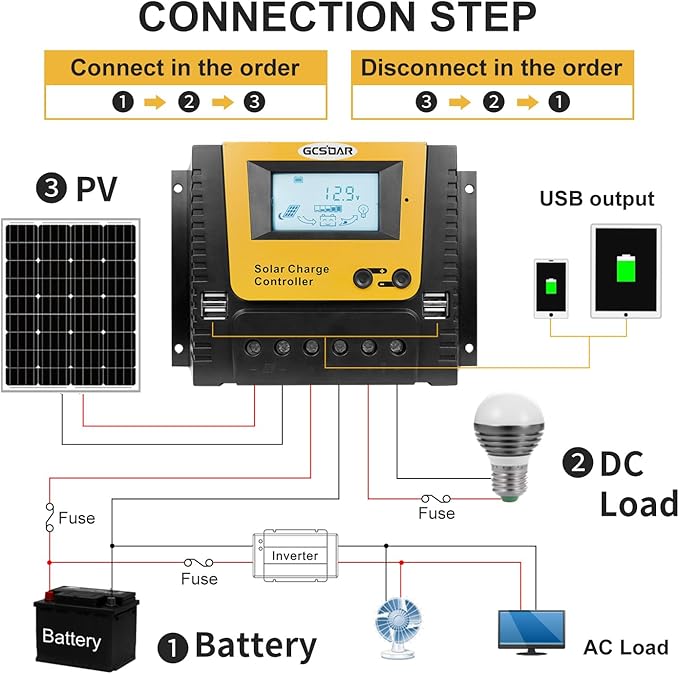

Connection Steps: Connect solar system in the order of 1.battery--> 2. load--> 3.PV array ; and disconnect solar system in the reverse order 3. 2. 1.

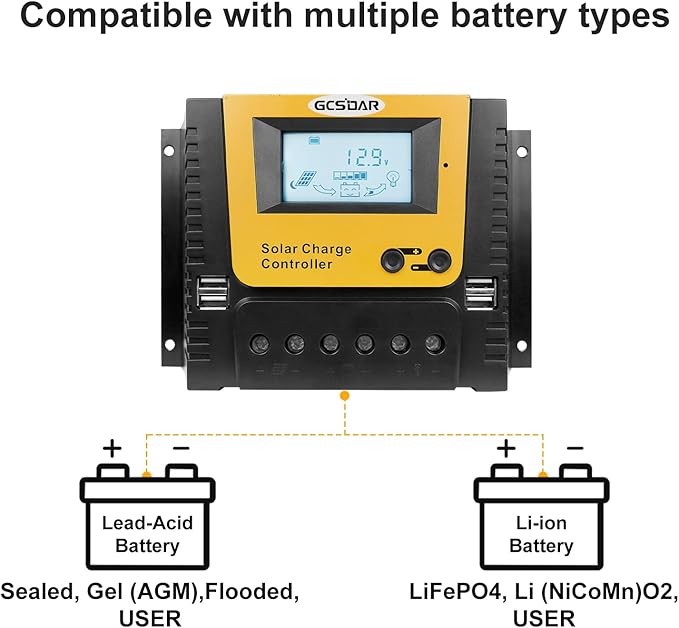

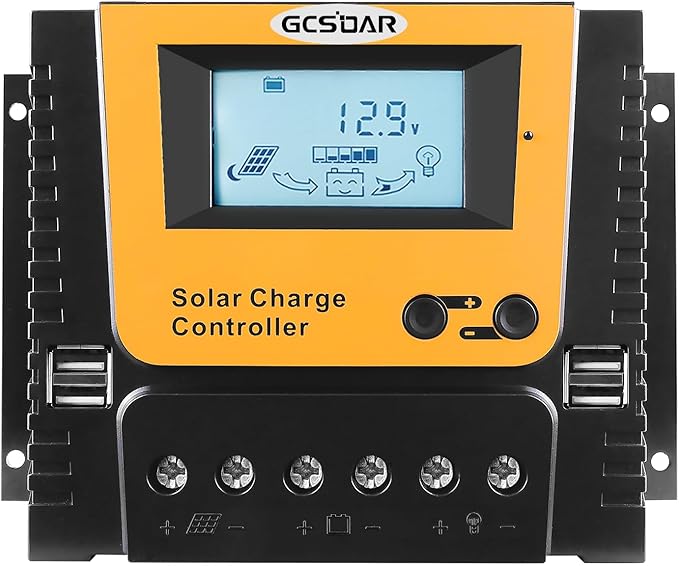

GCSOAR PWM Solar Charge Controller 60Amp ,12V/24V/36V/48V DC auto work , Solar Panels Max PV 100V , Max input Power 750W / 1500W / 2250W / 3000W. Common positive grounding. Applicable battery types : Lead-acid (Sealed / Gel(AGM) / Flooded),Lithium-ion (LiFePO4, Li[NiCoMn]O2) and User-defined

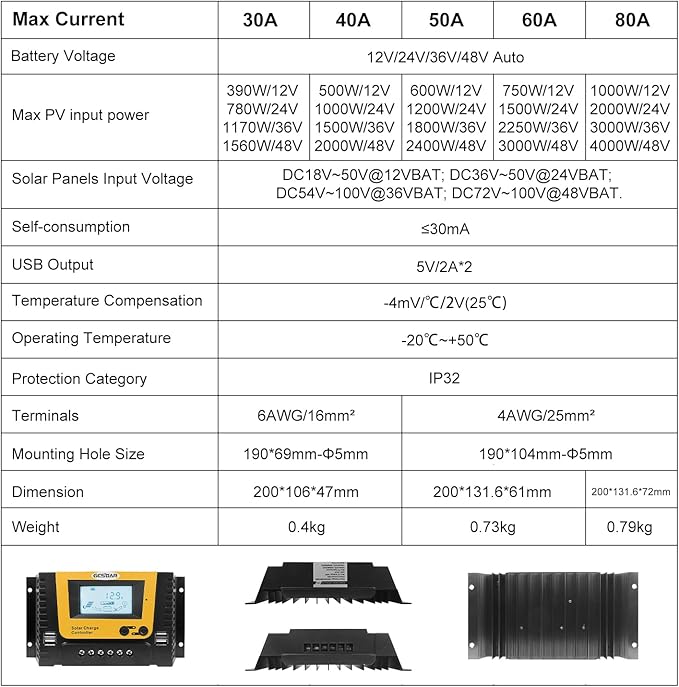

Technical Data:
