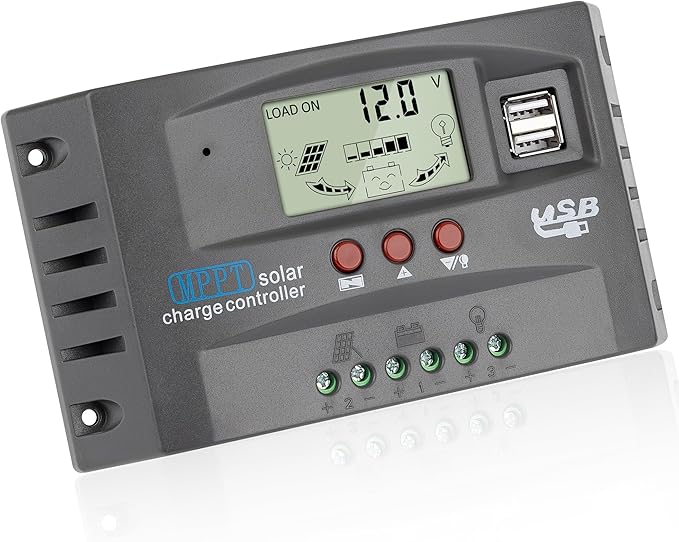

60A MPPT Solar Charge Controller 12V/24V Auto Tracking Solar Panel Regulator with Dual USB Port LCD Display and 3 Timer Settings Suitable for Lead-Acid/Lithium-Ion/Lithium Iron Phosphate Battery Grey

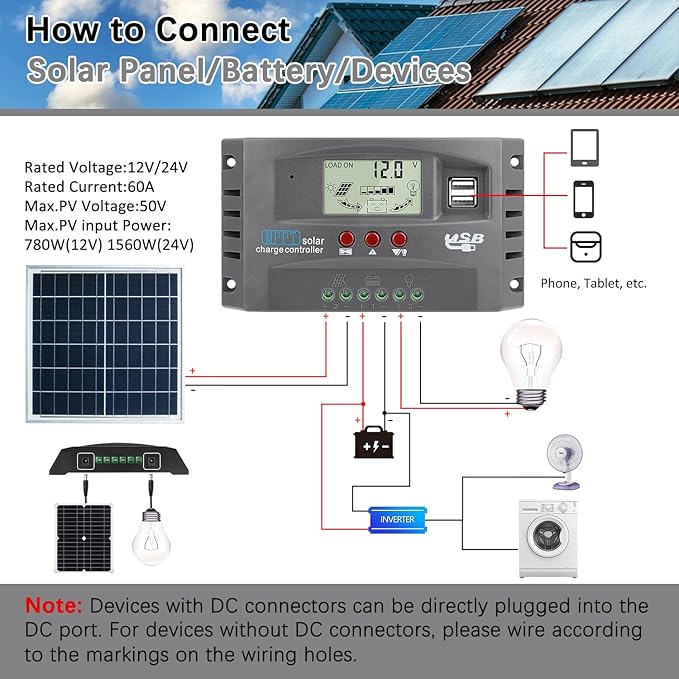

- Upgraded MPPT Solar Panel Controller: The 60A solar controller adopts innovative MPPT technology and is equipped with an industrial-grade main control chip. Its tracking efficiency can reach up to 99%, and its charging efficiency is 15-30% higher than that of standard controllers (continuously detecting during the charging process, with bidirectional focusing tracking and automatic focusing tracking for charging). Anti-backflow circuit design, ultra-low heat generation. - Compatible Battery Types：The 60A MPPT charging controller is compatible with various lead-acid batteries (including open, sealed, AGM batteries, etc.). If you want to charge lithium batteries, you need to be very familiar with the characteristics of lithium batteries. After connecting the power, the charging parameters must be set properly before use. - Automatic Recognition of 12V/24V: After connecting the positive and negative terminals of the battery to the controller as shown in the diagram, the controller will automatically detect the battery voltage and automatically identify 12V/24V. When installing for the first time, please ensure that the battery has sufficient voltage so that the controller can recognize it as the correct battery type. - Upgrade to 8 Types of Protection：The newly upgraded 60A MPPT solar panel controller offers 8 types of protection to safeguard your equipment, including overcurrent protection, short circuit protection, open circuit protection, reverse connection protection, overload protection, overcharge protection, undervoltage protection, and overvoltage protection. All of them are self-recovering and will not damage your controller. It features a complete three-stage charging management system, safely enhancing system efficiency and extending battery life. - LCD Display Screen: Through the LCD display, you can understand the charging status and data in real time, such as battery voltage, light-controlled delay turn-off time, charging and discharging current, battery power, load on, etc. By pressing the menu key, up key and down key, you can conveniently switch modes and parameter configurations. Moreover, the controller is equipped with functions such as power-off memory. - 3 Load Operation Modes: The 60A MPPT charging controller provides three load modes, namely:【24H】Load output 24Hours (except for battery under voltage)；【1-15H】Load on after sunset and closed after setting hours；【0H】Dusk to dawn. You can choose the mode according to your needs. - Battery Type: b1 represents lead-acid batteries (12V/24V automatic recognition); b2 represents lithium-ion batteries (3 series 11.1V lithium batteries); b3 represents lithium iron phosphate batteries(4 series 12.8V). The default factory setting is b1. - Dual USB Output: The 60A controller offers two USB output ports with a maximum current of 2A, allowing you to charge your mobile phones, tablets, personal computers and other devices. - Widely Applied: This 60A MPPT solar panel battery charging controller is suitable for various solar panels, such as recreational vehicles, rooftops, yachts, camping solar panels, and can also be used in homes, industries, commercial and other places. This controller will generate heat (low heat output) when in operation. Please install the controller on a flat and well-ventilated surface. - Reliable Sales Service: We offer a 12-month quality guarantee and technical support for this 60A solar cell charging controller. If you have any questions, please feel free to contact us at any time.
