600 Watt 24Volt Solar Panel Kit 6X100W Monocrystalline Module 50A Charge Controller for RV Boats Trailer CamperOff-Grid System (600W Solar Kit)

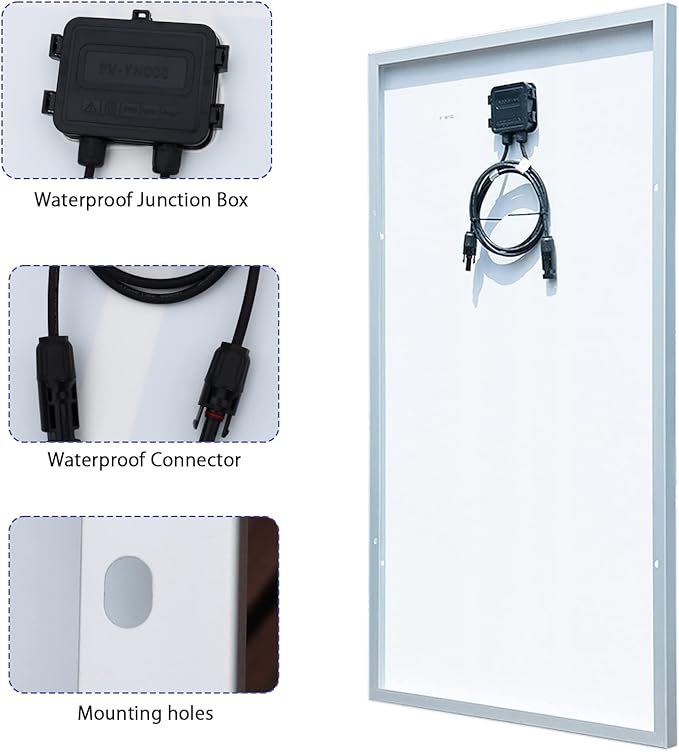

- Robustness : High quality encapsulation material , corrosion resistant aluminum frame , IP65+ waterproof rating . Can withstand high wind (2400 Pa ) and snow load (5400 Pa ) , can work in harsh environment such as ocean , desert . - High efficiency：WUZECK solar panels are made of high performance PERC monocrystalline silicon cells with a conversion rate of 23%. Higher efficiency with sufficient light conditions. - High quality performance : The junction box has built-in bypass diode to effectively protect the solar panel . Prevent the solar panel from overheating during the power generation process and continue to work in a sheltered environment . The controller of the kit has the functions of battery overcharge protection , overload protection and short circuit protection . - Easy installation: The aluminum frame of the solar panel is pre-drilled and can be installed using the Z-bracket included in the kit. The solar panel is used with a black extension cable for quick installation and fixing. - Multiple uses: The solar panel kit is ideal for 24V batteries and the Charge Controller in the kit is compatible with four different types of batteries: Sealed, Gel, Flooded, and Lithium batteries. Ideal for off-grid applications, including RVs, rooftops, cabins, boats, trailers, caravans, trucks, homes, etc.

Product description

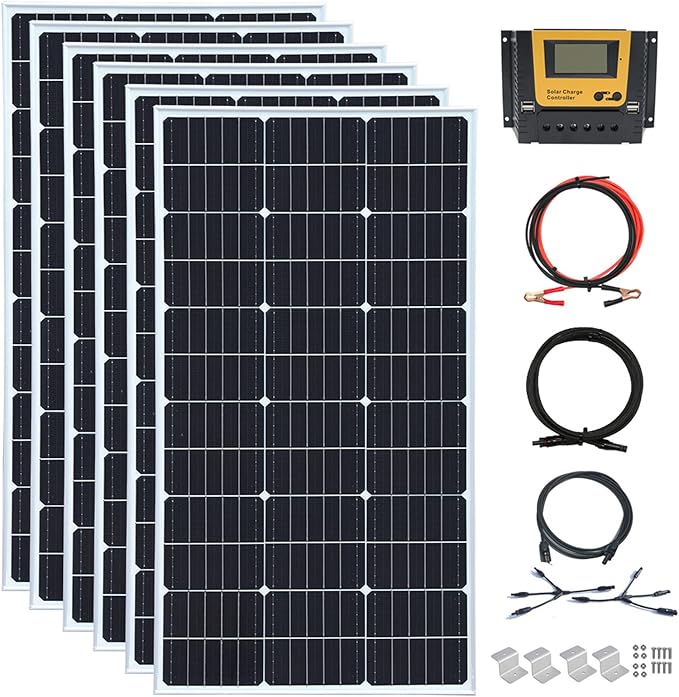

This solar panel kit includes solar panel, controller, extension cable, battery connection cable, and mounting bracket. It is a starter kit for solar system and easy to install. This starter kit can be installed on your RV, boat, trailer, cabin, truck, home, etc. Together with the battery and inverter, you can get an off-grid charging system that provides secure power support. You can enjoy your trip and have a powerful emergency device.

Maximum Power Output: 100W

Maximum Power Voltage (Vmp): 19.8V

Maximum Power Current (Imp): 5.05A

Open-Circuit Voltage (Voc): 23.76V

Short-Circuit Current (Isc): 5.55A

Maximum System Voltage: 1000V DC

Weight：13.22lb/6kg

Dimensions: 41.14x21.65 x0.98

inch/104.5x55x2.5cm

Max Current：50A

Battery Voltage：12V/24V/36V/48V Auto Max PV Open Circuit Voltage：100V

USB Output:5V/2A *2

Operating Temperature:-20℃~+50℃ Protection Category:IP32

Humidity:95%, no-condensing Mounting Hole： 190*104mm-Φ5mm Dimension:200*131.6*61mm Weight:0.73KG

Support more kinds of battery: Lead-acid battery (Sealed, Gel, Flooded) and Lithium battery (LiCoMnNiO2, LiFePO4)

ype：Z-type

Suitable for: RV, Caravan, Yacht, Motorhome, Flat Roof

Material of bracket: Aluminum Alloy

Material of r screw and nut: Stainless steel

Color: silver

Size: as shown

Cable specification: 2.5mm2(AWG14)

Rated Current: 30A

Rated voltage: 1000VDC

Waterproof degree:IP67

Safety Class: 2

Insulation material: PPO + PA

Connecting system: crimping connection

Cable length: 31cm
