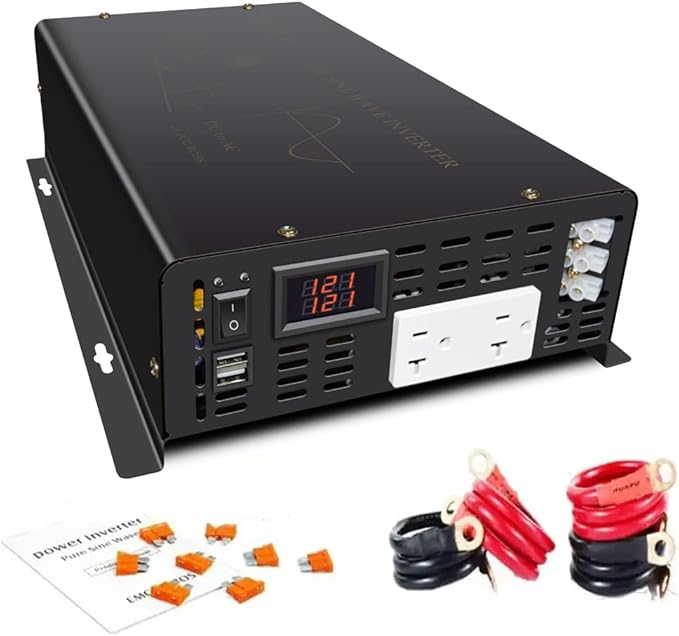

5000Watt Pure Sine Wave Power Inverter 12VDC to 120VAC 10KW Peak Built-in Soft Starter Dual AC Outlets 2× 2.4A USB Port &Hardwire Terminal Off-Grid Solar Converter RV Trucks (U5-500012)

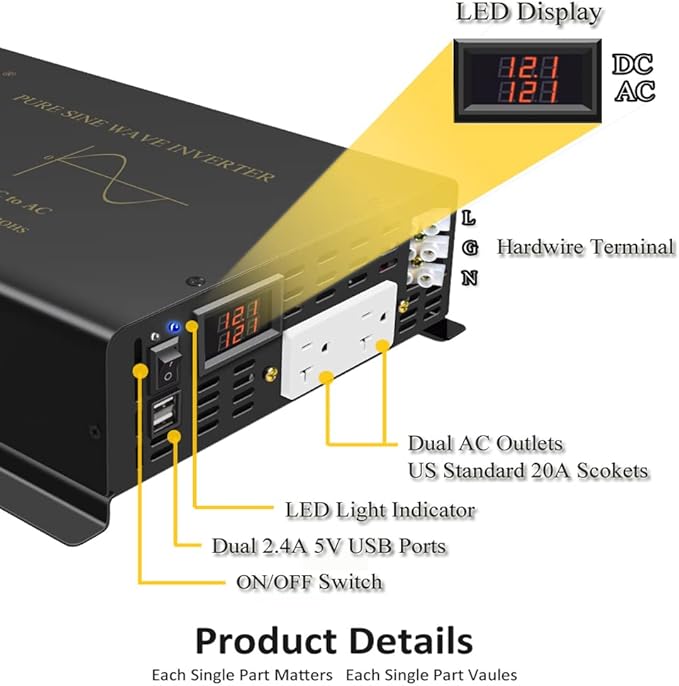

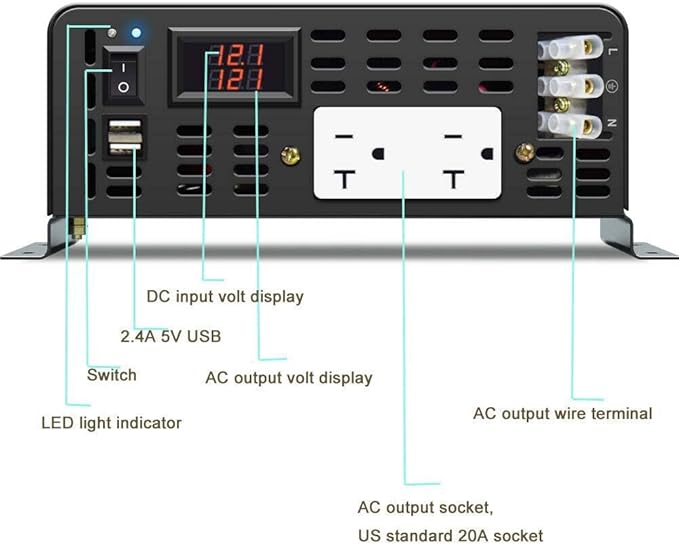

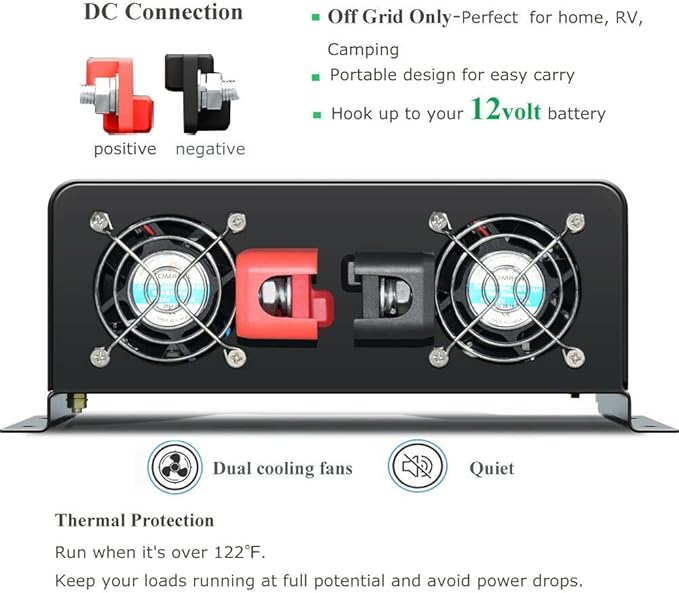

- 【Pure Sine Wave】Provides 5000 watt pure sine wave DC 12 volt to AC 120 volt continuous stable output power ,60HZ ,single phase, high frequency, ideal for motorhome, emergency household power supply back-up, car vehicle camping, industrial, etc. - 【Stable Output】High quality material ensure the stable and full AC output. 41.6Amp Max capacity, with 2* 120VAC outlets, 2*2.4Amp USB ports, and 1* heavy-duty 120VAC hardwire terminal. - 【Fully Safety Protections】Over voltage, Low voltage, Overload, Short circuit, Over heat, polarity reverse protection(fuse), Ground protection from leakage of electricity. Intelligent cooling fan works when the temp is over 50 degree Celsius. - 【Digital LED Display】Monitor power usage with no effort. LED Display for both DC volt and AC volt which makes the power usage clear. Keeping track of voltage changes in real time , this is a good backup power supply for off grid system or emergency like power failure - 【Soft Starter Design】Built-in soft starter-AC voltage rises smoothly, reduces the instantaneous impact of surge current , effectively extends the service life of electrical appliances

From the manufacturer

Q&A:

1.Q: What kind of the inverter is suitable for your appliances?

A: Pls know that load is divided into resistive load and inductive load .If you need the inverter to run the resistive load (like laptop, TV, electric cooker,LED light), please choose the inverter with continuous power higher than the appliance's rated power. And it is best to use 80% of the rated power. If you use microwaves,water pumps, air conditioners and other appliances with motors or compressors ,please choose the inverter whose continuous power is 3-7 times higher than your appliances.If you want to power up a refrigerator, we suggest you use 10 times higher power inverter

2.Q: Why the inverter can't be turned on ?

A: 1)Pls fully charge the battery before installing the inverter . There are some large capacitors built into the inverter, so it may be in the low-voltage protection or even unable to turn on when the battery power is low

2)As there is a soft start function, please turn on the inverter first then turn on your loads, or the output may not stable and not output normally

3)Pls check whether there is overload

3.Q: Why does the inverter automatically shut down when running loads ?

A:1). Pls check If there is a fuse or breaker installed in your system Generally,we recommend that a 500Amp fuse be installed between the inverter and the battery for the 5000W 12volt dc version.

2). Pls check if use standard cables all . If 4 cables, please use them all, or the output will only be about a half. If you use your own cable, please make sure that the cable specification is larger than AWG 4, and if the length exceeds 24 inch, please thicken the cable .

Note that there is a voltage drop between the battery and the inverter. The thinner and longer the cable, the greater the voltage drop

3). Pls check if the battery capacity is too small .We recommend connecting to a battery system ≥ 500AH for a 5000 watt 12VDC inverter.When the DC LED reading drops while the load is running, it is likely that your battery capacity is too small to supply power to the load. Please try to add other batteries to your previous battery system.

4.Q: Can the output voltage be adjusted?

A: During use, due to load or other factors, the output voltage may deviate from the normal use range.Please kindly known that the output voltage can be reset in a certain range at your end

Load is divided into resistive load and inductive load .If you need the inverter to run the resistive load (like laptop, TV, electric cooker,LED light), please choose the inverter with continuous power higher than the appliance's rated power. If you use microwave,Water pump,air conditioners and other appliances with motors or compressors,please choose the inverter whose continuous power is 3-7 times higher than your appliances.If you want to power up a refrigerator, we suggest you use 10 times higher power inverter
