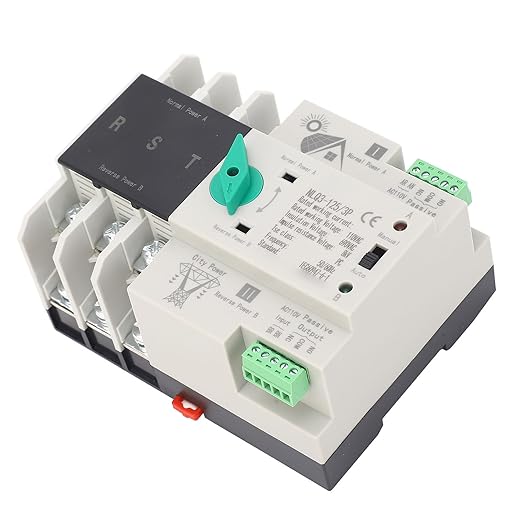

3P 110VPower Automatic Transfer Switch 100A Din Rail Type Mini ATS Backup Emergency Power Electrical Selector Generator Changeover Switch

- ?【IMPORTANT PARAMETER】 Switch Type : Secondary Power Distribution | Rated Current : 63A/100A (Optional) | Rated Frequency : 50Hz , 60Hz | Electrical Level : PC Grade Isolated | Auxiliary Circuit : 2 Relays , Each relay has two sets of contacts | Capacity : AC110V50HZ le=5y | Touch Time : <50ms | Operation Transition Time : <50ms | Return Time : <50ms | Closing Time : <50ms - ?【RELIABLE AND STABLE】 When there is an abnormality in the normal power supply , the electrical selector switch can instantly switch to the emergency power supply , supporting both automatic and manual operation , switching in milliseconds without cutting off the power supply , ensuring continuity and reliability . - ?【SUPERIOR DURABILITY】 The generator changeover switch is made of flame retardant PC material , with good insulation , high temperature and other characteristics , very rugged and , and the use of silver contacts , anti aging , and for reliable , and greatly improves the conductivity and service life . - ?【EASIER INSTALLATION】 The emergency power changeover switch is compact , measuring only 125*96*69mm / 4 . 92*3 . 78*2 . 72inch , lightweight and easy to install , and can be mounted on a standard 35mm DIN rail , making it easy to adapt to most applications . - ?【WIDE RANGE OF USAGE】 This 3P 110Vpower automatic transfer switch can be used in various places where continuous power failure is not allowed , such as bars , restaurants , KTV , etc . In addition , thispower automatic transfer switch is also very suitable for home use .

Product description

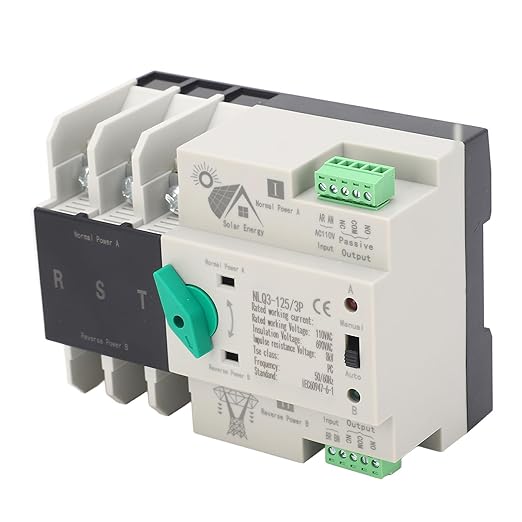

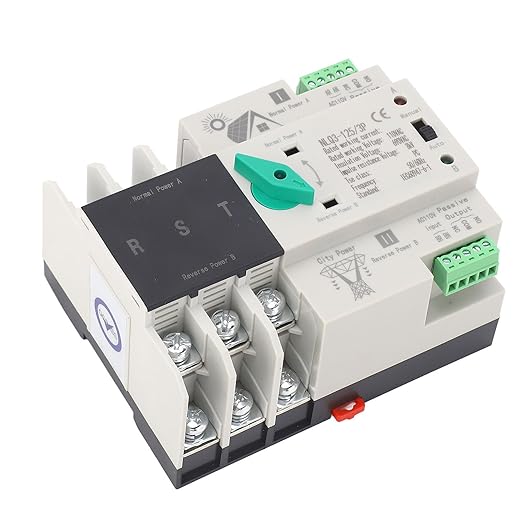

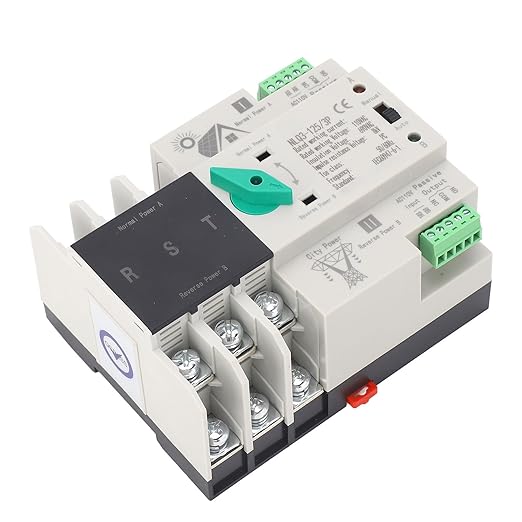

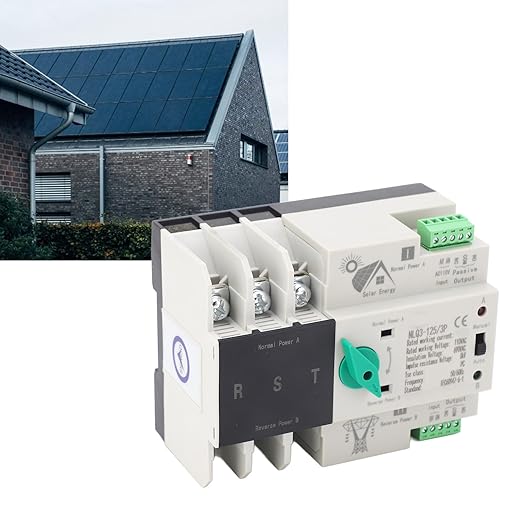

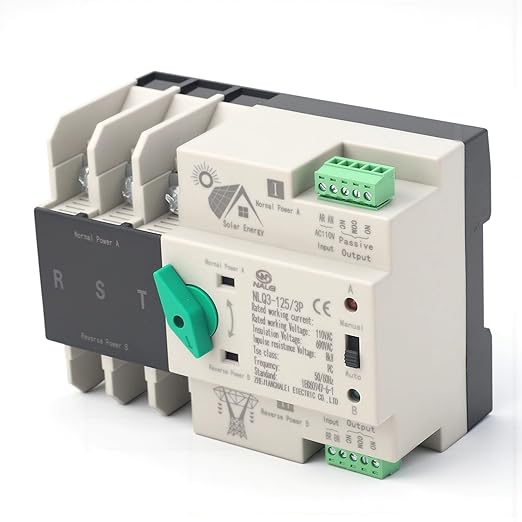

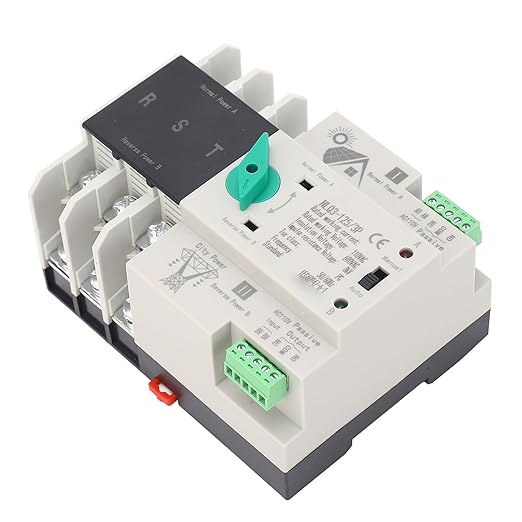

3P 110V Dual Power Automatic Transfer Switch 100A Din Rail Type Mini ATS Backup Emergency Power Electrical Selector Generator Changeover Switch

? EASIER INSTALLATION The emergency power changeover switch is compact, measuring only 125*96*69mm / 4.92*3.78*2.72inch, lightweight and easy to install, and can be mounted on a standard 35mm DIN rail, making it easy to adapt to most applications.

? IMPORTANT PARAMETER Switch Type: Secondary Power Distribution | Rated Current: 63A/100A (Optional) | Rated Frequency: 50Hz, 60Hz | Electrical Level: PC Grade Isolated | Auxiliary Circuit: 2 Relays, Each relay has two sets of contacts | Capacity: AC110V50HZ le=5y | Touch Time:

? SUPERIOR DURABILITY The generator changeover switch is made of flame retardant PC material, with good insulation, high temperature and other characteristics, very rugged and, and the use of silver contacts, anti-aging, and, and greatly improves the conductivity and service life.

AUTOMATIC AND MANUAL : This dual power automatic transfer switch can be operated automatically or manually, providing flexibility and convenience. It allows for millisecond switching without power interruption, ensuring continuous and .

COMPACT STRUCTURE AND TRANSMISSION: With a compact design and transmission, this switch guarantees power transfer and efficient performance. It also provides a long lifespan, making it a durability and dependable choice.

PC SILVER ALLOY MATERIAL: Made of premium PC flame retardant plastic material and featuring silver alloy contacts, this switch ensures excellent insulation, high temperature, anti aging properties, and safety.

EASY INSTALLATION AND MAINTENANCE: The switch is designed with standard 35mm rail mount installation, allowing for easy and convenient installation. It also requires minimal maintenance, reducing downtime and additional efforts.

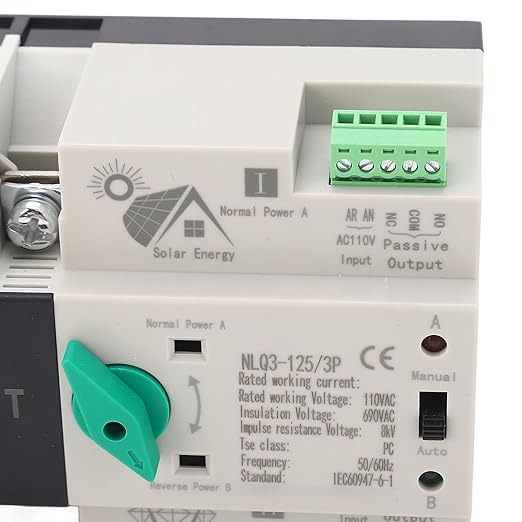

Specification:

Material: PC Flame Retardant, Silver Alloy

Switch Type: Secondary Distribution

Rated Current: 100A

Rated Frequency: 50Hz 60Hz

Electrical Level: PC Class Isolation Type

Control Circuit:

Auxiliary Circuit:

Two Relays, Each Relay has Two Sets of Contacts Capacity: AC110V50HZ le=5y

Touch Time: Operating Transfer Time: Return Time: Closing Time:

packing list:

1 x Transfer Switch

1 x User Manual

Note:

1. The maximum ambient temperature should not exceed 40?, and the minimum should not be below ?5?. The average temperature within 24 hours should not exceed 35?.

2. The installation site's altitude should not exceed 2000m.

3. When the maximum temperature reaches 40?, the relative humidity at the installation site should not exceed 50%. When the temperature is at the lowest point of ?5?, the relative humidity is higher, for example, at a temperature of 25?, the relative
