2 String Solar PV Combiner Box 2 in x20A 1 Out x 32A IP65 DC1000V 32A Disconnect Switch with Surge Protector and 20A PV Fuse Circuit Breaker Outdoor IP65 Waterproof for Solar Panels System

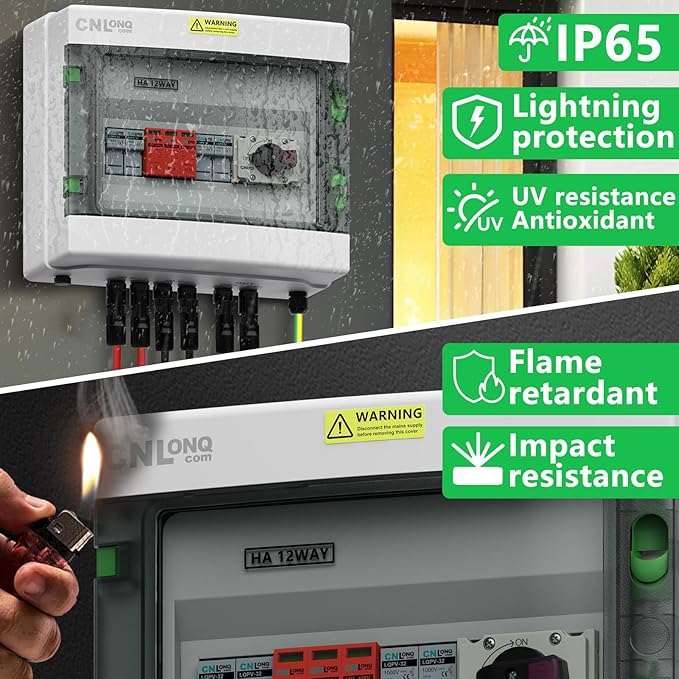

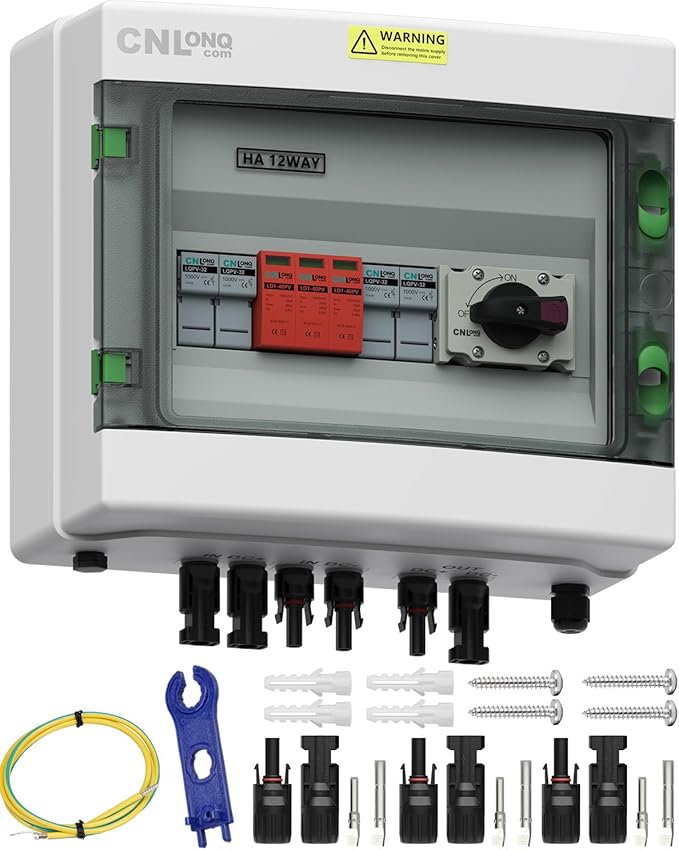

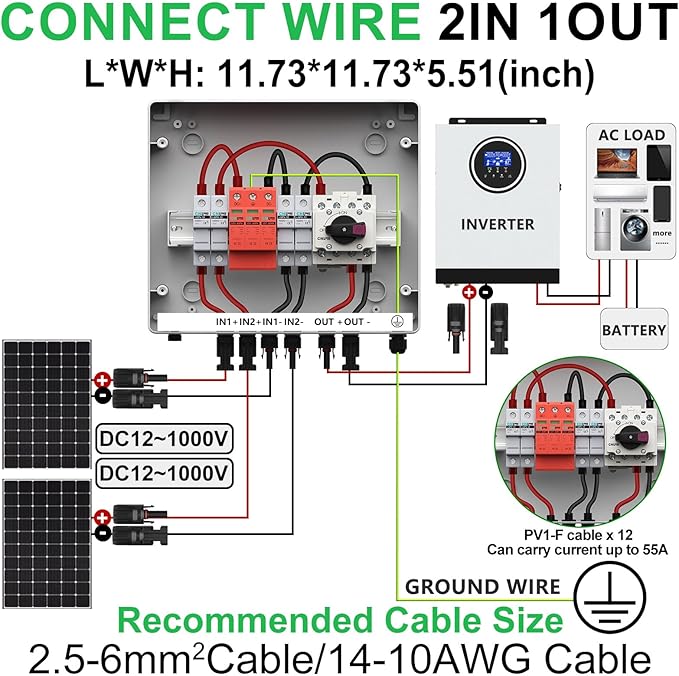

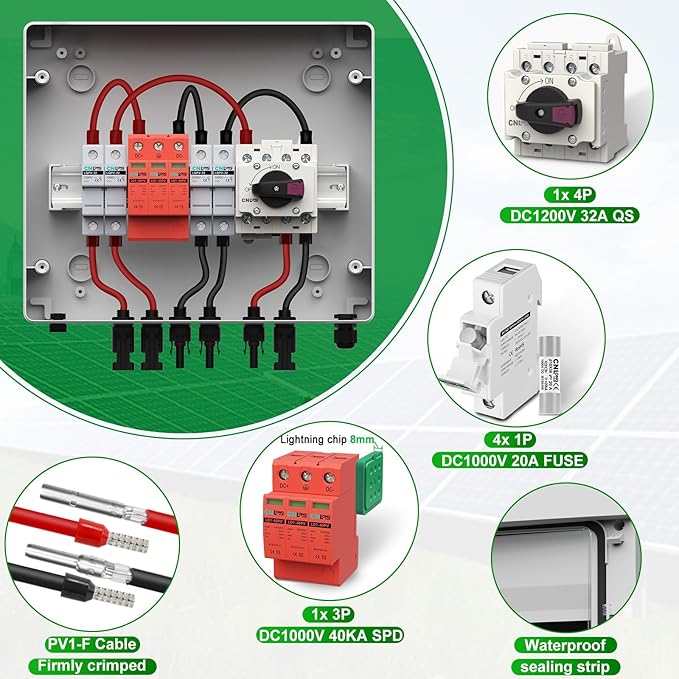

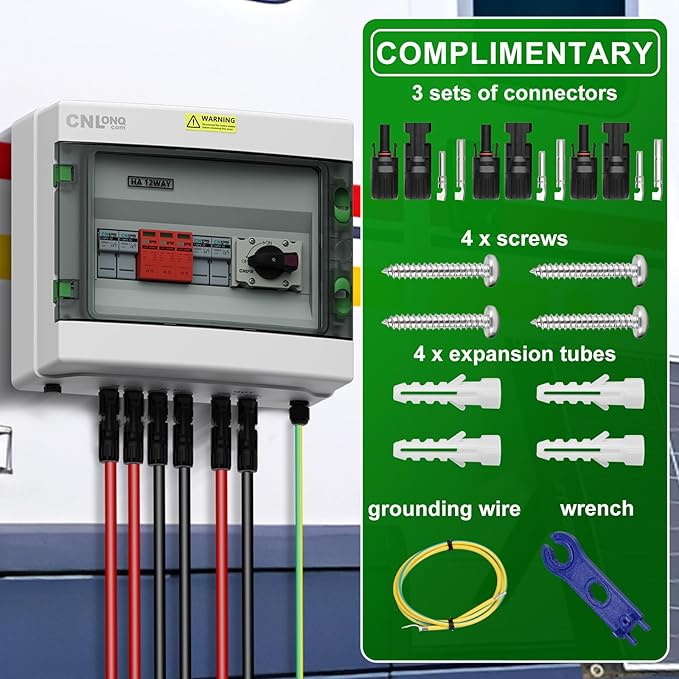

- [2 Input 1 Output PV Combiner Box]: CNLonQcom's solar combiner box is designed to optimize the connection between the PV array and the inverter. The device supports up to 30kW of power in a 1000V system. The device has a maximum input current of 20A per string and a maximum output current of 32A per string and provides overvoltage, overload and quick disconnect features to ensure the safety of the PV system - [Isolator+SPD+FUSE]: CNLonQcom's PV Combiner Box are equipped with 32A DC1000V disconnect switch, DC1000V T2 surge protector and 20A DC1000V fuse. Capable of switching circuits and providing short circuit, overvoltage, leakage and lightning protection - [Durable IP65 Waterproof Box]: The junction box is made of high quality PC+ABS material and is IP65 waterproof, flame retardant and UV resistant. It is suitable for both indoor and outdoor use and is resistant to sand, dust and rain - [Easy Wiring and Wall Mount]: CNLonQcom's Solar Combiner Box come pre-wired with 10AWG PV1-F cable inputs and jumpers to simplify installation, just connect the outputs and ground wire. A free ground wire is included in the package for use if needed - [Application]: Designed for grid-tied or off-grid solar systems, including solar panels, RVs, boats, rooftops, and other wind or solar systems. Supports up to 720W in a 12V system, up to 1440W in a 24V system, and up to 2880W in a 48V system, making it a powerful and reliable solution for small to medium-sized solar projects

Product description

Solar Panel Installation: Essential Components

Is this combiner box safe and reliable?

What are the certifications?

Can it be used outside?

What are the advantages over other combiner box on the market?

Why choose the CNLonQcom brand?

Product Comparison

Is this combiner box safe and reliable?

All the products have passed the quality inspection and are able to safely protect your circuits from accidents.

What are the certifications?

CE, IP65, TUV, UKCA, CB, AZ, ROHS, ISO certifications have been obtained and more will be obtained in the future.

Can it be used outside?

Yes, it is IP65 waterproof and can withstand stormy weather or sandy conditions.

What are the advantages over other combiner box on the market?

We have more than 20 years of PV experience, which makes us a source factory for PV protection equipment with price and quality advantages.

Why choose the CNLonQcom brand?

CNLonQcom has been engaged in the research and production of photovoltaic protection equipment since 2002, possessing advanced technology and equipment. Therefore, compared with its peers, we offer superior quality and reasonable prices
