15A MPPT Solar Charge Controller 12V 24V Auto TD2107 WiFi Adapter APP Remote Control Solar Panel Charger for Gel AGM Sealed Flooded Lifepo4

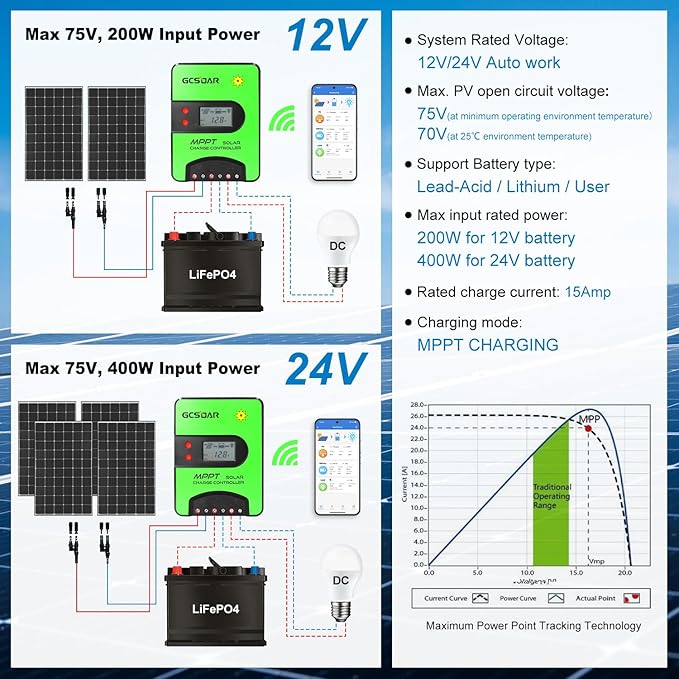

- GCSOAR MPPT Solar Charge Controller 15Amp TD2107(WiFi), compatible with 12V or 24V battery system auto, Solar panel Max PV 75V, Max input Power 200W charge for 12V battery or 400W charge for 24V battery - Built-in WiFi module : Remote monitor and set parameters via APP(iConnect). suitable for home or other environments that can provide 2.4G router wireless network access, can cover a large range, high speed network connection, not limited by distance when there is a network signal. Download APP for Android or iOS, You could watch video tutorials within the APP - 4 Stage Safely Charging: Features 4-stage charging (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithium batteries as well as Lithium Reactivation. Intelligent charging method prolong your battery’s life. 12V/24V Auto Detect and Multi-Cell Adaptation for sealed lead-acid, GEL and flooded batteries. Lithium batteries require manual selection to set the battery system voltage to 12V or 24V, while allowing the user to manually customize the mode to adjust the battery parameters - Die-cast aluminium design ensuring excellent heat dissipation and Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day - Extremely Safe: Full system protection from program and insulated shell safeguards your solar system. The intelligent self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, overheating, and reverse current. The certificated TD charge controller with insulated shell prevents you from accident and keep your solar system in safe in high temperature

Product description

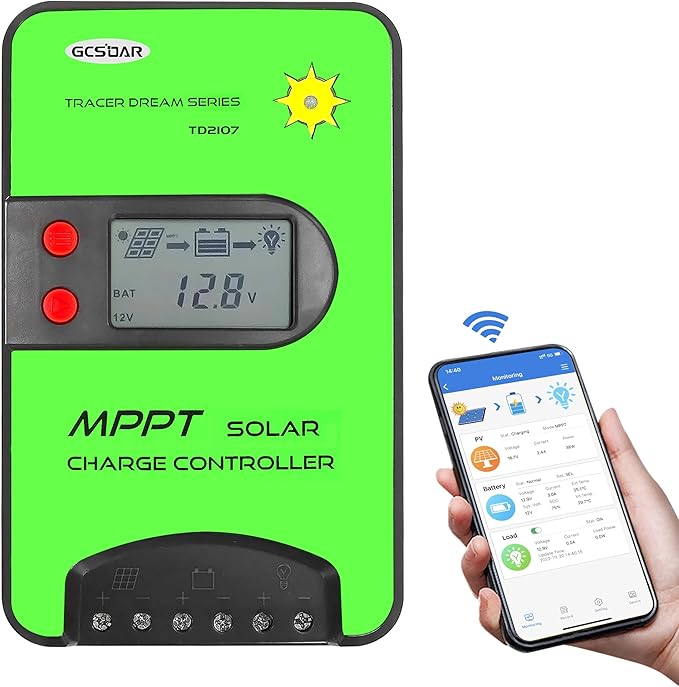

GCSOAR MPPT Solar Charge Controller 15A,12V 24V DC auto, Max PV 75V, Built-in WiFi module via APP remote control, monitor and set parameters.

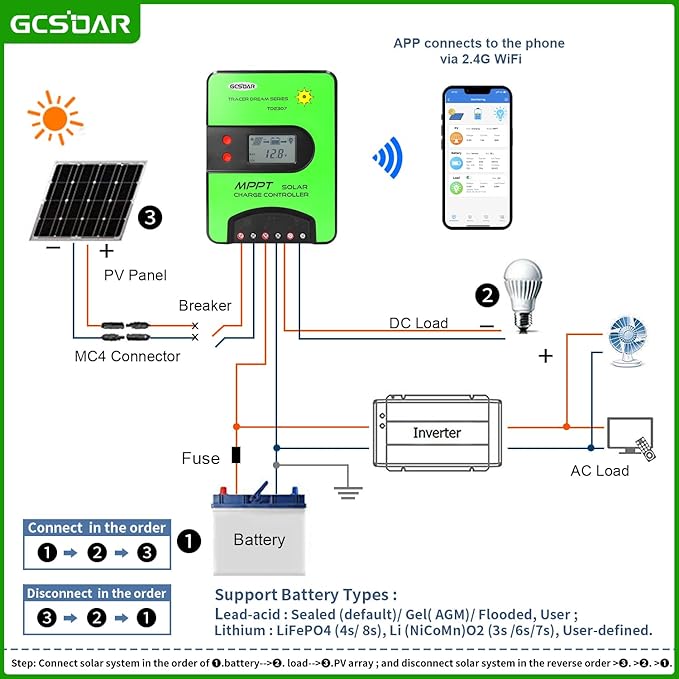

Connection Steps: Connect solar system in the order of 1.battery--> 2. load--> 3.PV array ; and disconnect solar system in the reverse order 3. 2. 1.

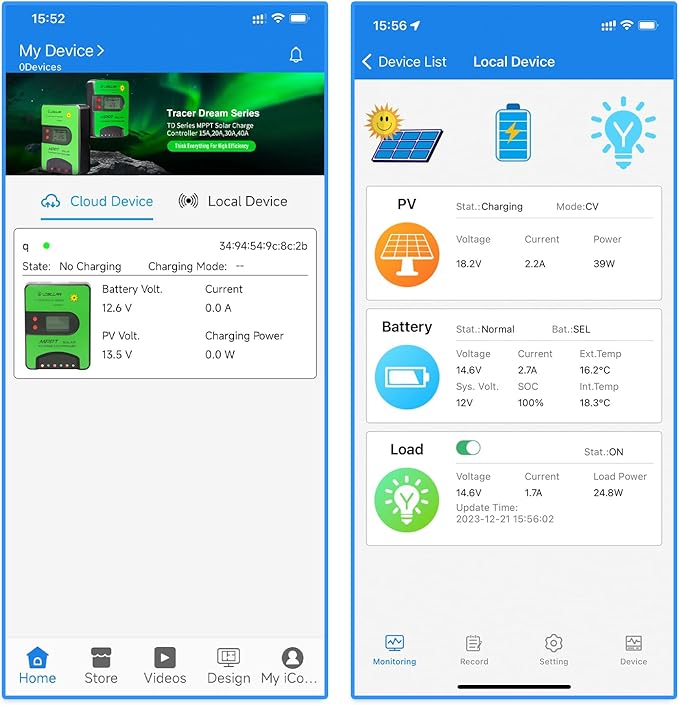

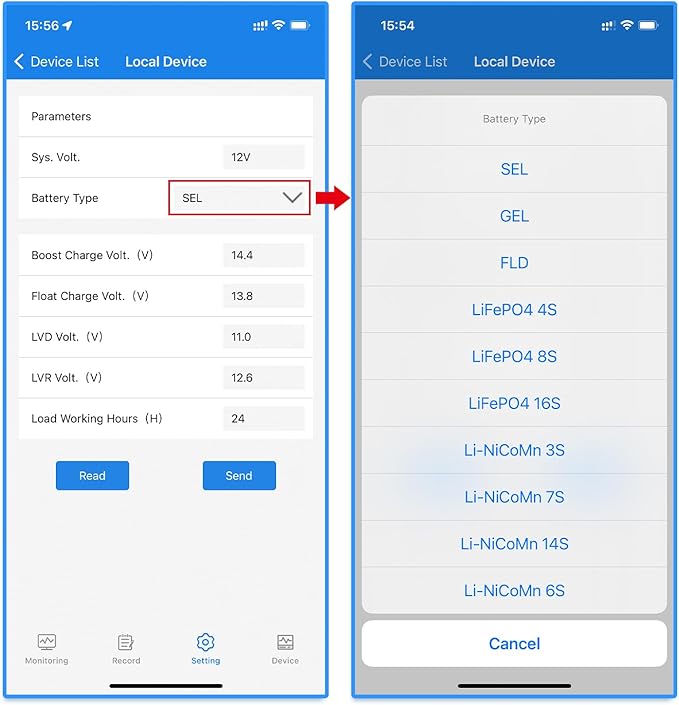

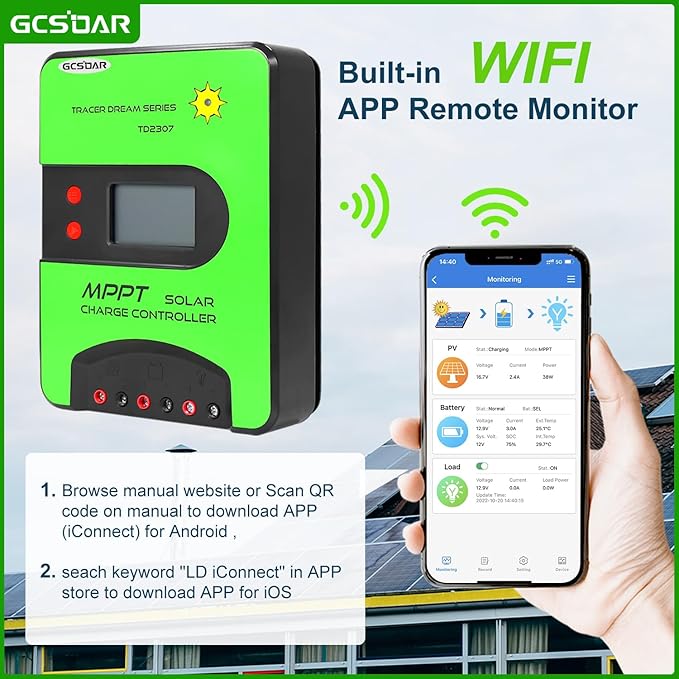

Built-in WiFi module to realize APP(iConnect) remote control monitoring and setting parameters.

please watch listing video tutorials about how to use the controller and how to remote control via APP. More queries please feel free to Q&A GCSOAR.

Package List:

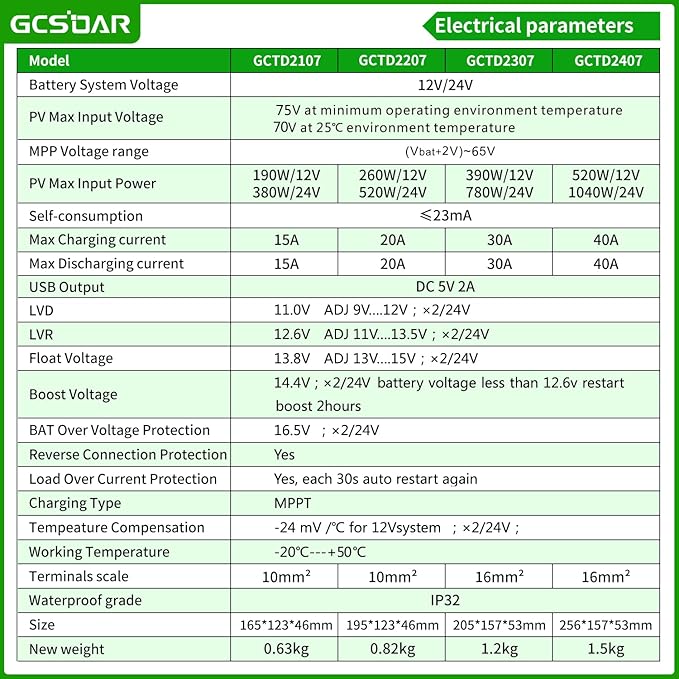

Technical Data:

IOT mode: suitable for home router 2.4G WiFi or other environments that can provide 2.4G wireless network access, when there is network signal, APP can be used without distance limitation, and you can remotely monitor or adjust the parameters anytime anywhere

When the controller enters sleep mode, please manually activate the WiFi module
