1500W-4500W Wind Turbine MPPT Charge Controller 12V 24V Auto 48V MPPT Wind Wind Controller for Lithium Battery Solar Panels Or Wind Generator

- [STABLE PERFORMENCE]: The rectification and braking circuit part of the controller adopts a modular design to enhance heat dissipation and improve overall performance. - [MATERIAL: Robust Safety Features]: Safety is , and this wind Charger controller does not disappoint. With built-in protections against overcharging, discharging, and reverse connections, you can have peace of mind knowing your battery is shielded from potential damage. - [MAIN FUNTION]: Control the wind turbine to automatically the battery, make it brake when the battery is full, and resume charging when the battery voltage drops. - [LEVEL]: The controller adopts a fully sealed design, with IP67 level, can be used in harsh environments, with good stability and high reliability. - [CONVENIENCE]: The wind turbine controller has a compact size, ensures simple wiring and convenient operation, and has a wide range of applications.

Product description

48V,1500W-4500W Wind Turbine MPPT Charge Controller 12V 24V Auto 48V MPPT Wind Wind Controller for Lithium Battery, Solar Panels Or Wind Generator

Application:

Specification:

Wiring:

Indicator status:

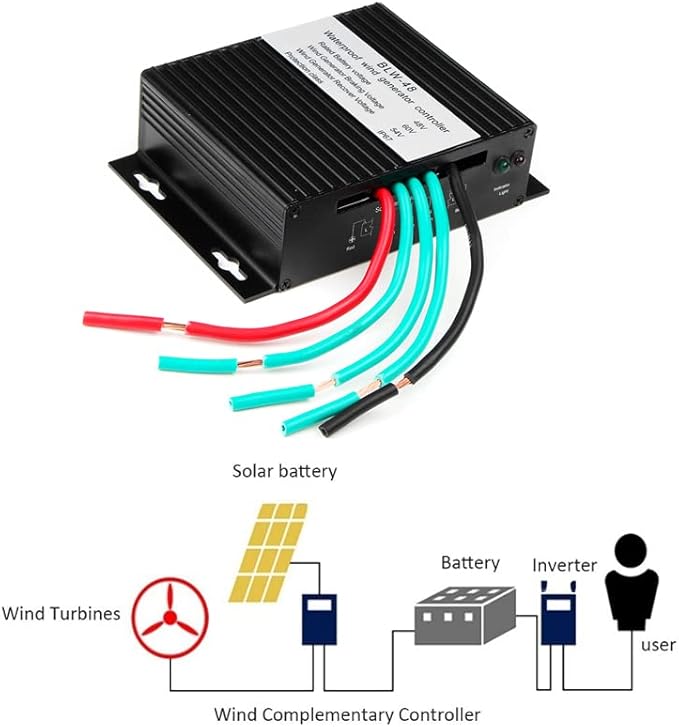

This waterproof wind generator controller is widely utilized in wind power generation systems. It is suitable for being matched with wind turbines, batteries (compatible with voltages like 24V, 48V as specified), and related wind energy equipment.

It plays a vital role in regulating wind energy conversion, preventing battery overcharge, and ensuring the stable operation of wind power systems.

It is ideal for applications such as residential off - grid wind power installations, small - scale wind energy projects, and other scenarios that require wind energy management.

1. Connect the “+” and “-” of the battery to the positive and negative terminals of the battery of the controller.

2. Connect the three-phase output voltage of the wind turbines to the three-phase voltage input terminal of the controller fan.

3. When manual brake is required, short the red thin wire to the positive battery, that is, complete the manual brake function. To cancel this function, just disconnect the thin red wire.

- When the controller green power (BATTERY) indicator is on, it indicates that the battery is connected properly.

- When the controller's green fan access (WIND) indicator flashes, it indicates that the wind turbines is connected. The speed of the flashing reflects the speed of the fan.

- When the controller red (BRAKE) indicator is on, the battery is fully charged, the wind turbines is automatically braked, or the brake is automatically activated due to overcurrent protection.
