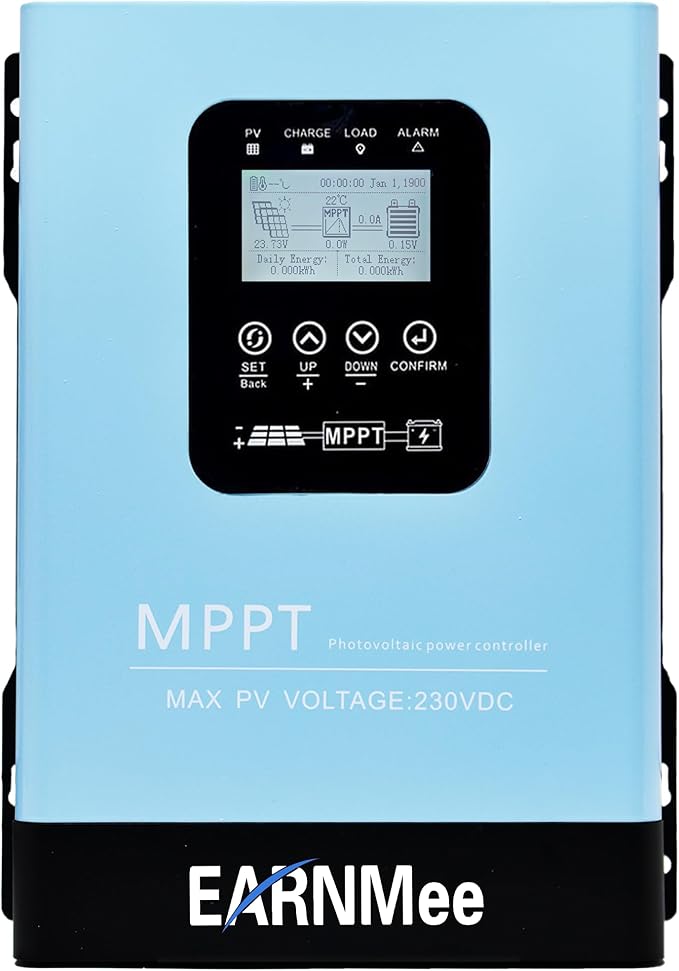

120A MPPT Solar Charge Controller12V 24V 36V 48V 60V 72V 84V 96V Solar Battery Regulator PV Max 230V for Sealed Lead Acid Gel and Lithium Battery (120A)

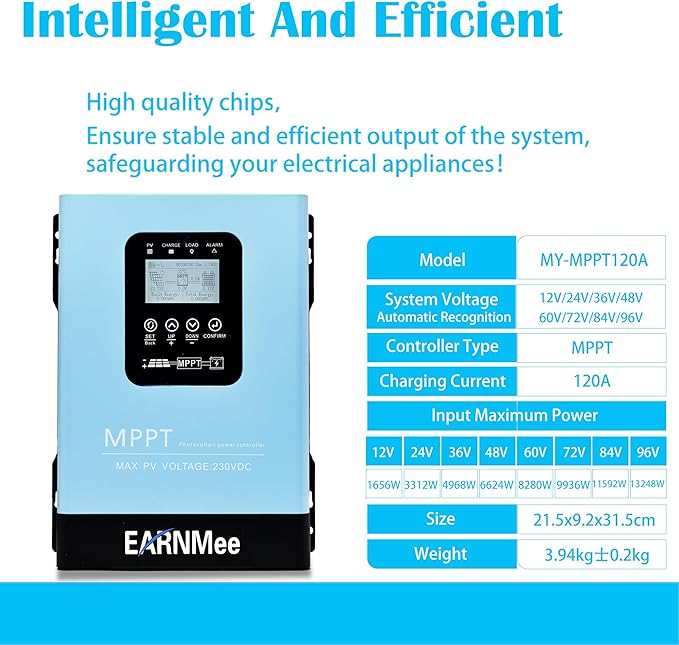

- 【Technical parameters】EARNMee 120A solar charge controller can automatically detect system voltage.12V battery:PV max 1440W;24V battery:PV max 2880W;36V battery:PV max 4320W;48V battery:PV max 5760W;60V battery:PV max 7200W;72V battery:PV max 8640W;84V battery:PV max 10080W;96V battery:PV max 11520W;PV input voltage (VOC) up to 230V. - 【Compatible with multiple battery types】The solar controller is compatible with 12V/24V/36V 48V/60V/72V/84V/96V lithium-ion and lead-acid batteries, including GEL, LiFePO4, Li-ion, user. Wide coverage of battery voltage, whether it is as low as 12V or as high as 96V battery type, can be perfectly adapted. Extremely versatile, it can realize multi-purpose use and fully meet the requirements of different stages and various scenarios. - 【Advantages】 MPPT controller is equipped with full power input function to provide stable and sufficient power for the equipment, which has obvious advantages in high-power and complex power demand scenarios. - 【Multiple Protection】Solar voltage regulator has overcharge protection, overcurrent protection, overheating protection, short circuit protection.Lithium battery activation can effectively activate lithium batteries that may be in a low-activity state and restore them to a good working condition, thus extending the service life of lithium batteries. - 【Quality check, after-sales service】We will quality check all MPPT Solar Charge Controller before shipment to make sure you receive the product in good condition. The package includes 1*MPPT solar charge controller, 1*User manual. Backed by our 24/7 technical support team - Email us for immediate assistance with installation or troubleshooting - The RJ12 interface enables communication with devices via RS485 to retrieve MPPT data. The unit features labelled A-B wiring; please connect wires according to these markings and establish communication (note that printing errors may occasionally reverse the AB wires). Should specific MODBUS commands be required, please contact the seller.

Product description

Basic Function:

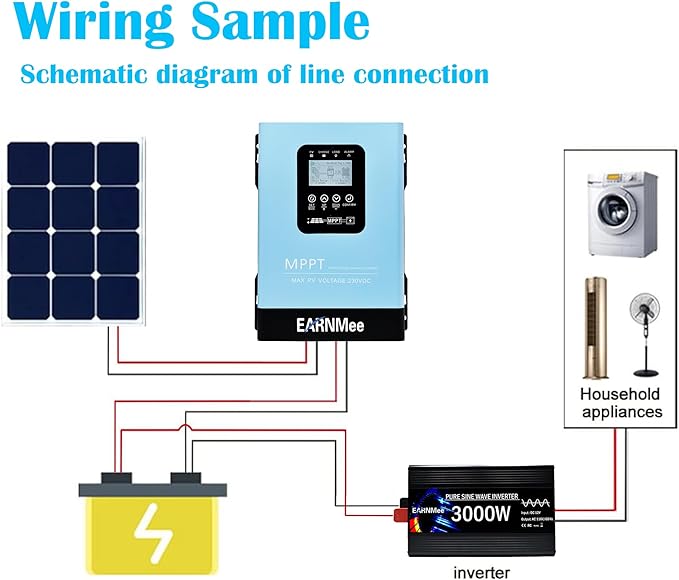

note：Controller adjustment must be matched with the battery type, solar panel maximum voltage input 230V, battery and inverter input volts should be the same.

Our MPPT supports custom charging methods, allowing users to set their own charging voltage, float charging voltage, charging current, and more.

Steps for setting output current/voltage: Set up - Battery Type Settings - Custom

attery type - lead-acid batteries：Automatic recognition for 12V/24V/36V/48V/60V/72V/84V/96V

Battery type-lithium batteries：Manual setting for 12V/24V/48V/60V/72V/84V/96V

12V MPPT solar controller：Applicable to low-power scenarios like solar street lights, garden lights, small household power systems, communication base stations. Advantages: Low voltage for high safety, simple circuit, favorable price, and compatible solar panels/batteries are common and easy to replace.

24V MPPT solar controller：Used in off-grid systems with slightly higher power demands (RVs, ships, small PV plants) and for powering multiple 12V devices (e.g., small monitoring systems). Advantages: Smaller current, lower line loss at same power, supports higher-power loads, high efficiency, and compatible with 12V devices (via series connection/step-down modules).

48V MPPT solar controller：Suitable for small-to-medium commercial solar systems (power for small malls/offices) and off-grid industrial equipment (power for some devices in small factories). Advantages: Supports high-power solar panels/loads for large off-grid systems, smaller current, lower line loss, suitable for long-distance transmission, and high overall efficiency.

96V and above high voltage MPPT solar controller：

Applicable scenarios: Mainly used for large-scale solar power generation and energy storage projects such as large-scale photovoltaic power stations, photovoltaic energy storage systems, and smart microgrids.

Advantages: It can connect more solar panels to form a larger scale power generation system, improving overall power generation efficiency and power output; It has obvious advantages in long-distance transmission and large-scale energy storage, which can reduce transmission costs and improve system stability.
