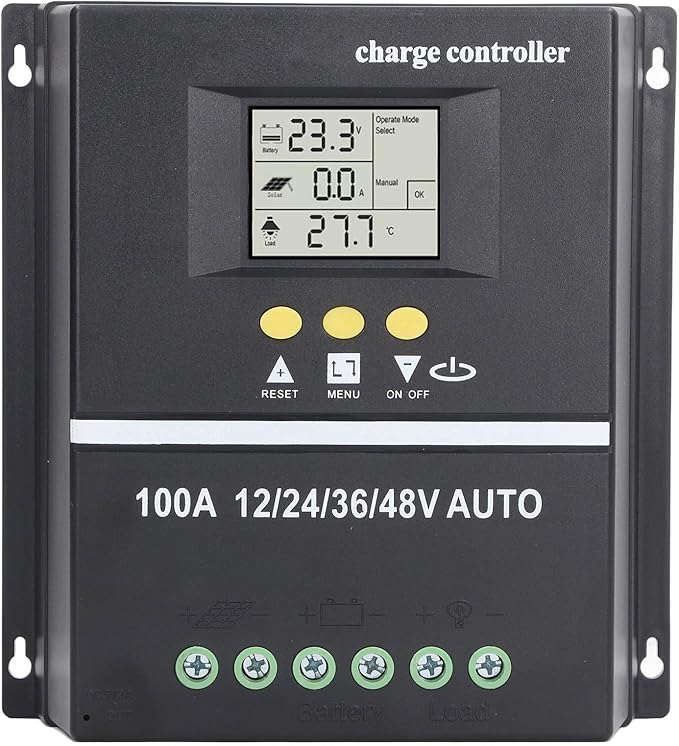

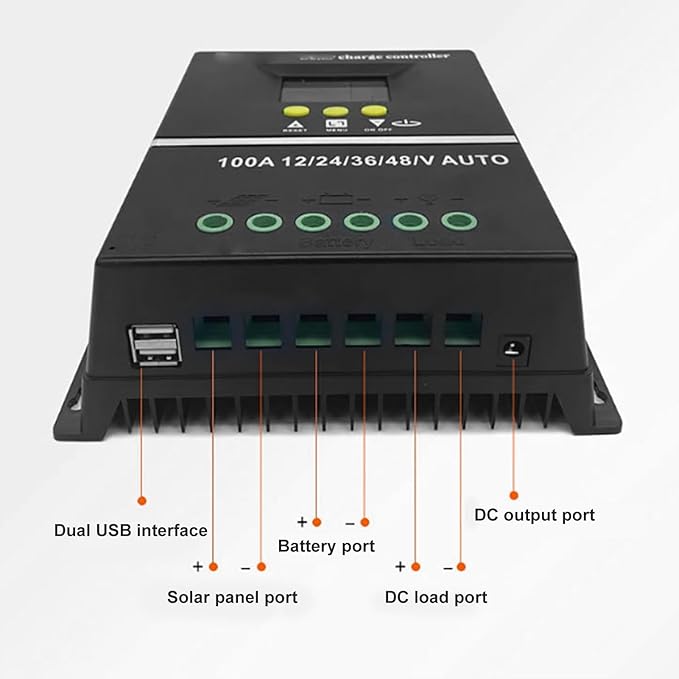

100A MPPT Solar Charge Controller Solar Panel Regulator 12V/24V/36V/48V Dual USB Ports Overload Temp Protection with 7 Work Modes for Gel Flooded LifePO4 Battery Charging

- MPPT TECHNOLOGY: 100A MPPT solar controller, using advanced MPPT maximum power point tracking technology algorithm, 12V, 24V, 36V, 48V automatic identification; USB 5V charging ports can quickly track the maximum power point of PV system in any environment, and the tracking efficiency is not less than 99.5%. Significantly improved the energy utilization efficiency of solar systems. - MULTIFUNCTIONAL DESIGN: A multifunctional LCD with backlight display and clock display, with 7 working modes, charging mode, light control mode, light, delay control mode, universal control mode, manual control mode, and timing control mode. - SAFETY VOLTAGE : MPPT solar controller with voltage , including battery overvoltage and overcurrent , power failure , overcharging , deep discharge , reverse connection , and overheating temperature . - USER FRIENDLY DESIGN: LCD displays are designed to dynamically display the operating data and working status of devices. Controller parameter display (working mode, battery voltage, photovoltaic charging current, battery discharge current, product operating temperature, delay time). - MULTIPLE BATTERY CHARGING OPTIONS: Compatible with for GEL, for Flooded, and for LifePO4 battery charging.

Product description

Features

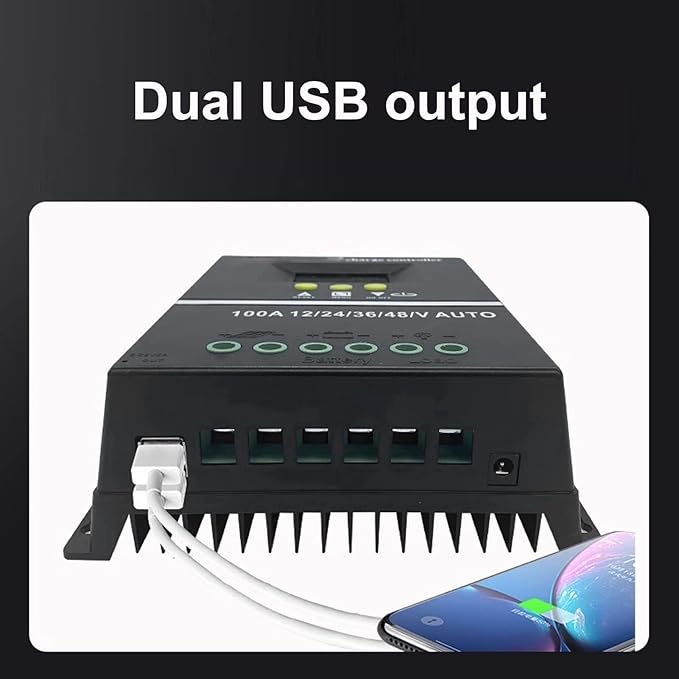

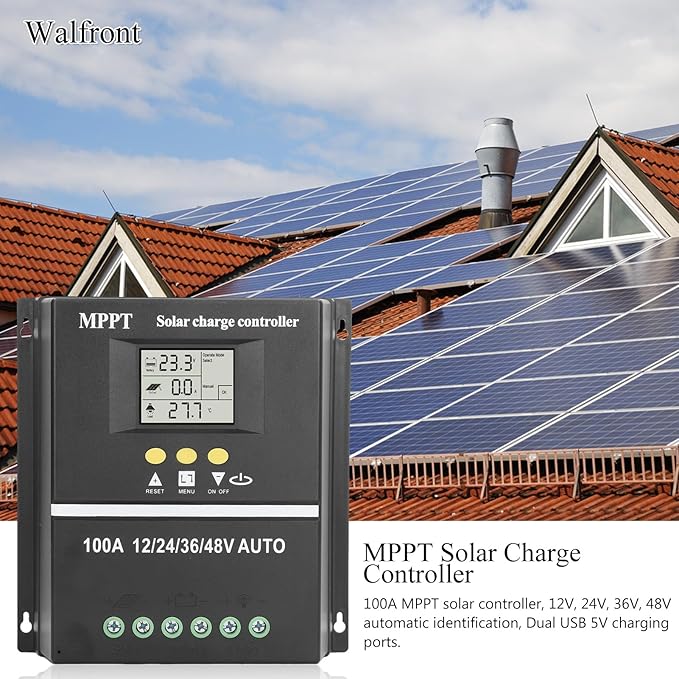

MPPT TECHNOLOGY: 100A MPPT solar controller, using advanced MPPT maximum power point tracking technology algorithm, 12V, 24V, 36V, 48V automatic identification; Dual USB 5V charging ports can quickly track the maximum power point of PV system in any environment, and the tracking efficiency is not less than 99.5%. Significantly improved the energy utilization efficiency of solar systems.

MULTIFUNCTIONAL DESIGN: A multifunctional LCD with backlight display and clock display, with 7 working modes, charging mode, light control mode, light, delay control mode, universal control mode, manual control mode, and timing control mode.

SAFETY VOLTAGE PROTECTION: MPPT solar controller with voltage protection, including battery overvoltage and overcurrent protection, power failure protection, overcharging protection, deep disprotection, reverse connection protection, and overheating temperature protection.

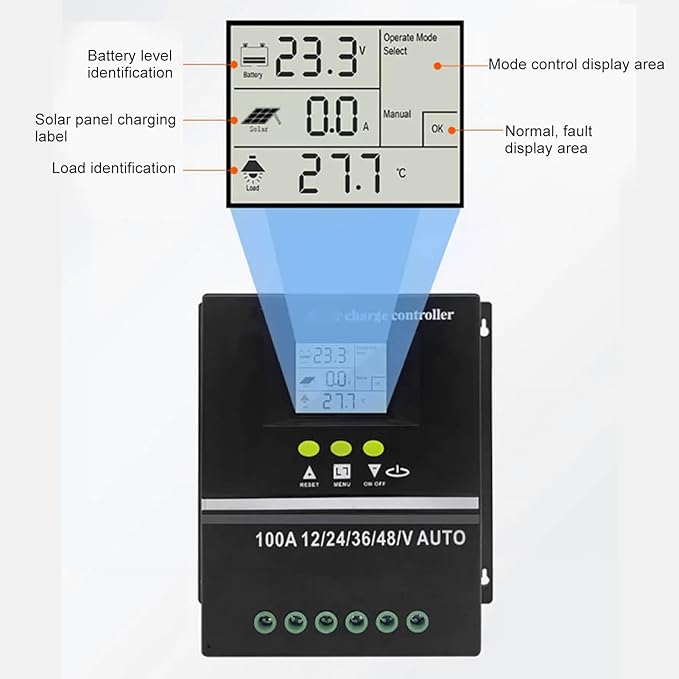

USER FRIENDLY DESIGN: LCD displays are designed to dynamically display the operating data and working status of devices. Controller parameter display (working mode, battery voltage, photovoltaic charging current, battery discurrent, product operating temperature, delay time).

MULTIPLE BATTERY CHARGING OPTIONS: Compatible with for GEL, for Flooded, and for LifePO4 battery charging.

Specification

Item Type: Solar Controller

Material: ABS

Rated Current: 100A

Maximum Solar Input (Voc): 15-23V (12V battery); 30-45V (24V battery); 45-69V (36V battery); 60-90V (48V battery)

Maximum Photovoltaic Input Power: 1200W (12V battery); 2400W (24V battery); 3600W (36V battery); 4800W (48V battery)

Package List

1 x Controller

How to Use

1. Charging Method: Under no circumstances shall disbe allowed.

2. Light Control Mode: When the controller detects night, it will delay for ten minutes and then start discharging; When it detects daytime, it will delay for ten minutes and then stop discharging.

3. Light and Delay Control Mode: When the controller detects night,the controller will delay for ten minutes before starting to disand countdown (if the timer stops at 0), The diswill stop. The maximum delay time is 23:59.

4. General Control Method: Always maintain diswithout any faults.

5. Manual Control Mode: Use " " to check whether to discharge.

6. Timing Control Method: Regularly turn on or off the discharge.

7. Test Mode: Same as the lighting and delay control modes, but only loses ten minutes of delay.

8. The controller still discharges under low voltage protection. The touch screen " " lasts for 5 seconds, and the discontinues to output.
