100A MPPT Solar Charge Controller 12V/24V/36V/48V Auto Max 150V PV Input 5000W Max Power Regulator w/ LCD Display Works with AGM Gel Flooded Lithium Batteries

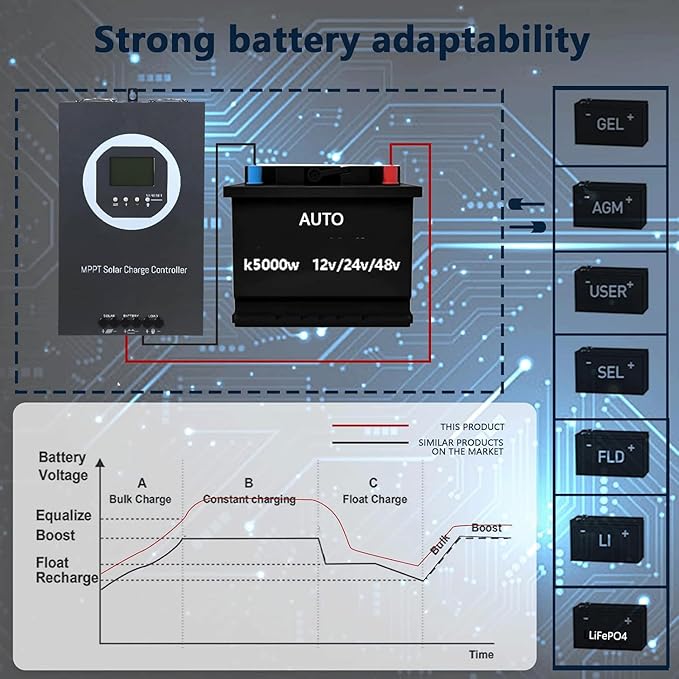

- 【Support various types of batteries】Compatible with many types of 12/24/36/48V batteries, such as Lead-acid battery, Sealed battery, Gel battery, AGM battery, Flooded battery, Lithium battery. - 【Efficient 100A MPPT Solar Charge Controller】The 100A mppt solar charge controller is compatible with 12V/24V/36V/48V system voltages and features innovative MPPT (Maximum Power Point Tracking) technology with tracking efficiencies up to 99% and peak conversion efficiencies up to 98%. - 【Full battery charging protection】Built-in PV array short-circuit protection, PV input over-current protection, load short-circuit protection, PV polarity reversal protection, battery polarity reversal protection, over-temperature protection and many other battery protection functions make it safer to use. - 【Wide Range Voltage/Powe Support】100a solar charge controller supports High PV Input Power/Voltage. The charger controller can accept Solar voltage up to 150V. When the battery is 12V system: Suggest Solar power 1200W, suggest pv input voltage range: DC20V~DC80V; 2400W 37~105V when in 24V; 3600W 50~150 when in 36V; 4800W 72-150v when in 48V. - 【Dual Cooling, Efficient Heat Dissipation】The 100-amp charge controller is constructed with die-cast aluminum, ensuring excellent heat dissipation and reduced power consumption. Additionally, it features a turbofan fan for efficient cooling (activates at temperatures >45°C and turns off <40°C). The upgraded turbofan fan cooling system is quieter and more effective, making it suitable for use in RVs, commercial vehicles, boats, yachts, and solar systems.

Product description

100A MPPT Technical datas

Rated charge current:100A

12V system:open circuit voltage ≤96V(Voc) maximum. PV input power:1300W

24V battery system:Open circuit voltage ≤112V(Voc) maximum.PV input power:2600W

48V battery system:Open circuit voltage ≤150V(Voc) maximum.PV input power:5000W

System nominal voltage :12V/24V/36V/48V DC Auto identifying

Max.PV open circuit voltage:150VDC

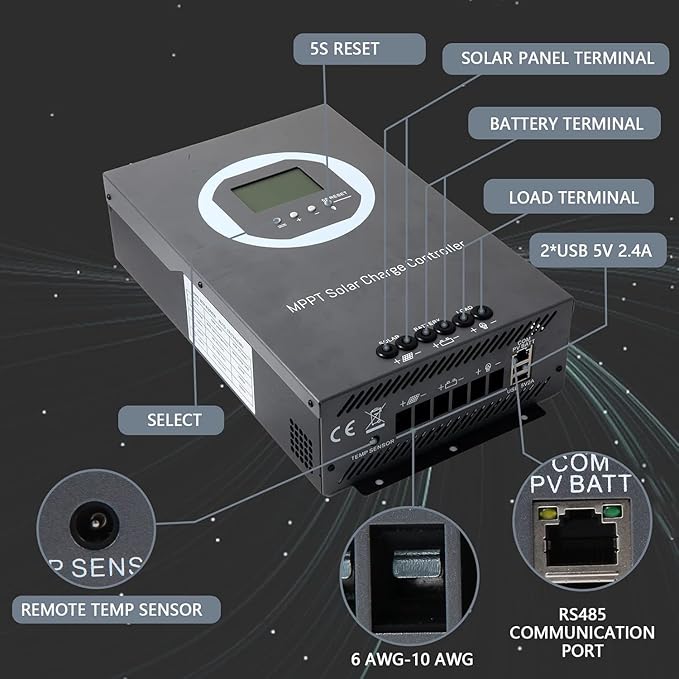

Power terminal:10 AWG

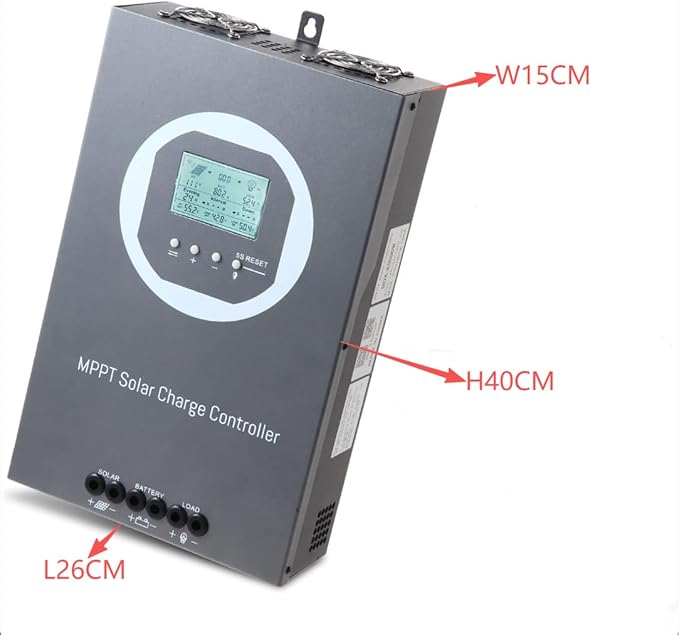

Dimension: 12*7.8*3.2（in）

Weight : 9.5(LB)

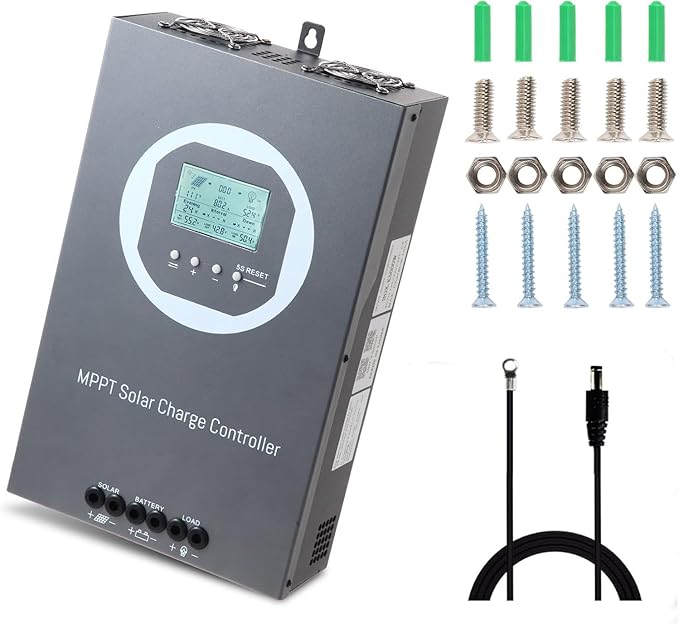

Package List:

1 x 100A MPPT Solar Charge Controller

1 x Temperature sensor

1 x User Manual (English)

100A MPPT Solar Charge Controller , 12V/24V/36V/48V Auto Work

100A mppt solar charge controller is new upgrade version，Better funcations and advanced technology .

Added Features:

Blacklight LCD Display

The display directly shows the amount of charge: KWH, without the need for other measuring instruments

Two new vents are added for scientifically designed convection cooling.

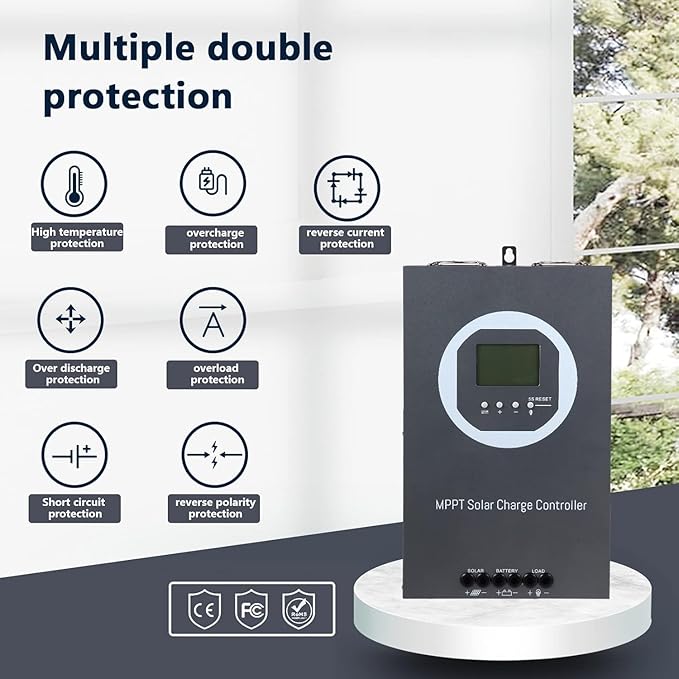

More Safety Protection

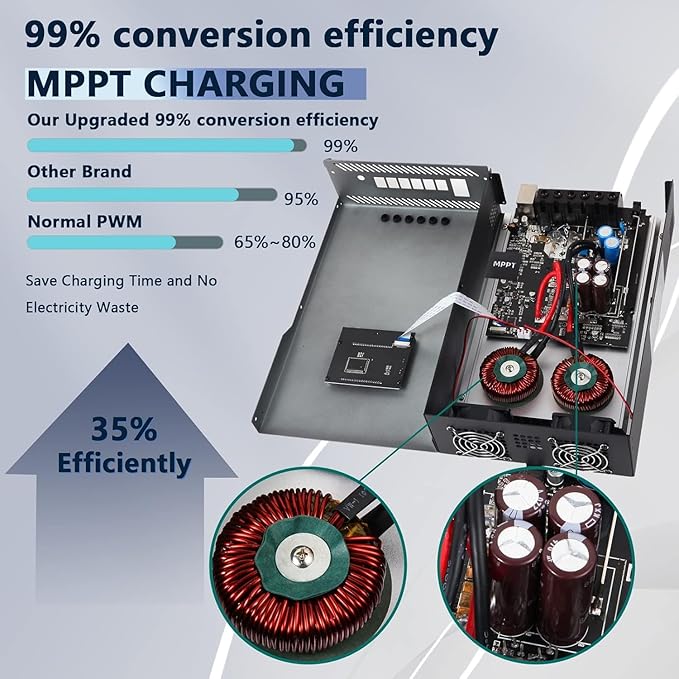

Maximum DC/DC transfer efficiency is as high as 98.7%
